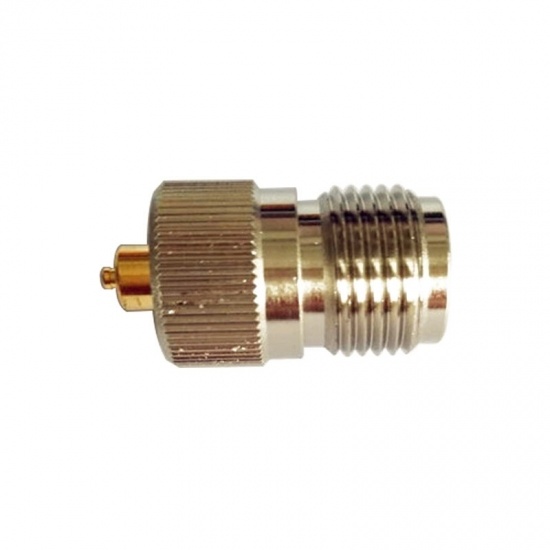

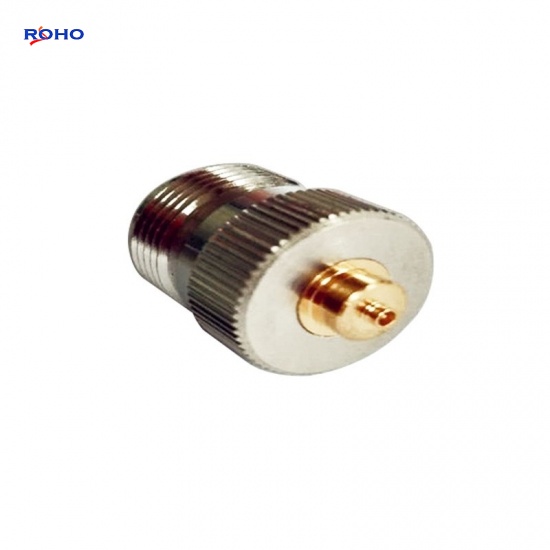

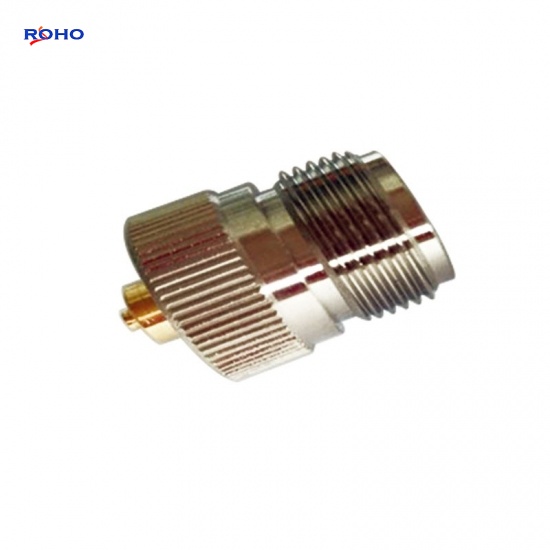

N Female to UFL IPEX Jack Straight RF Coaxial Connector Adapter
The N Type Adapter has N to UFL standard polarity adapter gender. The N to UFL adapters has female to jack or male to jack gender. ROHO's N to QN standard polarity adapters are available in standard interfaces; it has 50ohm impedance standard polarity. This N female to QN jack adapter has a maximum frequency of 6GHz, and is a straight RF adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | N-Type |
| Adapter Side 1 Style | Female |
| Adapter Side 2 Series | UFL/IPEX/MHF |
| Adapter Side 2 Style | Jack |
| Frequency (Max GHz) | 6 |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material | Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Base stations
- Broadcast systems
- Radar equipment
- Microwave Radio
- Outdoor antennas
- Wireless LAN
- Satellite systems
- Surge protection
