N Type Cable Assemblies

N Male to RP SMA Male Connector Cable Assembly with RG58 Cable

Type Cable assembly Features:

  • Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

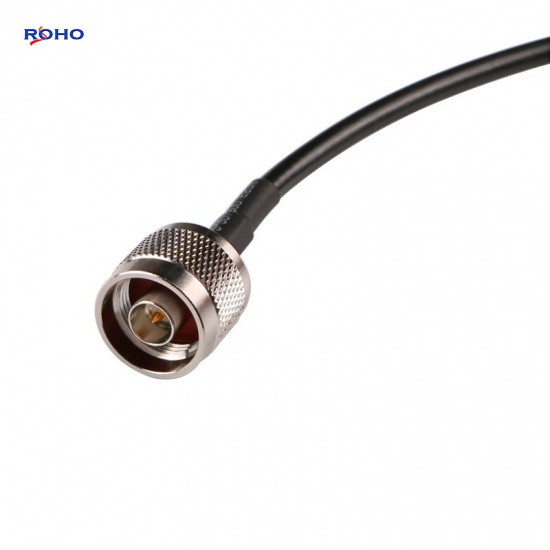

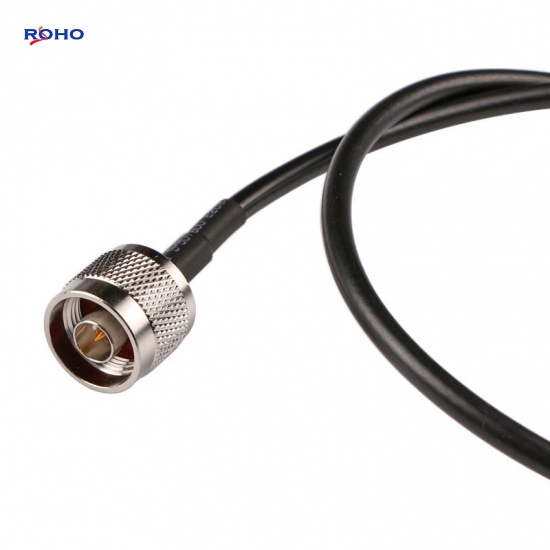

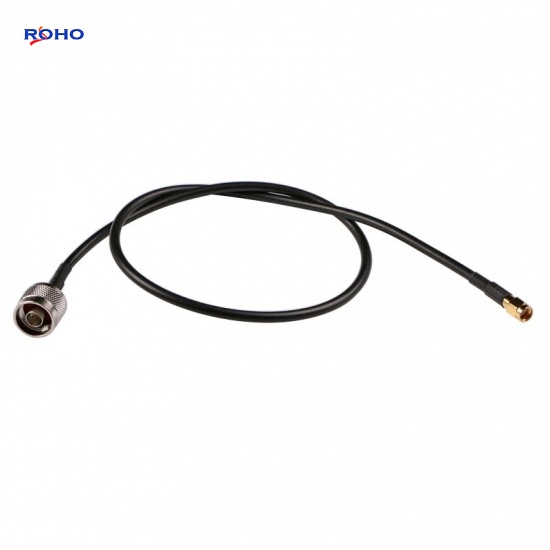

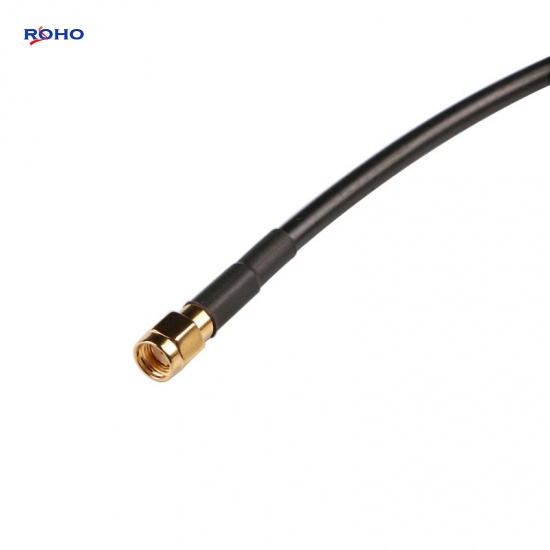

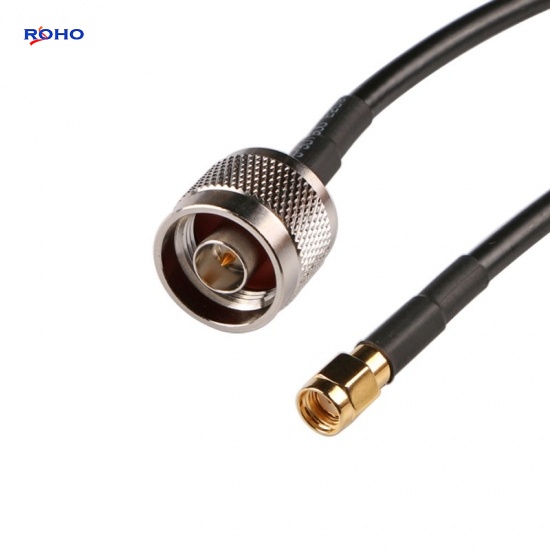

N Male to RP SMA Male Connector Cable Assembly with RG58 Cable



The Type N cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as 1/2" Helical, 1/2" Superflexible, 1/4" Superflexible, LMR195, LMR240, LMR400, LMR600, RG11, RG141, RG142, RG174, RG178, RG179, RG187, RG188, RG213, RG214, RG217,RG218, RG223, RG225, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG6, RG62, RG8 or TFT402 cable; the body of Type N to SMA cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This N male to RP SMA male cable assembly uses a 50ohm straight type N for connector 1 and a 50ohm straight Reverse Polarity SMA for connector 2, Cable is 50ohm cable type RG58.



Specifications

ELECTRICAL DATA
Connector 1 Series N Type
Connector 1 Style Str Male
Cable Type RG58
Connector 2 Series RP SMA
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • WLAN
  • Base Stations
  • Satellite Systems
  • Instrumentation
  • Antennas
  • Radar Systems
