N Type Cable Assemblies

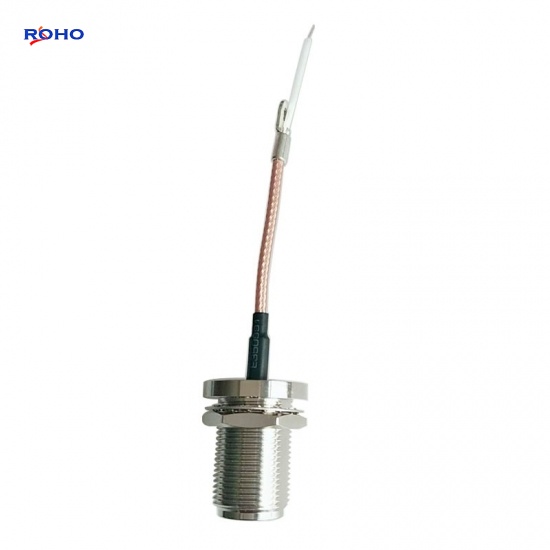

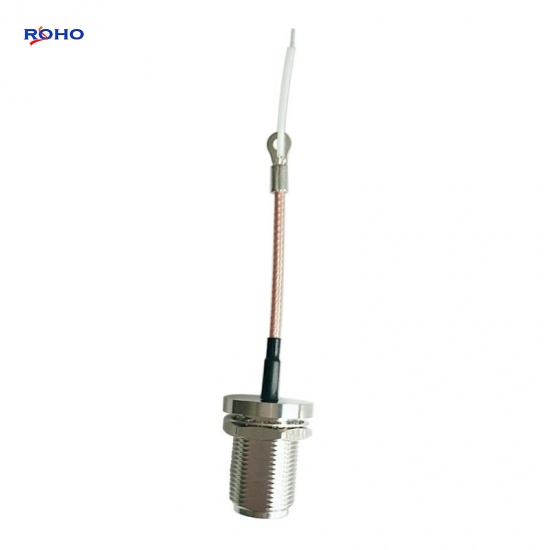

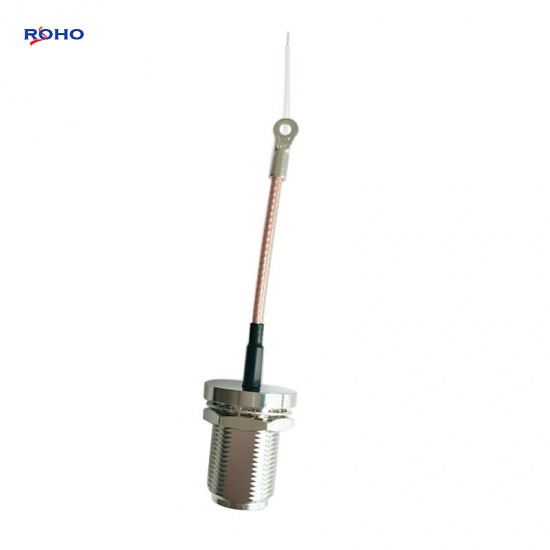

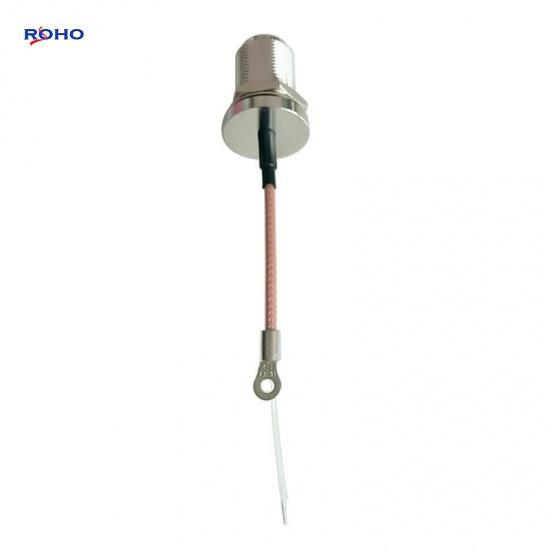

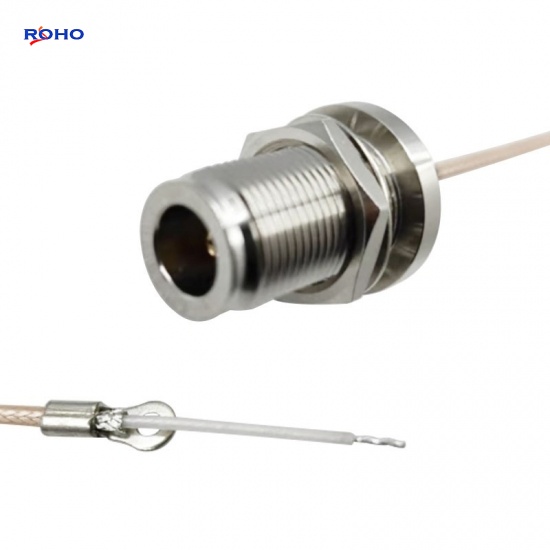

N Bulkhead Female with RG316 Cable and Ring Terminal Assembly

Type Cable assembly Features:

  • Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

N Bulkhead Female with RG316 Cable and Ring Terminal Assembly



The Type N with cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as 1/2" Helical, 1/2" Superflexible, 1/4" Superflexible, LMR195, LMR240, LMR400, LMR600, RG11, RG141, RG142, RG174, RG178, RG179, RG187, RG188, RG213, RG214, RG217,RG218, RG223, RG225, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG6, RG62, RG8 or TFT402 cable; the body of Type N with cable assembly is right angle or straight connectors which is female with cable or male with cable. ROHO's type N with cable assembly is a low PIM cable, This N female with cable assembly uses a 50ohm straight type N for connector 1 and cable is 50ohm RG316 cable.



Specifications

ELECTRICAL DATA
Connector 1 Series N Type
Connector 1 Style Str Female
Cable Type RG316
Connector 2 Series -
Connector 2 Style -
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 11 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • WLAN
  • Base Stations
  • Satellite Systems
  • Instrumentation
  • Antennas
  • Radar Systems



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
N Male to N Male Cable assembly
Straight RF Coaxial N Male to N Male Plug Connector with RG316 Cable Assembly
N Type Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.
N Female to Cable Holder Cable Assembly
N Type Female Bulkhead to Cable Holder Connector Cable Assembly with .141 Semi-Rigid Cable
N Type Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.

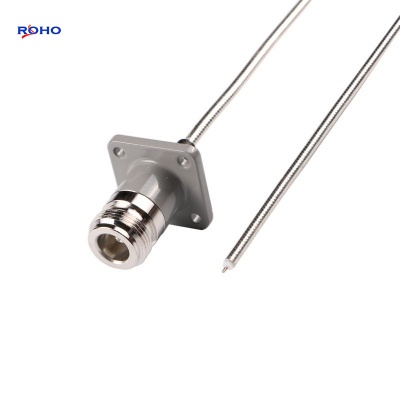

N Female 4 Hole Flange 086 Cable Assembly
4 Hole Flange Waterproof RF Coaxial N Female with Semi Steel .086 Cable Assembly
N Type Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.
Right Angle N Male to TNC Male LMR195 Cable Assembly
New RF Coaxial Right Angle N Male to TNC Male Connector with LMR195 Cable Assembly
N Type Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.
N Bulkhead Female 086 Cable Assembly
RF Coaxial N Bulkhead Female with .086" Cable Assembly
N Type Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, BNC, F, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC or UHF connector; Body Can be 4 hole panel, bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use corrugated, flexible, formable or semirigid cable.

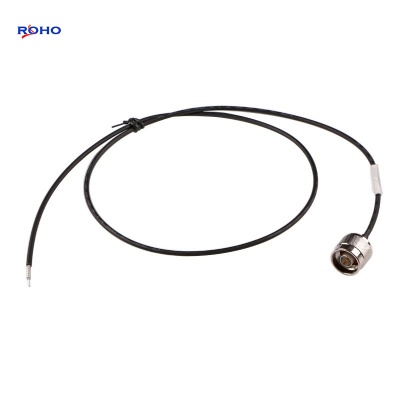

N Male RG58 Cable Assembly
