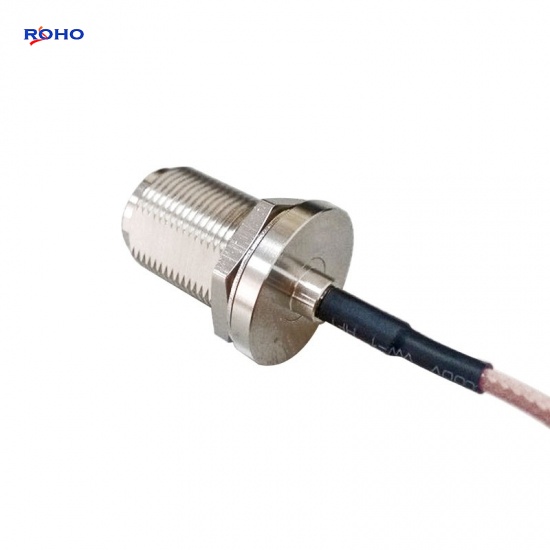

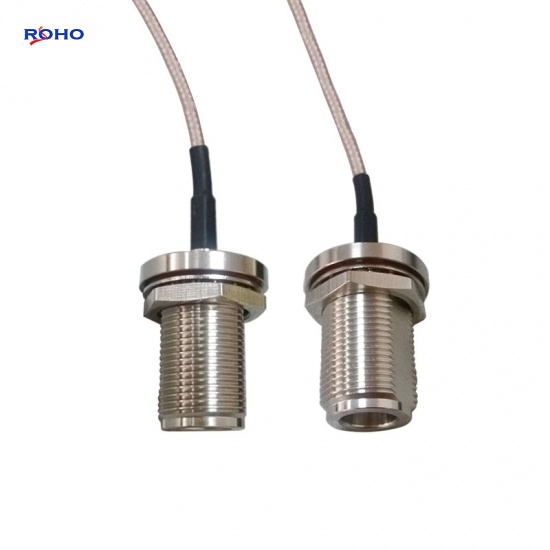

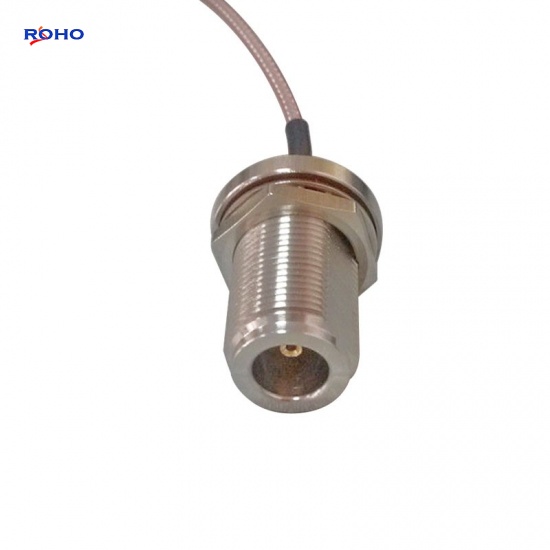

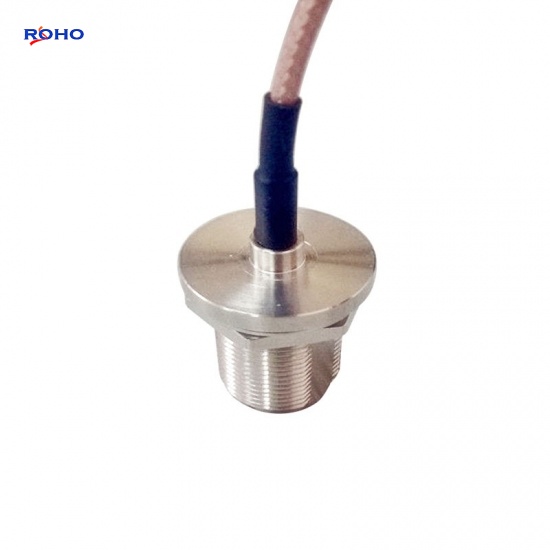

Straight RF Coaxial N Female to N Female Jack Connector with RG316 Cable Assembly
The Type N cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as 1/2" Helical, 1/2" Superflexible, 1/4" Superflexible, LMR195, LMR240, LMR400, LMR600, RG11, RG141, RG142, RG174, RG178, RG179, RG187, RG188, RG213, RG214, RG217,RG218, RG223, RG225, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG6, RG62, RG8 or TFT402 cable; the body of Type N to type N cable assembly is right angle or straight connectors which is female to female, male to female or male to male gender. This N female to N female cable assembly uses a 50ohm straight type N for connector 1 and a 50ohm straight type N for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | N Type |
Connector 1 Style | Str Female |
Cable Type | RG316 |
Connector 2 Series | N Type |
Connector 2 Style | Str Female |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | Yes |
Max Frequency | 11 GHz |
Working Temperature | -65°C to +165°C |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- WLAN
- Base Stations
- Satellite Systems
- Instrumentation
- Antennas
- Radar Systems
