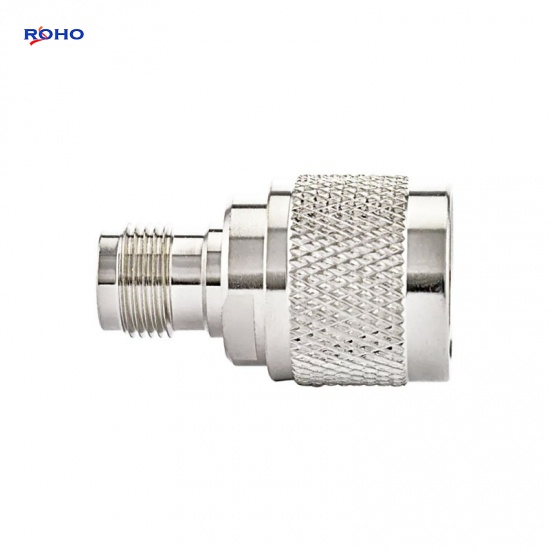

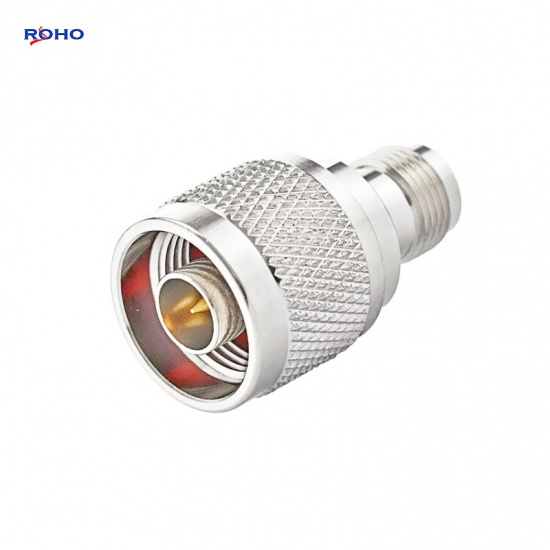

New N Male to TNC Female Straight RF Connector Adapter
The N Type Adapter has N to TNC standard polarity adapter gender. The N to TNC adapters has female to female, female to male, male to female or male to male gender, and has bulkhead, 4 hole panel or mountless configurations. ROHO's N to TNC standard polarity adapters are available in standard interfaces; it has 50ohm or 75ohm impedance standard polarity, and has straight or right angle versions. This N male to TNC female adapter has a maximum frequency of 1GHz, and is a straight RF adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | N-Type |
Adapter Side 1 Style | Plug/Male |
Adapter Side 2 Series | TNC |
Adapter Side 2 Style | Jack/Female |
Frequency (Max GHz) | 1 |
Impedance (Ohms) | 50 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material | Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material | Phosphor Bronze/Beryllium Copper |
Contact Finish | Gold/Silver |
Insulator Material | PTFE |
Applications
- Base stations
- Broadcast systems
- Radar equipment
- Microwave Radio
- Outdoor antennas
- Wireless LAN
- Satellite systems
- Surge protection
