NEX10 Connectors

NEX10 Male Low PIM Connector Solder Attachment for for 3/8'' Superflex Cable

NEX10 features

  • Can terminate to coaxial;
  • Can be male or female gender in standard polarity, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead or mount-less;
  • Attachment methods include clamp/solder, crimp/solder or solder/solder.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

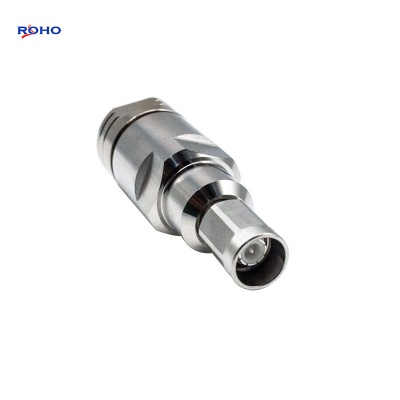

NEX10 Male Low PIM Connector Solder Attachment for for 3/8'' Superflex Cable



The NEX10 connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20GHz, the new robust and highly compact NEX10 interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation);  and frequency max up to 6GHz; this NEX10 male connector has an interface type of 3/8'' Superflex Cable and a 50ohm impedance, attachment method uses shield/contact solder/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range 6GHZ
Voltage Rating 335 Volts RMS Max Continuous
Dielectric Withstanding Voltage 500 VRMS Min
VSWR  (Return Loss)
 DC to 6 GHz DC ≥ 36 dB
6 GHz to 10 GHz ≥ 30 dB
10 GHz to 20 GHz ≥ 20 dB
PIM  ≥ 166 dBc @ 2x43dBm
Degree of Protection  IP 68 (@1 m, 24 hours)
Environmental
Temperature Range −65°C to +165°C



Applications

  • Low-power base stations
  • Small cell applications
  • Designed to meet the demands of upcoming 5G networks
  • In multi-operator/multiband DAS
  • Blind mate for panel as well as test & measurement



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products

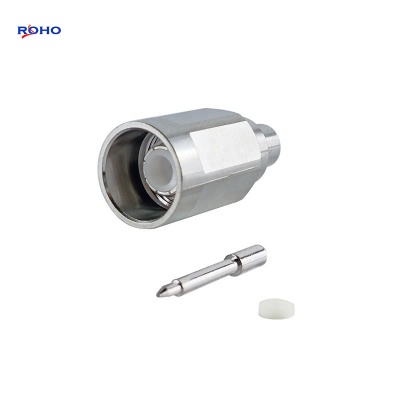

NEX10 Male RF Coaxial Connector
NEX10 Male RF Coaxial Connector 5G Network for 1/4" Coaxial Cable
Features: Dedicated sealing area on universal jack; Reusable; Self-lubricating for fast and easy installation; Safe and damage-free connecting; IP68; Supports high-density radio and antenna ports; Excellent RL performance up to 20 GHz and high screening efficiency, offering reliable electrical performance.

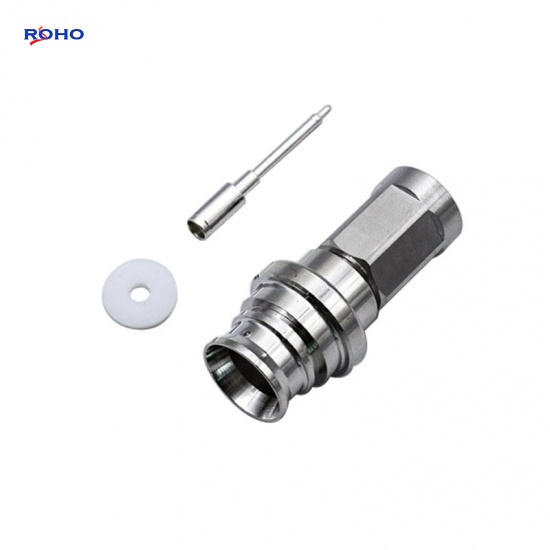

NEX10 Male RF Coaxial Connector
NEX10 Male Low PIM Connector Solder Attachment for for 1/4'' Suplerflexible Cable
NEX10 features: Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.

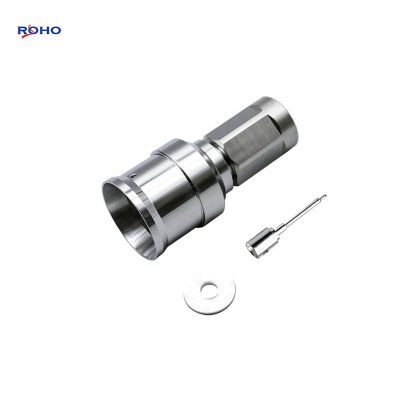

NEX10 Male RF Coaxial Connector
NEX10 Male Low PIM Connector Solder Attachment for for RG402 Cable
NEX10 features: Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.

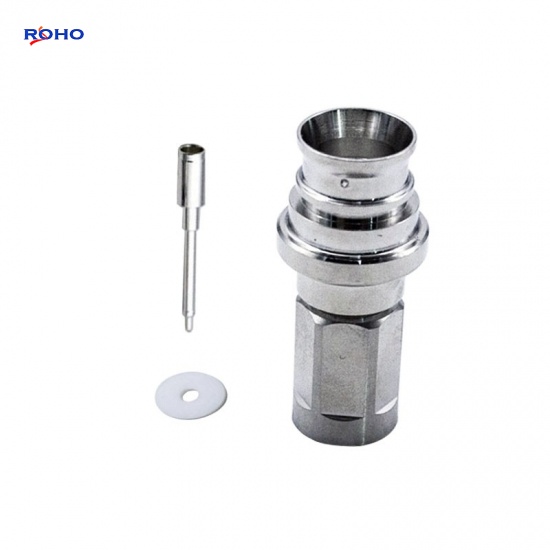

NEX10 Male RF Coaxial Connector
NEX10 Male Low PIM Connector Solder Attachment for for 1/2'' Feeder Cable
NEX10 features: Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.

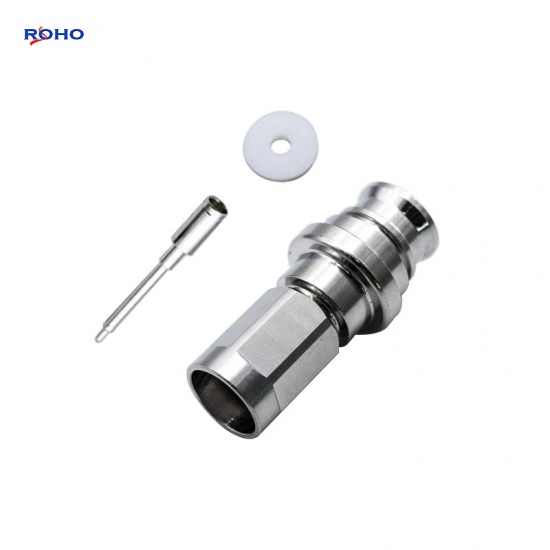

NEX10 Male RF Coaxial Connector
NEX10 Male Low PIM Connector Clamp Attachment for 3/8'' Superflex Cable
NEX10 features: Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.

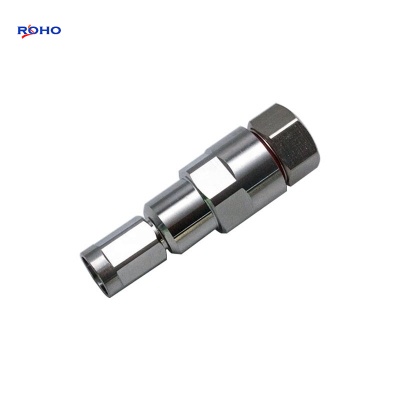

NEX10 Male RF Coaxial Connector
NEX10 Male Low PIM Connector Clamp Attachment for 1/2'' Superflex Cable
NEX10 features: Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.

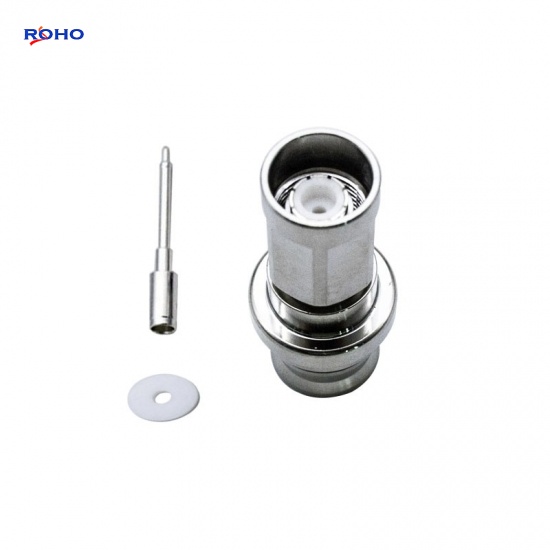

NEX10 Male RF Coaxial Connector
NEX10 Male Low PIM Connector Crimp Attachment for RG142 Cable
NEX10 features: Can terminate to coaxial; Can be male or female gender in standard polarity, with 50ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead or mount-less; Attachment methods include clamp/solder, crimp/solder or solder/solder.

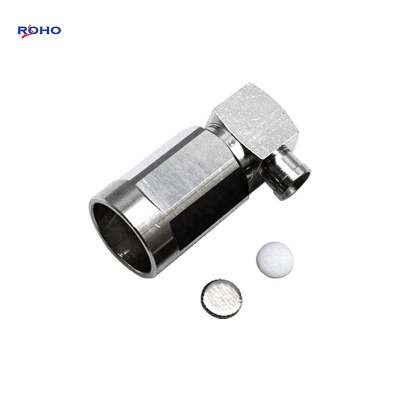

NEX10 Male RF Coaxial Connector
