Combo Antennas

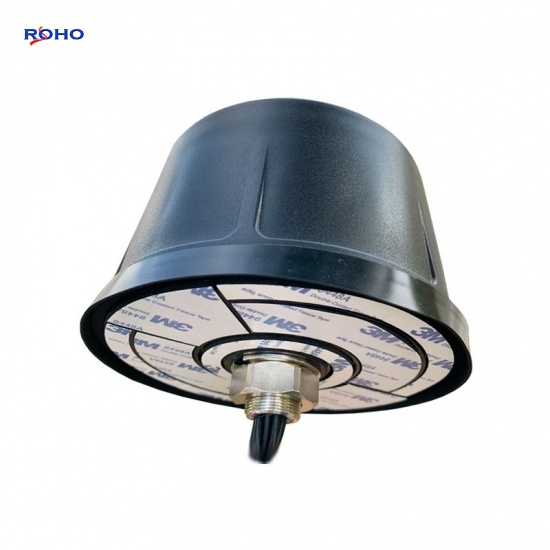

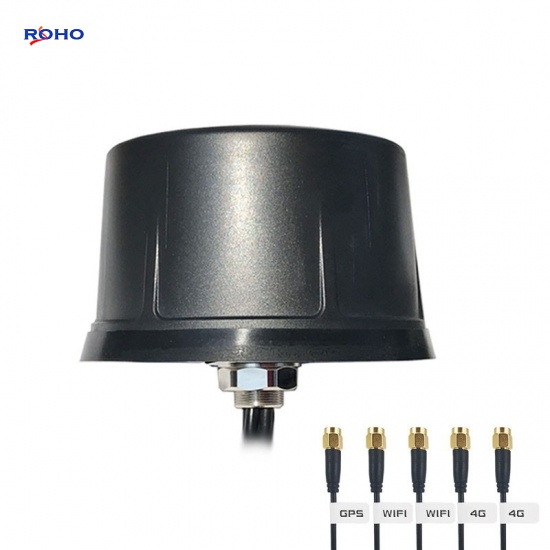

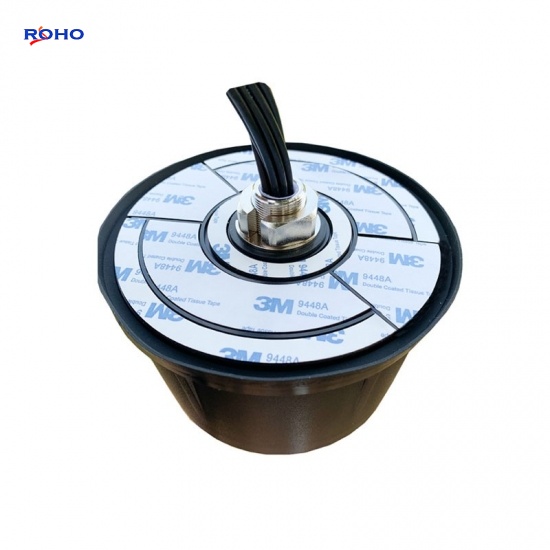

Omni Waterproof 5 in 1 Combined Antenna WIFI GPS 4G LTE Combo Antenna Screw Mount Car Antenna

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Omni Waterproof 5 in 1 Combined Antenna WIFI GPS 4G LTE Combo Antenna Screw Mount Car Antenna

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
4G/LTE Frequency Range(MHz) 698-960/1710-2700MHz
Gain(dBi) 3
WIFI Frequency Range(MHz) 2400-2483MHz
Gain(dBi) 3
GPS(GLONASS) Frequency Range(MHz) 1575.42MHz/1602-1610MHz
Gain(dBi) 28±3
VSWR  ≤1.5
Input Impedance(Ω)  50
Cable Type RG174
Connector Type  SMA Male
Mounting Screw
Housing Black
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
