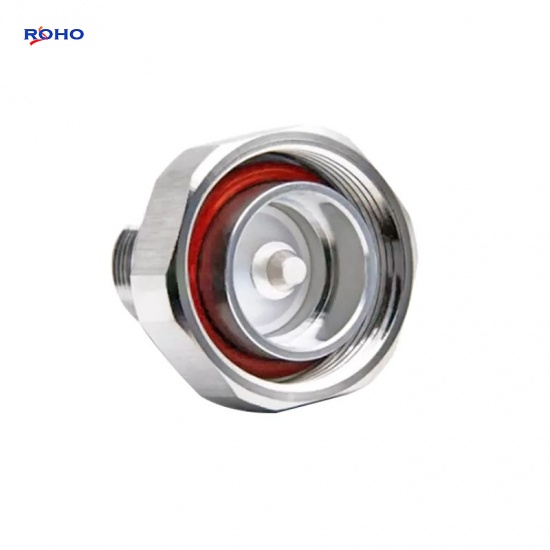

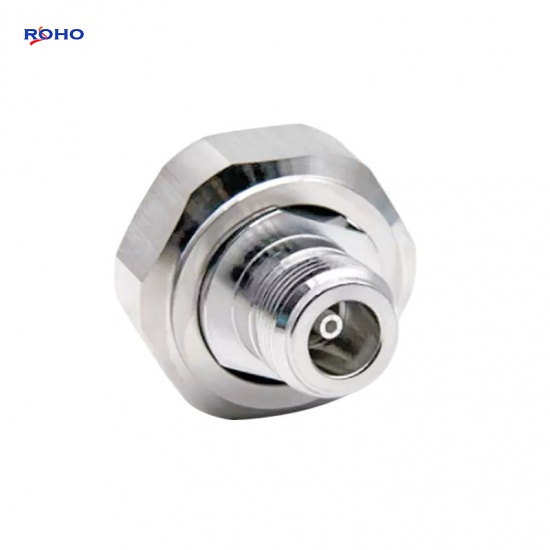

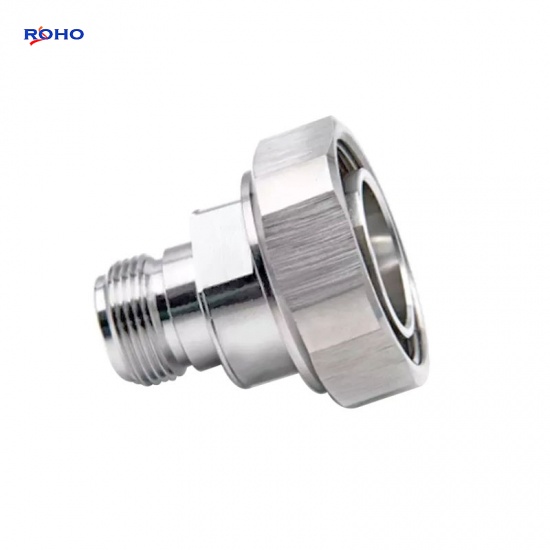

RF Coaxial Connector Low Pim N Female to 7-16 DIN Male Straight RF Connector Adapter
The N Type Adapter has N to 7-16 DIN standard polarity adapter gender. The N to 7-16 DIN has female to female, female to male, male to female or male to male gender, and has bulkhead or mountless configurations. ROHO's N to 7-16 DIN standard polarity adapters are available in standard interfaces; it has 50ohm impedance standard polarity, and has straight body. ROHO offers low PIM or high performance designs.This N female to 7-16 DIN male adapter has a maximum frequency of 8GHz, and is a straight RF adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | N-Type |
| Adapter Side 1 Style | Female |
| Adapter Side 2 Series | 7-16 DIN |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 8 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material | Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Base stations
- Broadcast systems
- Radar equipment
- Microwave Radio
- Outdoor antennas
- Wireless LAN
- Satellite systems
- Surge protection
