MMCX Cable Assemblies

Right Angle MMCX Male to Straight SMA Male RF Coaxial Connector Cable Assembly With RG316

MMCX Cable assembly Features:

  • Can be combined with MMCX, N, SMA, SMB, SMP, TNC or U.FL connector;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible or formable cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

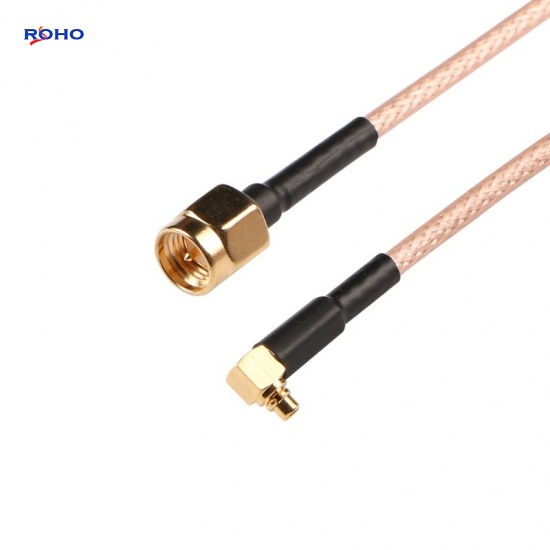

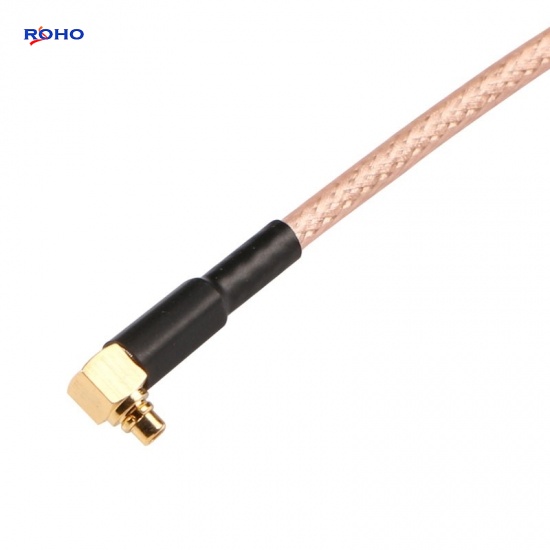

Right Angle MMCX Male to Straight SMA Male RF Coaxial Connector Cable Assembly With RG316



The MMCX cable assembly can use flexible or formable coaxial cable such as LMR100, RG174, RG178, RG188 or RG316 cable; the body of MMCX to SMA cable assembly is right angle or straight connectors which is plug to female or plug to male gender. This MMCX plug to SMA male cable assembly uses a 50ohm right angle MMCX for connector 1 and a 50ohm Straight SMA for connector 2, Cable is 50ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series MMCX
Connector 1 Style Right Angle Male
Cable Type RG316
Connector 2 Series SMA
Connector 2 Style Straight Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM NO
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Antennas
  • Instrumentation
  • Base Stations
  • Broadband
  • Telecommunications
