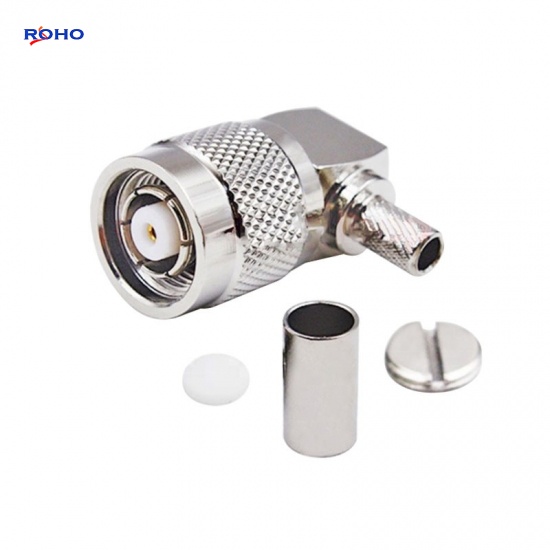

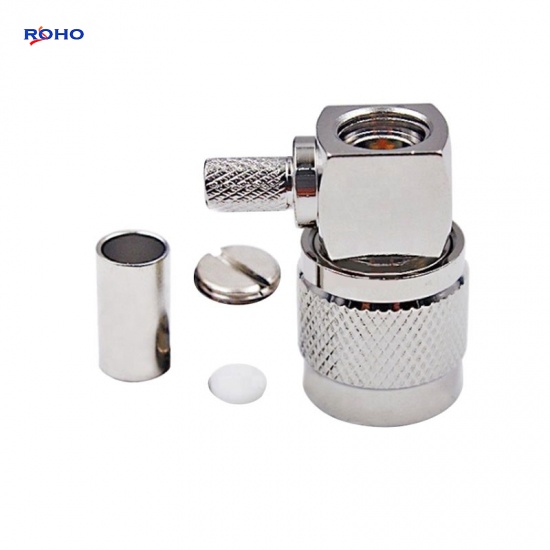

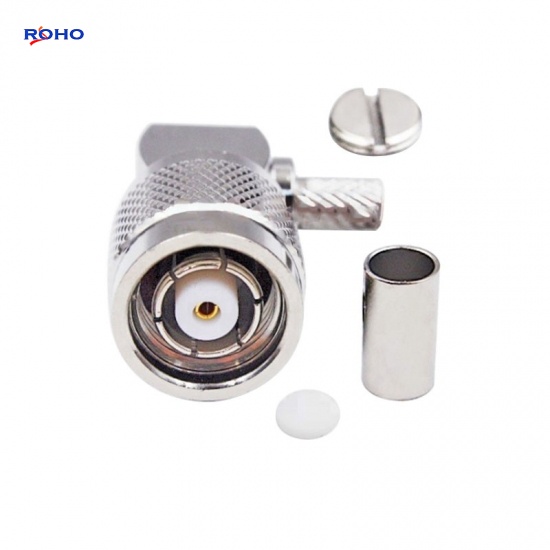

RP TNC Male Right Angle Connector Crimp Solder Attachment for RG55 RG141 RG142 RG223 RG400 Cable
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 ohm impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC; this RP TNC male coaxial connector has an interface type of RG55 RG141 RG142 RG223 RG400 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its right angle body is brass with nickel plating.
Specifications
ELECTRICAL DATA | |
Impedance | 50Ω |
Frequency Range | 3GHz |
Dielectric withstanding voltage (at sea level) | 1500V,50Hz |
Working Voltage (at sea level) | 500V rms,,50Hz |
Insulation Resistance | ≥5000mΩ |
Contact Resistance | Inner conductor: ≤1.5mΩ |
Outer conductor: ≤1mΩ | |
RF leakage(2-3GHZ) | ≥90dB |
MECHANICAL DATA | |
Coupling nut torque | Recommended: 46Ncm--69Ncm / 4.1 in. lbs--6.1 in.lbs |
Proof torque: 170 Ncm / 15.0 in.lbs | |
Coupling nut retention force | ≥450N / 101.2lbs |
Contact captivation | ≥27N / 6.1lbs |
Durability (matings) | ≥500 |
ENVIRONMENTAL DATA | |
Temperature range | -65°C to +165°C |
MATERIAL DATA | |
Bodies | Brass--Ternary alloy plating |
Pin contacts | Brass--Au plating |
Socket contacts | Copper beryllium alloy--Au plating |
Crimp ferrules | Brass-- Ternary alloy plating |
Insulator | PTFE |
Gaskets | Silicone rubber |
Applications
- Industrial
- Military
- Antennas
- Broadband
- Wireless
