SMA Female to F Male Straight RF Connector Adapter

SMA Adapters Features：

Allow to interface SMA connectors with 1.0/2.3, 1.85mm, 2.4mm, 3.5mm, 7/16 DIN, BNC, F, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, TNC, UHF or U.FL connectors;
Has female to female, female to jack, female to male, female to plug, female to receptacle, female to sexless, male to female, male to jack, male to male, male to plug, male to receptacle or male to sexless gender designs;
Has standard polarity or reverse polarity SMA (RP-SMA) options;
Has bulkhead, 4 hole panel or mountless configurations;
Has quick disconnect (QD) or standard interfaces.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

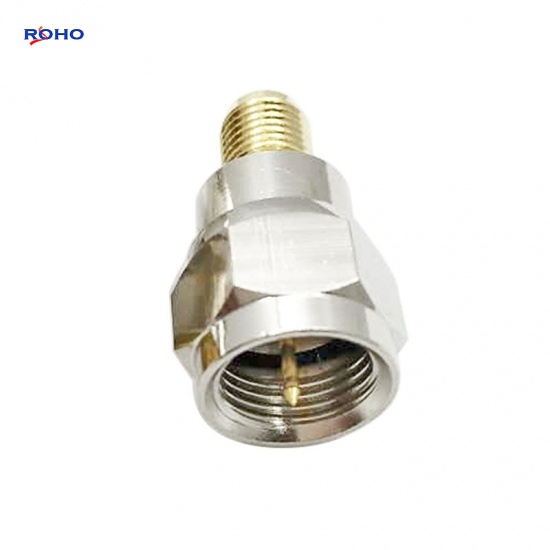

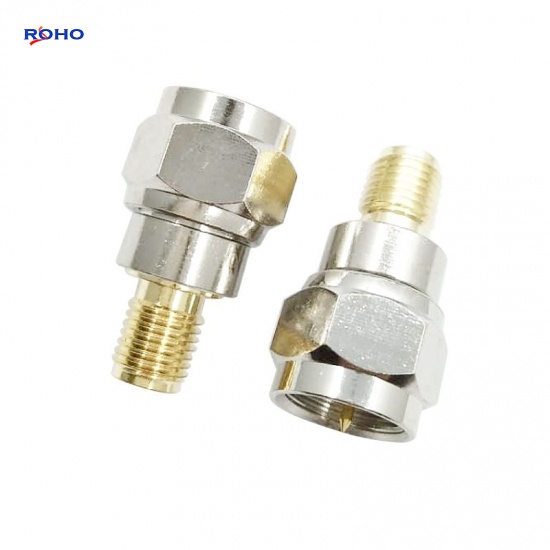

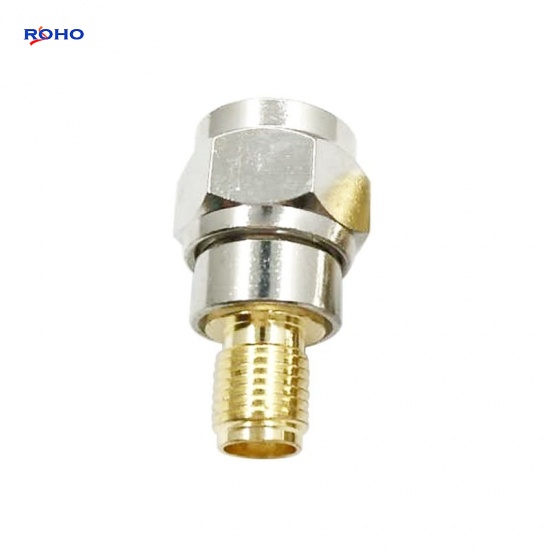

SMA Female to F Male Straight RF Connector Adapter

The SMA Adapter has different SMA to F adapter gender. that is a between series coaxial adapter, The SMA to F adapters has female to female, female to male, male to female or male to male gender. This SMA female to F male adapter has a maximum frequency of 500MHz, and is a straight body adapter.

Specifications

ELECTRICAL DATA
Adapter Side 1 Series	SMA
Adapter Side 1 Style	Female
Adapter Side 2 Series	F
Adapter Side 2 Style	Male
Frequency (Max MHz)	500
Impedance (Ohms)	75
Low PIM	No
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
MATERIAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Applications

5G Solutions
Measurement Systems
Civil & Military Aeronautics
Microwave Systems Telecommunications
Mobile Telephone WiFi Antennas Systems
Military Equipment, Space
