SMB Connectors

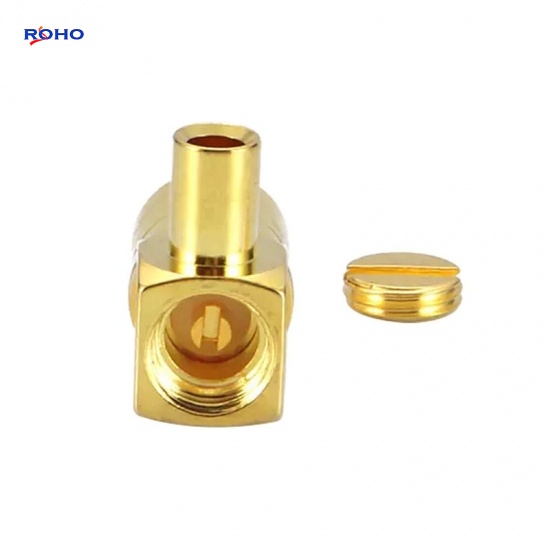

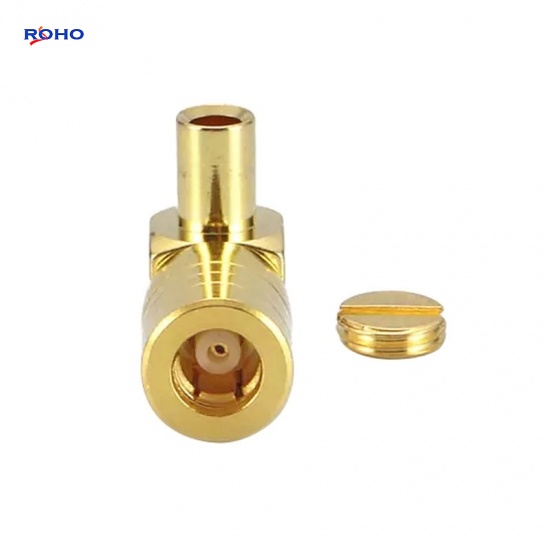

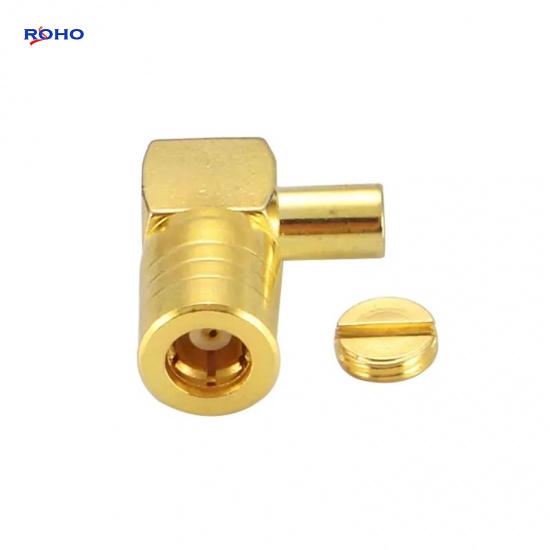

SMB Plug Female Right Angle Connector Clamp Solder Attachment for .086" RG405 Cable

SMB Connector Features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be jack or plug gender with 50 Ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less;
  • Attachment methods include clamp/solder, crimp/solder or solder;
  • Body is brass.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

SMB Plug Female Right Angle Connector Clamp Solder Attachment for  .086" RG405 Cable



The SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.The SMB interface features a snap-on coupling mechanism and is available in 50 and 75 ohm configurations; SMB connectors are available in various materials including an option for die cast components on non-critical areas to provide a low-cost solution; this SMB female coaxial connector has an interface type of .086" RG405 Cable and a 50ohm impedance, attachment method uses shield/contact clamp/solder, its right angle body is brass with gold plating.



Specifications

ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency Range 4GHz (DC - 10 GHz on Extended Range Designs)
Working Voltage 250-335V,50Hz(sea level)
Withstand Voltage 750,50Hz
Insulation Resistance 1000mΩ
Contact Resistance Inner conductor: 5mΩ
Outer conductor: 2.5mΩ
RF leakage 55dB
MECHANICAL DATA
Engagement force 8N--63N / 1.8 lbs--14.2lbs
Disengagement force 8N--63N / 1.8 lbs--14.2lbs
Contact captivation 18N / 4.0 lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Au plating / ternary alloy plating
Pin contacts Brass/Beryllium copper--Au plating
Socket contacts Beryllium copper / Phosphor bronze--Au plating
Springs and washers copper / beryllium alloy--Au plating
Crimp ferrules Brass--Au plating
Insulator PTFE



Applications

  • Base Stations
  • Antennas
  • Global Positioning System (GPS)
  • Instrumentation
  • Radio Boards
  • PC/LAN
  • Telecommunications



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
SMB Female RF Connector
RF Coaxial Connector SMB Plug Female Right Angle Solder PCB Mount
Features: Quick connect/disconnect snap on mating reduces installation time; Various plating options in nickel, gold, and tin lead; SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force.
SMB Female Right Angle Crimp Connector
SMB Plug Female Right Angle Connector Crimp Solder Attachment for RG174 RG316 RG188 LMR100 Cable
SMB Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender with 50 Ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder or solder; Body is brass.
SMB Female Right Angle Crimp Connector
SMB Plug Female Right Angle Connector Crimp Solder Attachment for RG178 RG196 Cable
SMB Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender with 50 Ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder or solder; Body is brass.
SMB Female Right Angle Solder Connector
SMB Plug Female Right Angle Connector Solder Attachment Thru Hole for PCB
SMB Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender with 50 Ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder or solder; Body is brass.
SMB Female Right Angle Clamp Connector
SMB Plug Female Right Angle Connector Clamp Solder Attachment for .141" RG402 Cable
SMB Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender with 50 Ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder or solder; Body is brass.
SMB Female Right Angle Solder Connector
SMB Plug Female Right Angle Solder Connector for .086 RG405 Cable
SMB Connector Features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be jack or plug gender with 50 Ohm impedance; Body can be straight or right angle; Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, crimp/solder or solder; Body is brass.

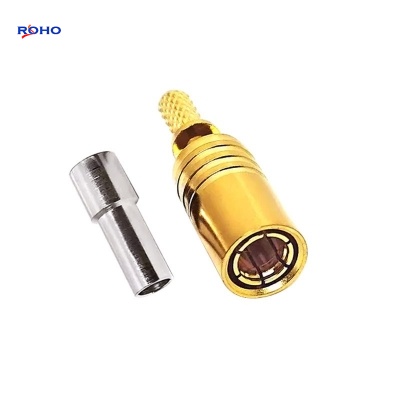

SMB Female Straight Crimp Connector
