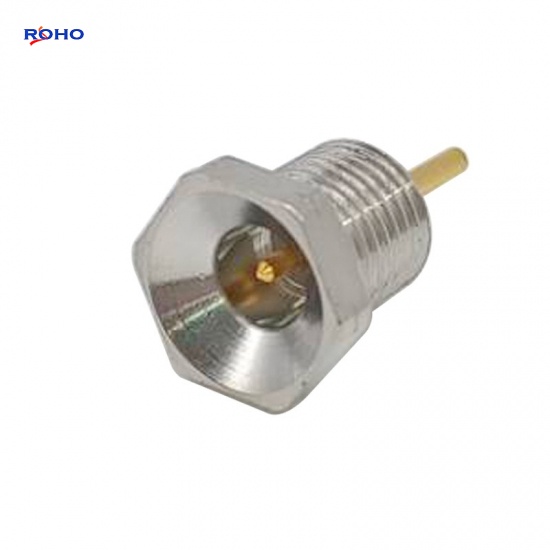

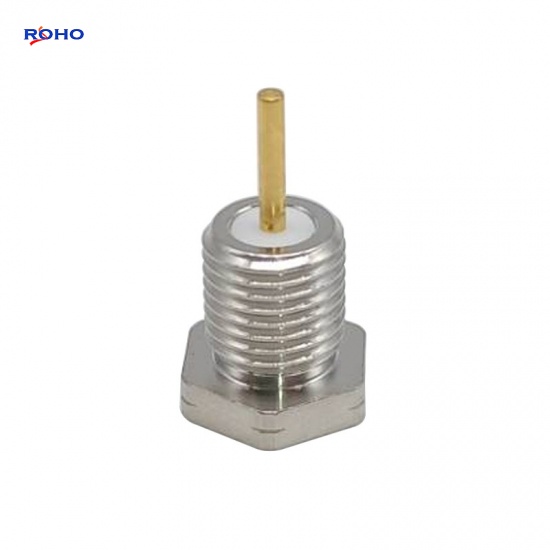

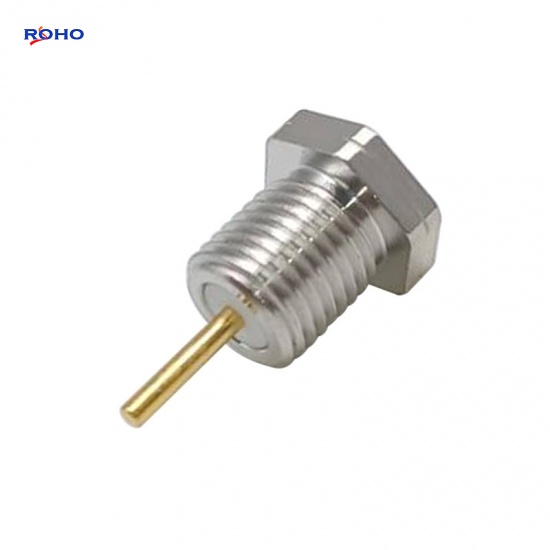

SMP Male Hexagon Body Connector Solder Attachment Thread-In Mount with Pin
The SMP connector is a subminiature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.Available in a cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax. The receptacles are designed for surface, through hole, or end launch mounting; this SMP male coaxial connector has an interface type of pin and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is passivated stainless steel.
Specifications
ELECTRICAL DATA | |
Impedance | 50 Ohm |
Frequency Range | 50GHz |
Voltage Rating | 335 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 500 VRMS Min |
VSWR (Return Loss) | |
DC - 18 GHz | 1.2 (-21 dB) Max |
18 - 26.5 GHz | 1.3 (-18 dB) Max |
26.5 - 40 GHz | 1.7 (-12 dB) Max |
Insulation Resistance | 5000 MΩ Min |
Center Contact Resistance | 6 mΩ Max |
Outer Contact Resistance | 2 mΩ Max |
RF Leakage | -85 dB Max (DC - 4 GHz) |
Insertion Loss | .1 √(f(GHz)) dB Max |
Power Handling | 32 W @ 1 GHz @ 25ºC |
Environmental | |
Temperature Range | −65°C to +165°C |
Mechanical | |
Mating Cycles | 100 Min |
Coupling Mechanism | Psuh-On |
Interface Specification | MIL-STD-348 |
Engagement Force | ≤ 15.0 lbs (40 N) |
Disengagement Force | ≤0.5 lbs (2N) |
Mechanical Misalignment | |
Axial | 0.25 mm |
Radial | 0.51 mm |
Min Board to Board Distance | 9.1 mm |
Applications
- Broadband
- Military
- Instrumentation
- Medical
- Medical
- Quantum Computing
