2.2-5 Cable Assemblies

Straight 2.2-5 Female to 2.2-5 Female Connector Cable Assembly with RG402 Cable For 5G

2.2-5 Cable assembly Features:

  • Can be combined with 4.3-10 , N or 2.2-5 connector;
  • Body is right angle or straight connectors;
  • Cable Can use flexible or corrugated cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

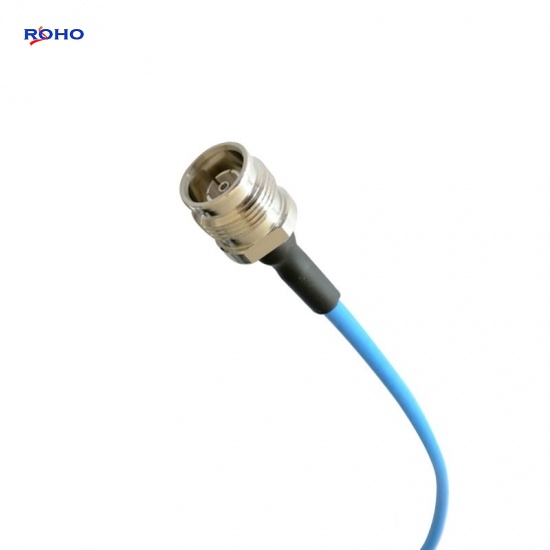

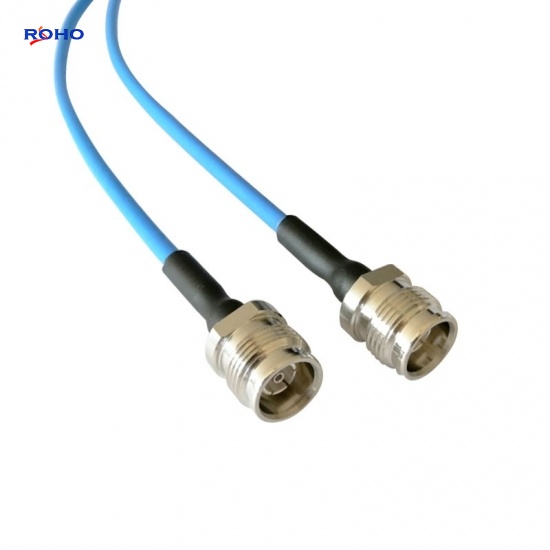

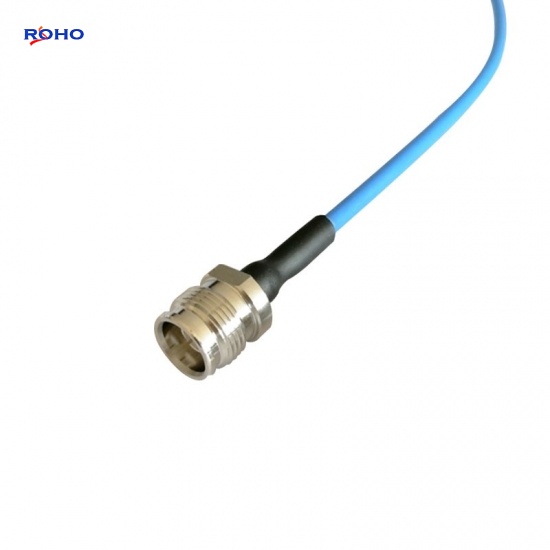

Straight 2.2-5 Female to 2.2-5 Female Connector Cable Assembly with TFT402 Cable For 5G



The 2.2-5 cable assembly can use flexible or corrugated coaxial cable such as 1/4" Superflexible, TFT402; the body of 2.2-5 to 2.2-5 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 2.2-5 to 2.2-5 cable assembly is a low PIM cable. This 2.2-5 male to 2.2-5 male cable assembly uses a 50ohm Straight 2.2-5 for connector 1 and a 50ohm Straight 2.2-5 for connector 2, Cable is 50ohm TFT402.



Specifications

ELECTRICAL DATA
Connector 1 Series 2.2-5
Connector 1 Style Str Female
Cable Type TFT402
Connector 2 Series 2.2-5
Connector 2 Style Jack
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Multi-Carrier Communication Systems
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
  • Small Cell
