4.3-10 Cable Assemblies

Straight RF Coaxial 4.3-10 Female Connector with RG402 Cable Assembly

4.3-10 Cable assembly Features:

  • Can be combined with 2.2-5, 4.3-10, 7-16 DIN, N, NEX10, QMA, or SMA connector;
  • Body Can be right angle or straight connectors;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Cable Can use flexible or corrugated cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

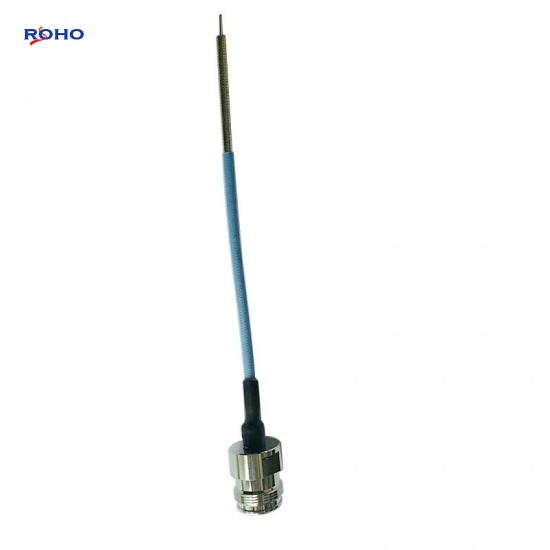

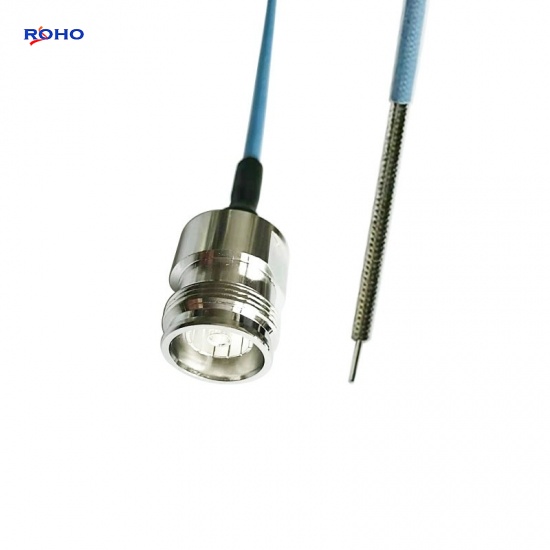

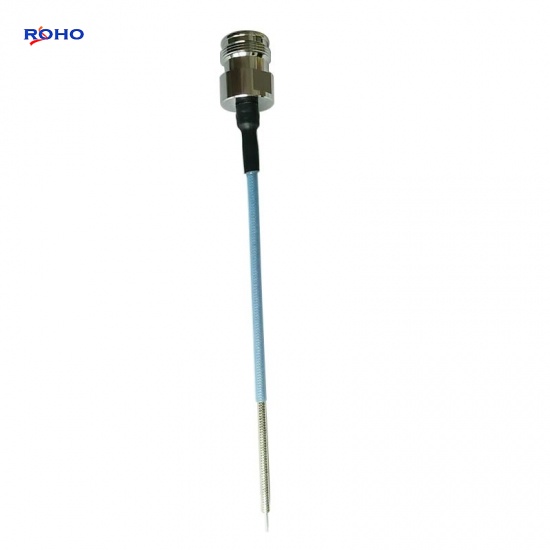

Straight RF Coaxial 4.3-10 Female Connector with RG402 Cable Assembly



The 4.3-10 with cable assembly can use flexible or corrugated coaxial cable such as LMR240, TFT402, LDF4-50A (1/2"); the body of 4.3-10 with cable assembly is right angle or straight connectors which is female with cable or male with cable. ROHO's 4.3-10 with cable assembly is a low PIM cable. This 4.3-10 female with cable assembly uses a 50ohm straight type 4.3-10 for connector 1 and cable is 50ohm RG402 cable.



Specifications

ELECTRICAL DATA
Connector 1 Series 4.3-10
Connector 1 Style Str Female
Cable Type RG402
Connector 2 Series -
Connector 2 Style -
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
  • Plenum Installations



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
4.3 10 Male to Male Cable Assembly
RF Connector Right Angle MINI DIN 4.3-10 Male Plug to Male with 1/2 Superflexible Cable Assembly
4.3-10 Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, N, NEX10, QMA, or SMA connector; Body Can be right angle or straight connectors; Body Can be 4 hole panel, bulkhead or standard mount connectors; Cable Can use flexible or corrugated cable.
4.3-10 Male to 7-16 DIN Male Cable Assembly
MINI DIN 4.3-10 Male to 7-16 DIN Male with 1/2 Superflexible Cable Assembly
4.3-10 Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, N, NEX10, QMA, or SMA connector; Body Can be right angle or straight connectors; Body Can be 4 hole panel, bulkhead or standard mount connectors; Cable Can use flexible or corrugated cable.
4.3-10 Male to Right Angle 7-16 DIN Male Cable Assembly
4.3-10 MINI DIN Male to Right Angle 7-16 DIN Male Connector Assembly with 1/2 Superflexible Cable
4.3-10 Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, N, NEX10, QMA, or SMA connector; Body Can be right angle or straight connectors; Body Can be 4 hole panel, bulkhead or standard mount connectors; Cable Can use flexible or corrugated cable.
4.3-10 Male to NEX10 Male Cable Assembly
MINI DIN 4.3-10 Male to NEX10 Male RF Coaxial Cable Assembly with 1/4 Superflexible Cable
4.3-10 Cable assembly Features: Can be combined with 2.2-5, 4.3-10, 7-16 DIN, N, NEX10, QMA, or SMA connector; Body Can be right angle or straight connectors; Body Can be 4 hole panel, bulkhead or standard mount connectors; Cable Can use flexible or corrugated cable.
MCX Plug Right Angle to MCX Plug Right Angle Cable Assembly
MCX Male Plug Right Angle to MCX Male Plug Right Angle Connector Cable Assembly with .086" Semi Flexible
MCX Cable assembly Features: Can be combined with BNC, FAKRA, MCX, N, SMA, TNC or U.FL connector; Body Can be bulkhead or standard mount connectors; Body Can be right angle or straight connectors; Cable Can use flexible or formable cable.
N Type Female RF Coaxial Connector
N Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole for PCB Termination
N type features: Can terminate to coax, PCB (printed circuit board) or terminal; Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance; Body can be straight or right angle; Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less; Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder; Body is brass or stainless steel.
2.92mm Male to 2.92mm Female Connector Adapter
2.92mm Male to 2.92mm Female RF Coaxial Connector Adapter
2.92mm adapters Features: Includes bulkhead, 4 hole panel or mountless configurations; Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors; Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations; OEM & ODM available for special design with competitive Factory price; 40GHz 3.5mm adapter maximum frequency is provided; Can be Customized for unique material or performance requirement.

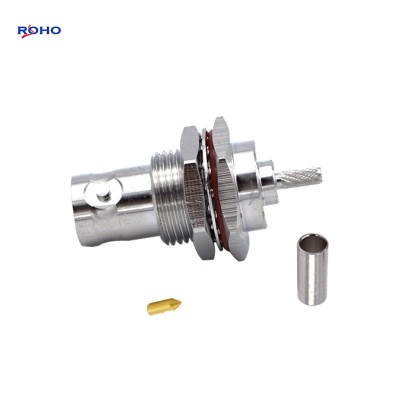

BNC Female Bulkhead Connector
