4.3-10 Cable Assemblies

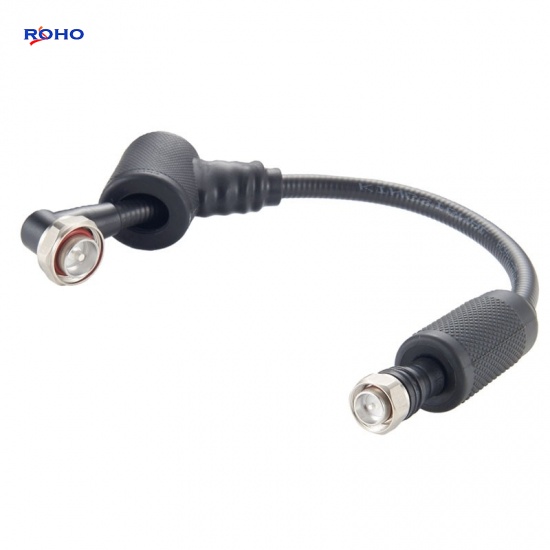

4.3-10 MINI DIN Male to Right Angle 7-16 DIN Male Connector Assembly with 1/2 Superflexible Cable

4.3-10 Cable assembly Features:

  • Can be combined with 2.2-5, 4.3-10, 7-16 DIN, N, NEX10, QMA, or SMA connector;
  • Body Can be right angle or straight connectors;
  • Body Can be 4 hole panel, bulkhead or standard mount connectors;
  • Cable Can use flexible or corrugated cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

4.3-10 MINI DIN Male to Right Angle 7-16 DIN Male Connector Assembly with 1/2 Superflexible Cable

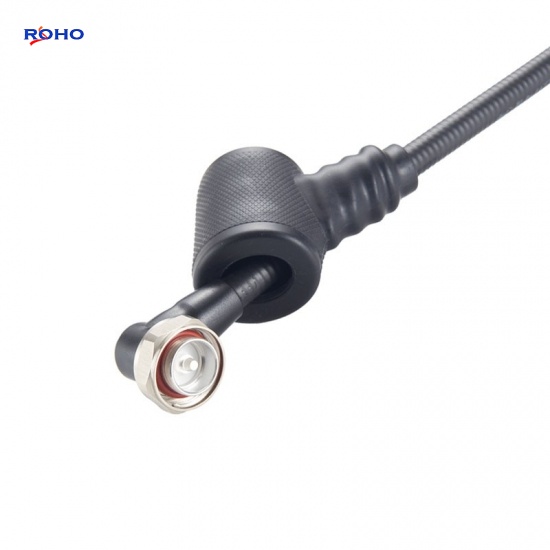

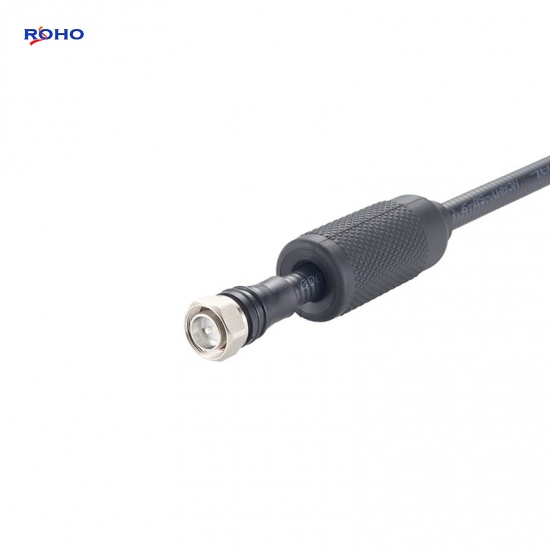

The 4.3-10 cable assembly can use flexible or corrugated coaxial cable such as LMR240, TFT402, LDF4-50A (1/2"); the body of 4.3-10 to 7-16 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 4.3-10 to 7-16 DIN cable assembly is a low PIM cable. This 4.3-10 male to 7-16 DIN male cable assembly uses a 50ohm straight 4.3-10 for connector 1 and a 50ohm right angle 7-16 DIN for connector 2, Cable is 50ohm 1/2 super flexible.



Specifications

ELECTRICAL DATA
Connector 1 Series 4.3-10
Connector 1 Style Str Male
Cable Type 1/2 Super flexible
Connector 2 Series 7-16 DIN
Connector 2 Style RA Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6 GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Multi-Carrier Communication Systems
  • Low PIM Applications
  • Distributed Antennas Systems (DAS)
  • Outdoor Installations
  • Plenum Installations
