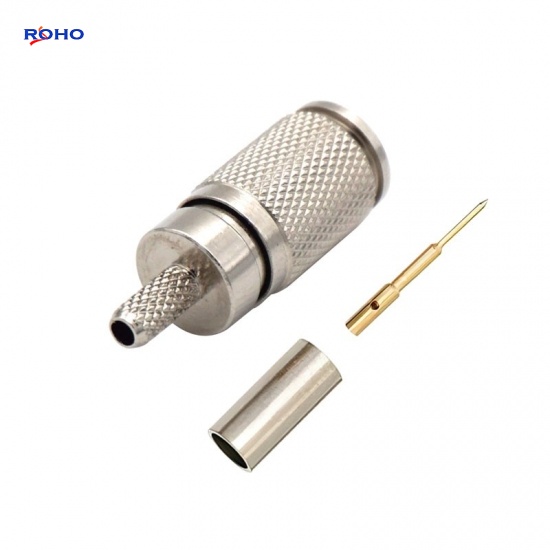

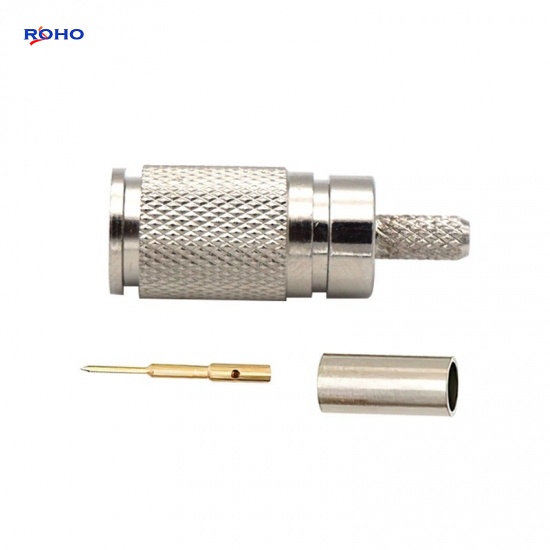

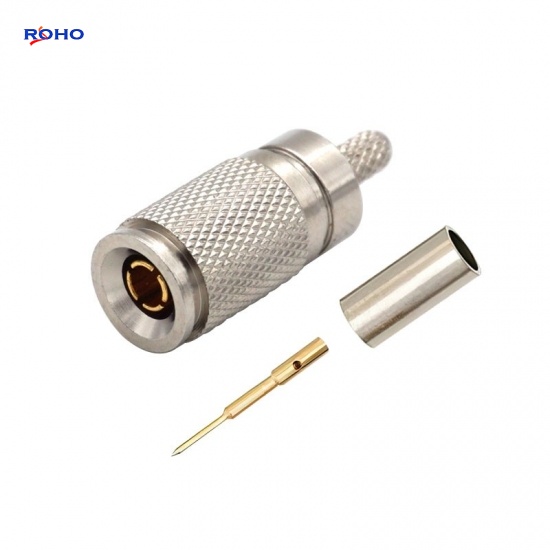

1.0/2.3 Plug Male Straight Connector Crimp Solder Attachment for RG174 RG316 RG188 LMR100 Cable
The 1.0/2.3 connectors compact design allows for denser connector packing which makes this interface an ideal solution for applications where space constraints exist; DIN 1.0/2.3 connectors are available to perform at 50 ohm with a maximum frequency of 4 GHz as well as 75 ohm with a maximum frequency of 3 GHz. ; this 1.0/2.3 male coaxial connector has an interface type of RG174 RG316 RG188 LMR100 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with nickel plating.
Specifications
| ELECTRICAL DATA | |
| Frequency Range | 50 Ohm / DC - 4 GHz |
| 75 Ohm / DC- 3 GHz (0 - 12 GHz on Extended Range Designs) | |
| Voltage Rating | 250 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 750 VRMS Max |
| Insulation Resistance | 10000 MΩ Min |
| Center Contact Resistance | 6 mΩ Min |
| Outer Contact Resistance | 3 mΩ Min |
| RF Leakage | -90 dB Min (DC - 1 GHz) |
| Insertion Loss | 0.1 dB Max |
| Power Handling | 133 W @ 1 GHz @ 25 ºC |
| MECHANICAL DATA | |
| Mating Cycles | 500 Min |
| Coupling Mechanism | Push-Pull |
| ENVIRONMENTAL DATA | |
| Temperature Range | −40°C to +155°C |
Applications
- Base Stations
- Routers
- Data Communications
- Telecommunications/Central Office
- Routers
- Filters & Wireless Components
- Switching Equipment
- Cameras
- Encoders
