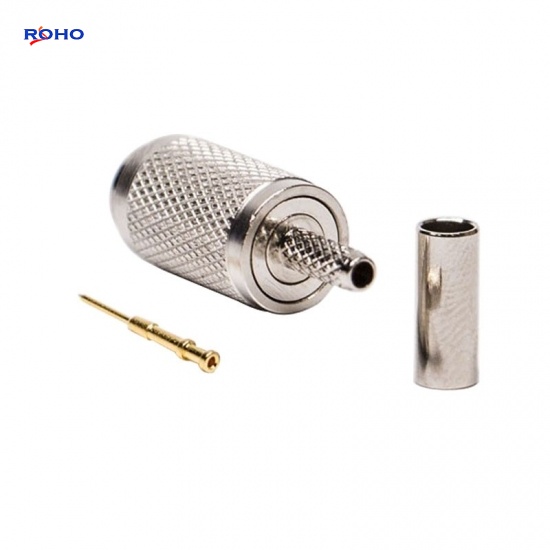

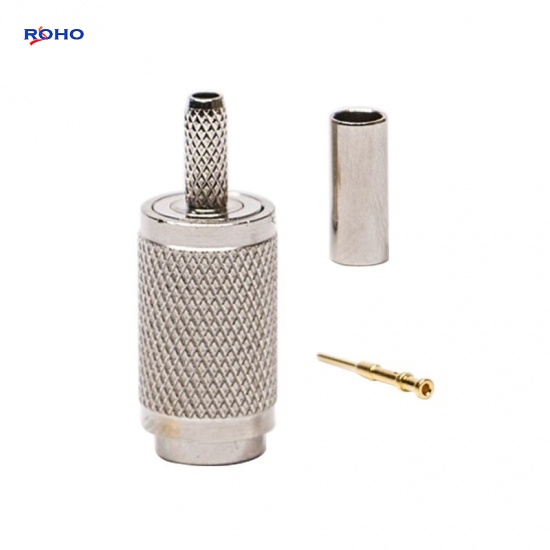

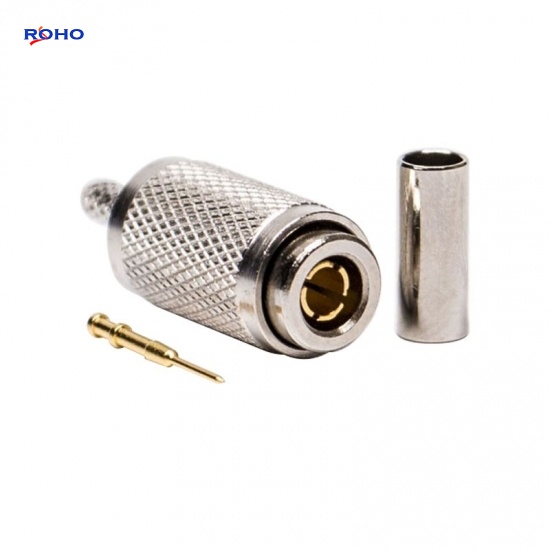

1.0-2.3 Plug Male Straight Push-On Connector Crimp for RG179 Cable
The 1.0-2.3 connectors compact design allows for denser connector packing which makes this interface an ideal solution for applications where space constraints exist; DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 4 GHz as well as 75 ohm with a maximum frequency of 3 GHz. ; this 1.0-2.3 male coaxial connector has an interface type of RG179 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with nickel plating.
Specifications
ELECTRICAL DATA | |
Frequency Range | 50 Ohm / DC - 4 GHz |
75 Ohm / DC- 3 GHz (0 - 12 GHz on Extended Range Designs) | |
Voltage Rating | 250 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 750 VRMS Max |
Insulation Resistance | 10000 MΩ Min |
Center Contact Resistance | 6 mΩ Min |
Outer Contact Resistance | 3 mΩ Min |
RF Leakage | -90 dB Min (DC - 1 GHz) |
Insertion Loss | 0.1 dB Max |
Power Handling | 133 W @ 1 GHz @ 25 ºC |
MECHANICAL DATA | |
Mating Cycles | 500 Min |
Coupling Mechanism | Push-Pull |
ENVIRONMENTAL DATA | |
Temperature Range | −40°C to +155°C |
Applications
- Base Stations
- Routers
- Data Communications
- Telecommunications/Central Office
- Routers
- Filters & Wireless Components
- Switching Equipment
- Cameras
- Encoders
