DIN 7-16 Attenuators

100W RF Coaxial Microwave Fixed Attenuators 7-16 DIN Male to Female 3dB 6dB 10dB 15dB 20dB 30dB 40dB Avaliable

7-16 DIN Attenuator Features:

  • 7-16 DIN connector input, out connector can be N or 7-16 DIN;
  • Maximum frequency of 18GHz;
  • A female gender in and a female or male gender out;
  • Attenuation values range from 1dB to 60dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

100W RF Coaxial Microwave Fixed Attenuators 7-16 DIN Male to Female 3dB 6dB 10dB 15dB 20dB 30dB 40dB Avaliable

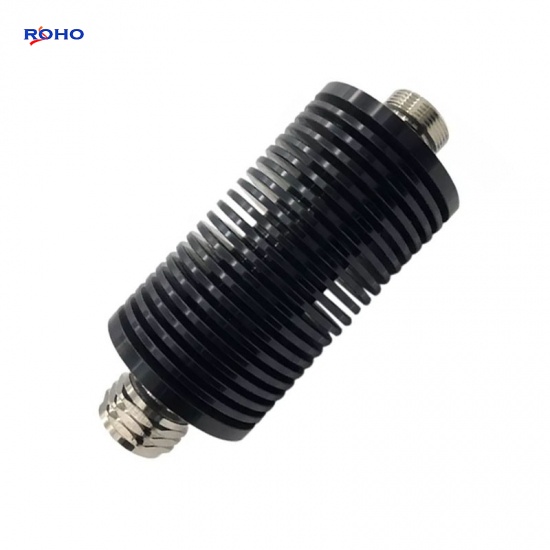

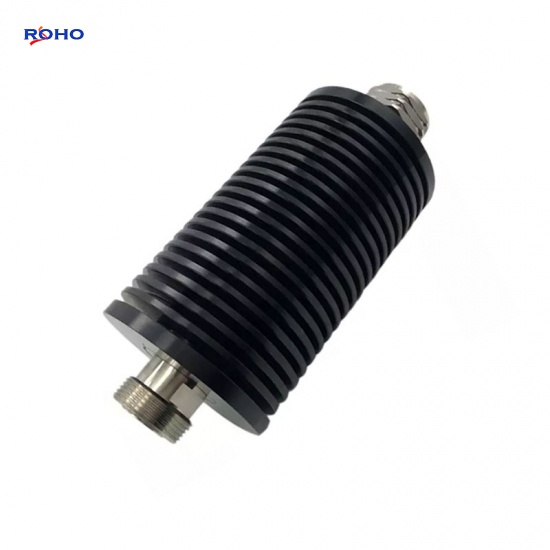

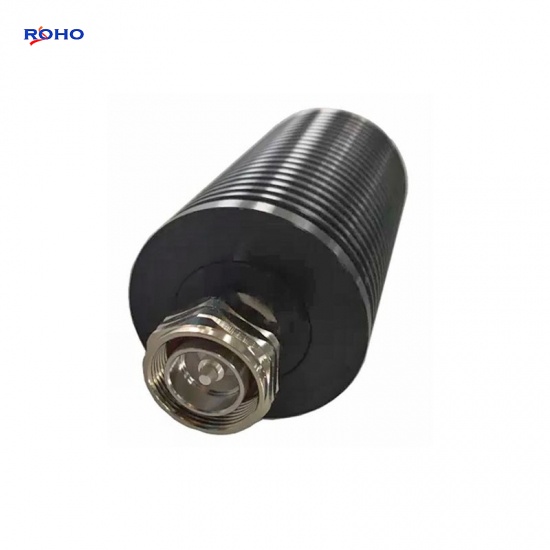

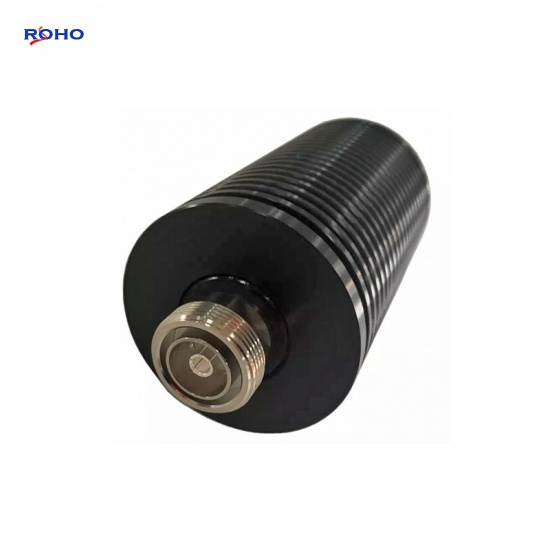

The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 7-16 DIN Attenautor is a High Power Coaxial Attenuator from 25 to 100W, and we offer 50ohm loads terminations male and female type. This 100W 7-16 DIN to 7-16 DIN Attenuator has a 7-16 DIN male gender on side 1 and a 7-16 DIN female connector on side 2. attenuation Max value is 50dB, frequency Max is 6GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector 7-16 DIN Male to7-16 DIN Female
VSWR ≤1.2
Power 100W
Impedance 50Ω
Attenuation value 3-40dB
Attenuation 3, 6, 10, 15, 20, 30, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Cluster communication
  • satellite communication
  • Hopping radio
  • Radar, electronic navigation
  • Electronic confrontation
  • Aerospace equipment systems
