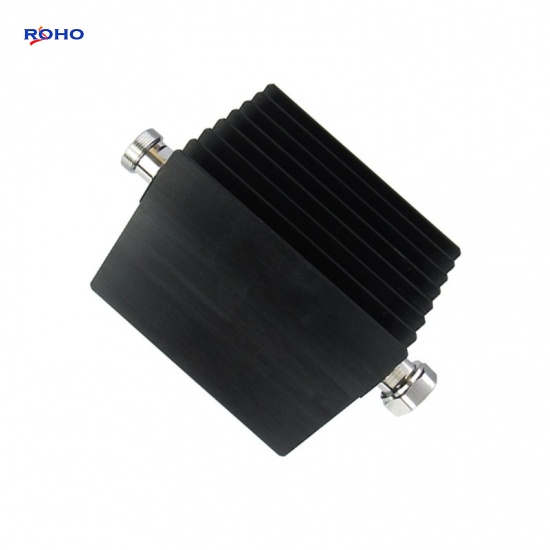

100W DIN 7/16 Male to 7/16 Female Square RF Attenuator 3-40dB DC-6GHz

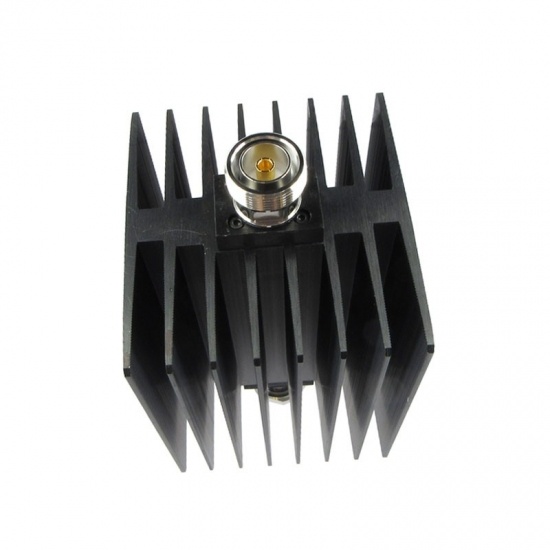

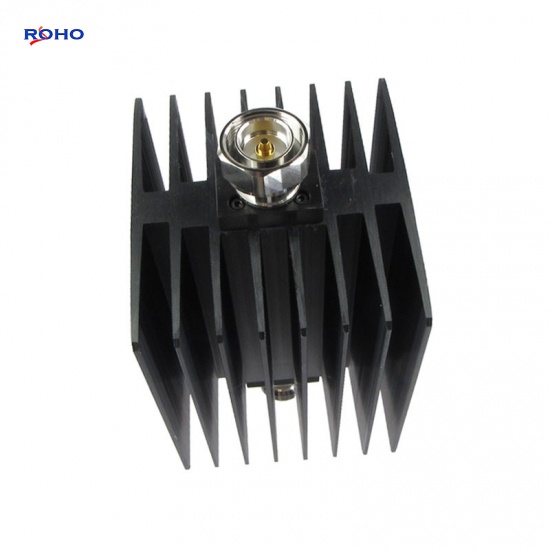

The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 7/16 DIN Attenautor is a High Power Coaxial Attenuator from 25 to 100W, and we offer 50ohm loads terminations male and female type. This 100W 7/16 DIN to 7/16 DIN Attenuator has a 7/16 DIN male gender on side 1 and a 7/16 DIN female connector on side 2. attenuation Max value is 50dB, frequency Max is 6GHz.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~3GHz |
| Connector | 7/16 DIN Male to7/16 DIN Female |
| VSWR | ≤1.2 |
| Power | 100W |
| Impedance | 50Ω |
| Attenuation value | 1-40dB |
| Attenuation | 3, 6, 10, 15, 20, 30, 40dB is available 1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Ni |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
| Housing | Aluminum,Black |
Applications
- Cluster communication
- satellite communication
- Hopping radio
- Radar, electronic navigation
- Electronic confrontation
- Aerospace equipment systems
