DIN 7-16 Terminators

10W DIN 7-16 Female RF Connector Dummy Load Termination 50ohm DC-3GHz Coaxial Terminator

Features:

  • Wide frequency Band;
  • Supports -105/-120/-150dBc PIM Rating;
  • Low VSWR and excellent impedance matching;
  • Wide frequency Band;
  • High Reliability, IP65 & IP67 waterproof;
  • Economic price.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

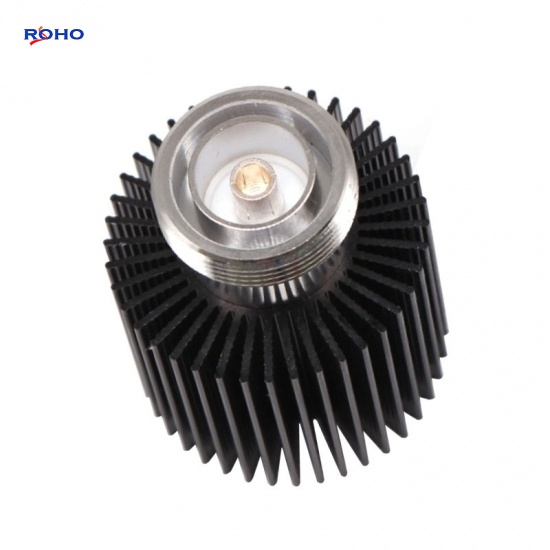

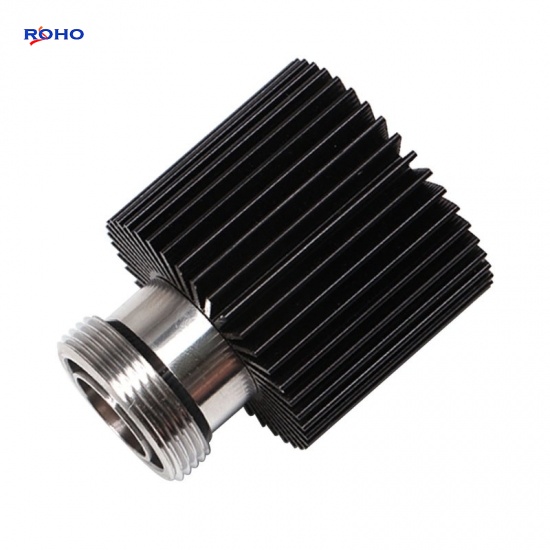

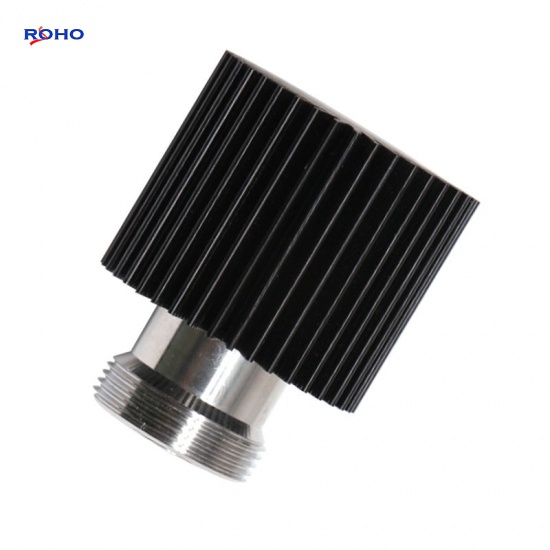

10W DIN 7-16 Female RF Connector Dummy Load Termination 50ohm DC-3GHz Coaxial Terminator



The 10W 7-16 DIN dummy load (also known as 10W 7-16 DIN termination or 10W 7-16 DIN RF load) has a 7-16 DIN connector that is female. This 10W 7-16 DIN female load / termination is rated for a maximum frequency of 3GHz. ROHO's 7-16 DIN female termination load is a rf load termination with a 50ohm impedance;This 7-16 DIN coaxial termination / load has an average maximum VSWR of 1.2:1. and 10W 7-16 DIN female load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector DIN 7-16 Female
VSWR ≤1.2
Power 10W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
