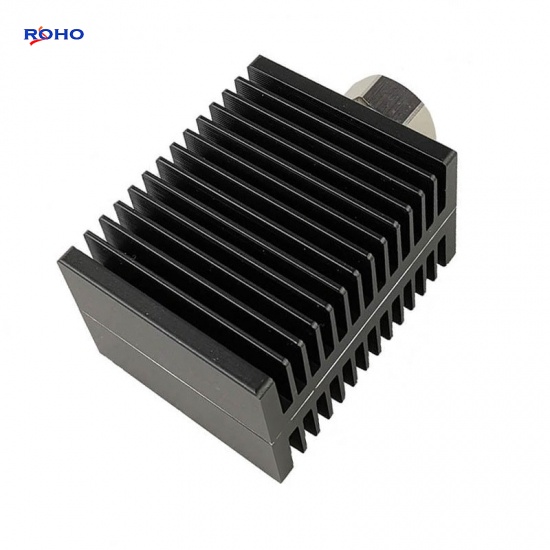

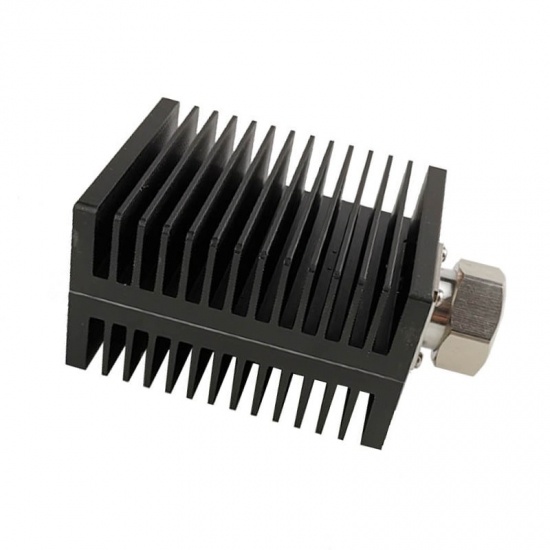

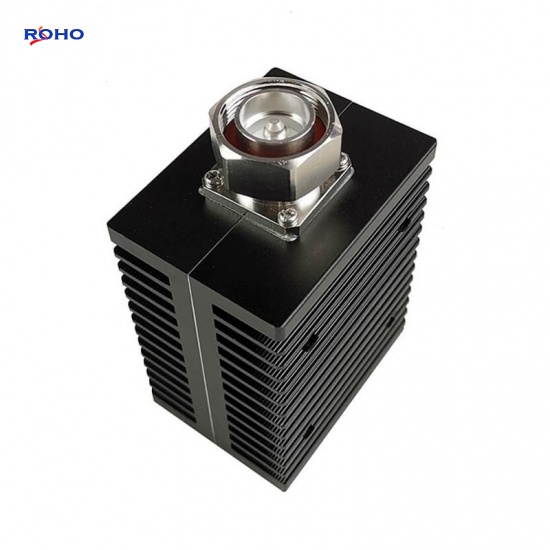

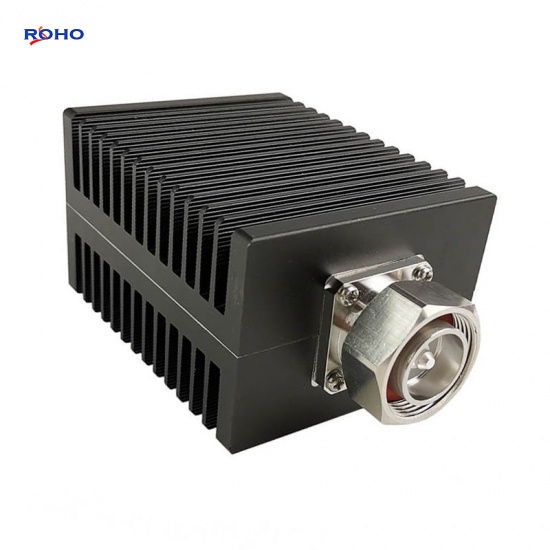

High Power 100W 7/16 DIN Male Square Shape RF Terminator DC-3GHz Dummy Load
The 100W 7/16 DIN dummy load (also known as 100W 7/16 DIN termination or 100W 7/16 DIN RF load) has a 7/16 DIN connector that is male. This 100W 7/16 DIN male load / termination is rated for a maximum frequency of 3GHz. ROHO's 7/16 DIN male termination load is a rf load termination with a 50ohm impedance;This 7/16 DIN coaxial termination / load has an average maximum VSWR of 1.2:1. and 100W 7/16 DIN male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~3GHz |
| Connector | DIN 7/16 Male |
| VSWR | ≤1.2 |
| Power | 100W |
| Impedance | 50Ω |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Ni |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
| Housing | Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
