150W N Type Male DC-3GHz/4GHz RF Terminator 50ohm Termination Dummy Load

Features:

  • High Peak Power;
  • Low VSWR;
  • Multiple IP Degree Conditions;
  • Powers 2W to 500W;
  • Low PIM Performance;
  • N,DIN, 4.3-10 Connectors;
  • Low Cost Design, Design to Cost.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

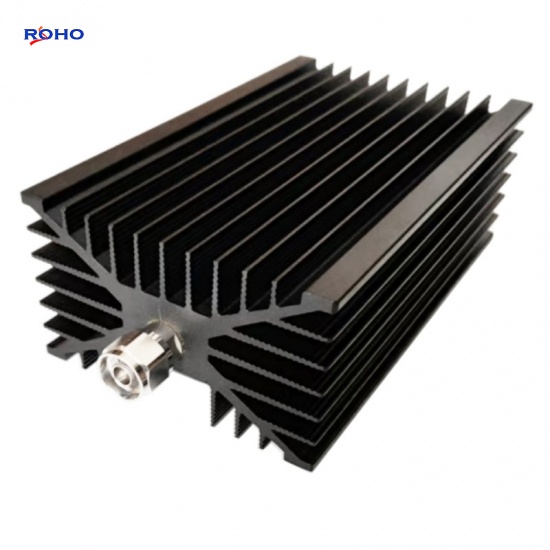

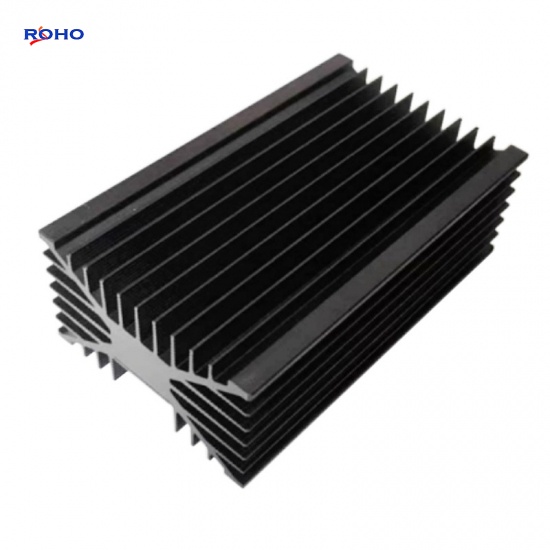

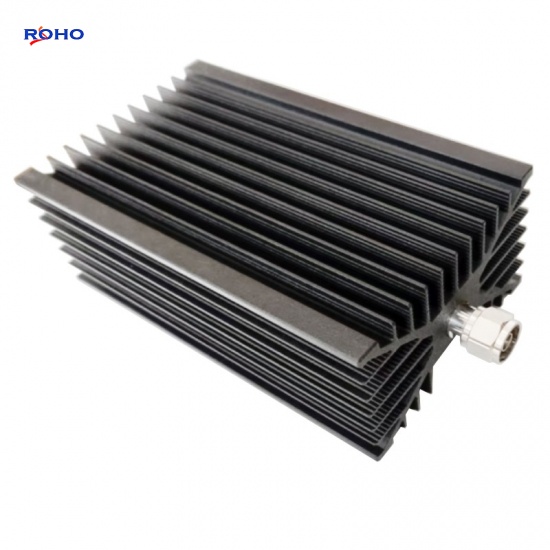

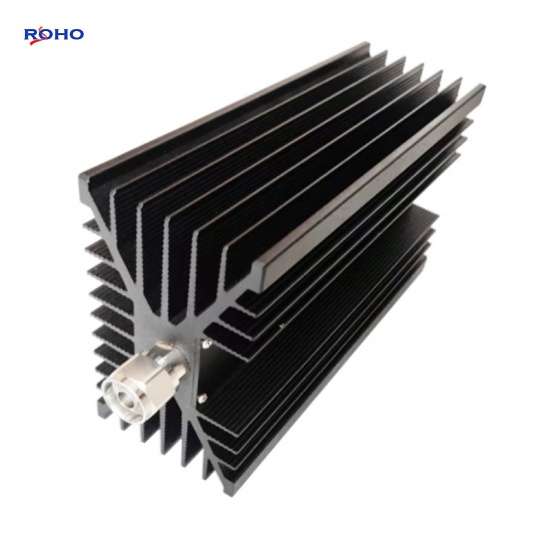

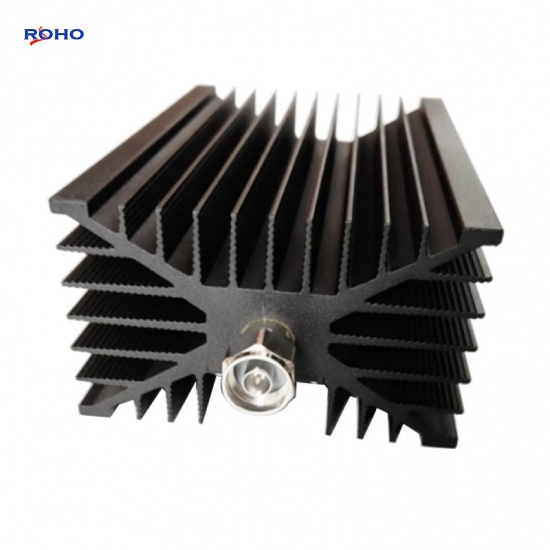

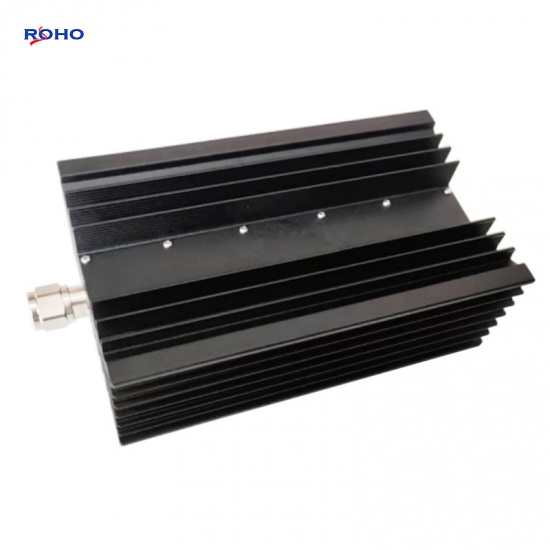

150W N Type Male DC-3GHz/4GHz RF Terminator 50ohm Termination Dummy Load



The 150W N dummy load (also known as 150W N termination or 150W N RF load) has a type N connector that is male. This 150W type N male load / termination is rated for a maximum frequency of 4GHz. ROHO's N type male termination load is a rf load termination with a 50ohm impedance; This type N load / coax terminator has an average maximum VSWR of 1.2:1. The 150W N type male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector N Male
VSWR ≤1.2
Power 150W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
5W N Male dummy load
5W N Type Male Termination Dummy Load 50ohm DC-3GHz/6GHz Terminator
Features: High Peak Power; Low VSWR; Multiple IP Degree Conditions; Powers 2W to 500W; Low PIM Performance; N,DIN, 4.3-10 Connectors; Low Cost Design, Design to Cost.

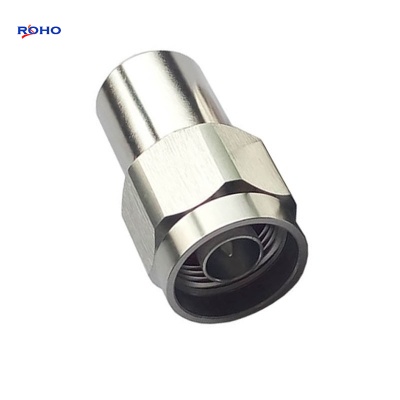

2W N Male dummy load
2W N Type Male Connector Termination DC-3GHz/6GHz 50ohm RF Coaxial Fixed Terminator Dummy Load
Features: High Peak Power; Low VSWR; Multiple IP Degree Conditions; Powers 2W to 500W; Low PIM Performance; N,DIN, 4.3-10 Connectors; Low Cost Design, Design to Cost.

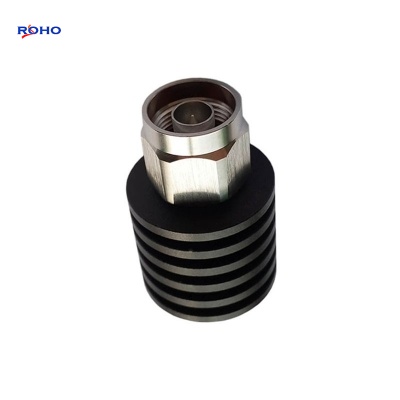

10W N Male dummy load
10W DC-3GHz N Type Male 50ohm Dummy Load Terminator RF Termination
Features: High Peak Power; Low VSWR; Multiple IP Degree Conditions; Powers 2W to 500W; Low PIM Performance; N,DIN, 4.3-10 Connectors; Low Cost Design, Design to Cost.

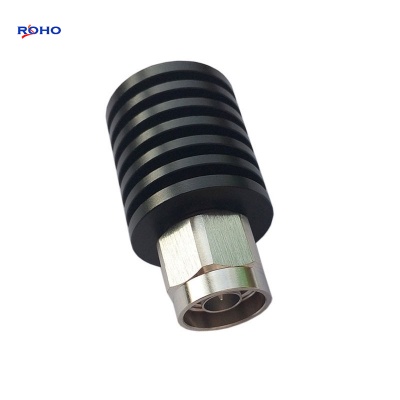

25W N Male Dummy Load
25W N Type Male Connector Coaxial Dummy Load Terminator DC-3GHz RF Termination
Features: High Peak Power; Low VSWR; Multiple IP Degree Conditions; Powers 2W to 500W; Low PIM Performance; N,DIN, 4.3-10 Connectors; Low Cost Design, Design to Cost.

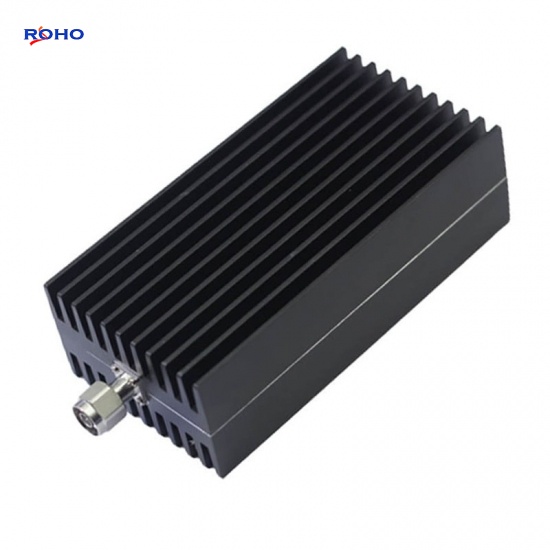

50W N Male dummy load
50W N Type Male Connector Frequency DC-3GHz 50ohm Dummy Loads RF Coaxial Load Termination Load
Features: High Peak Power; Low VSWR; Multiple IP Degree Conditions; Powers 2W to 500W; Low PIM Performance; N,DIN, 4.3-10 Connectors; Low Cost Design, Design to Cost.

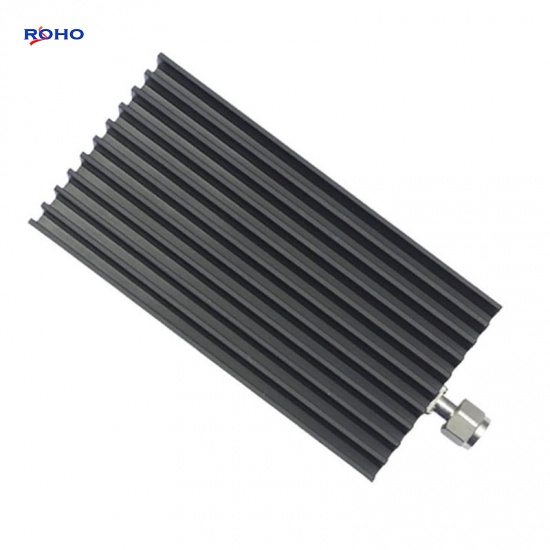

100W N Male Dummy Load
100W N Type Male Connector DC-3GHz 50ohm Electrical Dummy Load Low PIM Square Shape Termination Load
Features: High Peak Power; Low VSWR; Multiple IP Degree Conditions; Powers 2W to 500W; Low PIM Performance; N,DIN, 4.3-10 Connectors; Low Cost Design, Design to Cost.

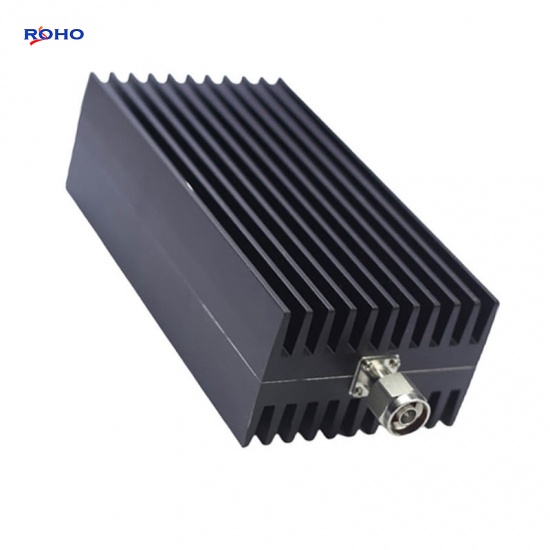

100W N Male dummy load
