50W N Type Male Connector Frequency DC-3GHz 50ohm Dummy Loads RF Coaxial Load Termination Load

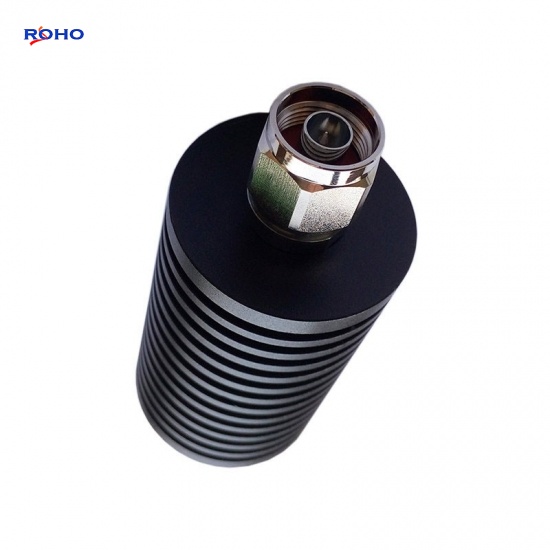

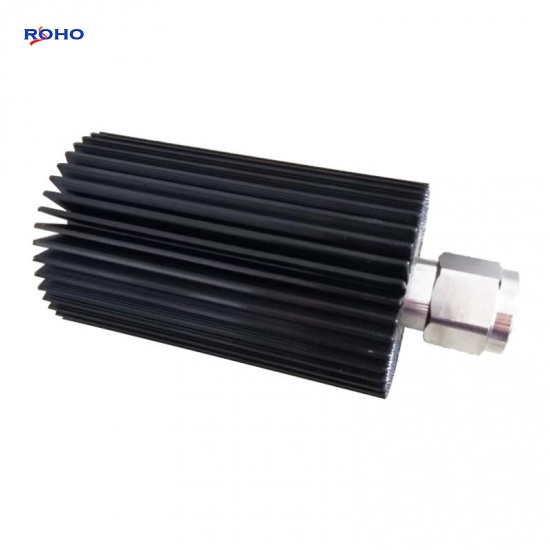

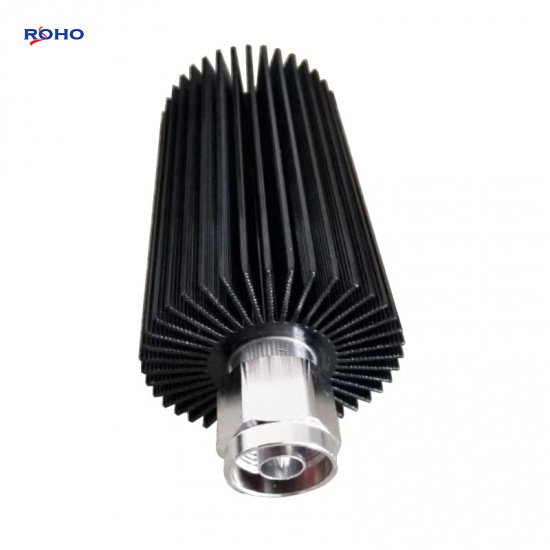

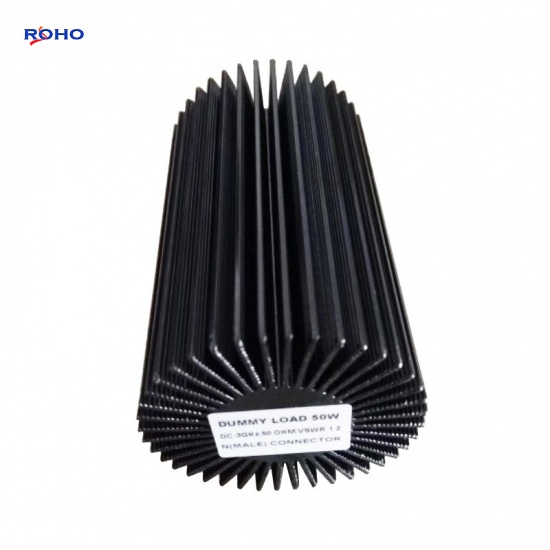

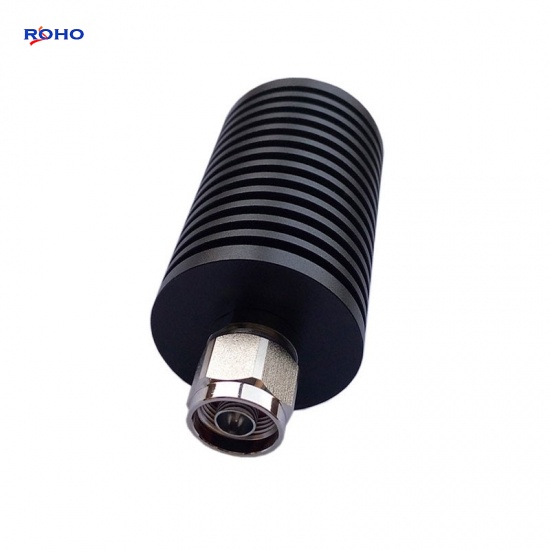

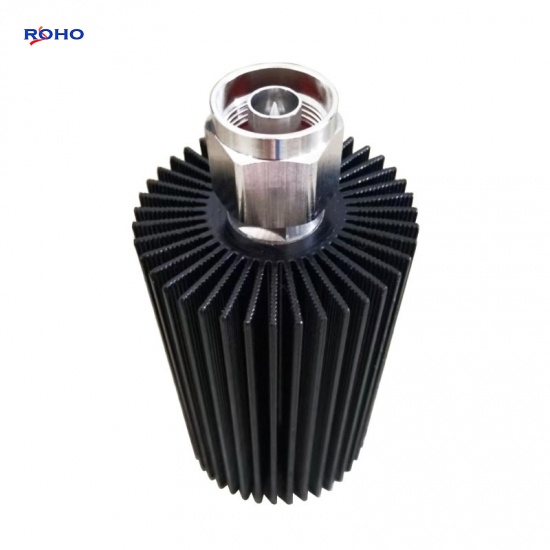

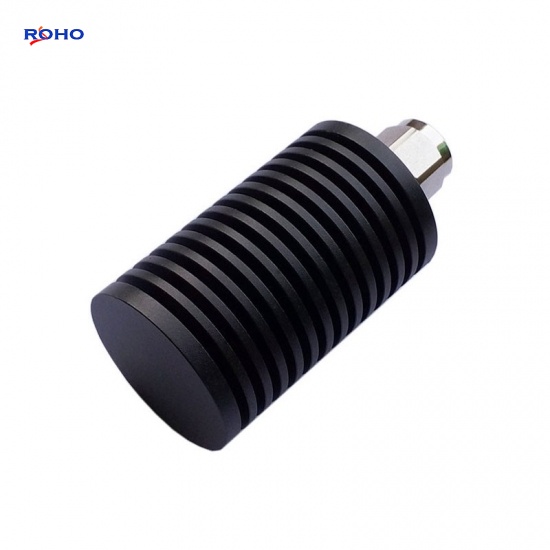

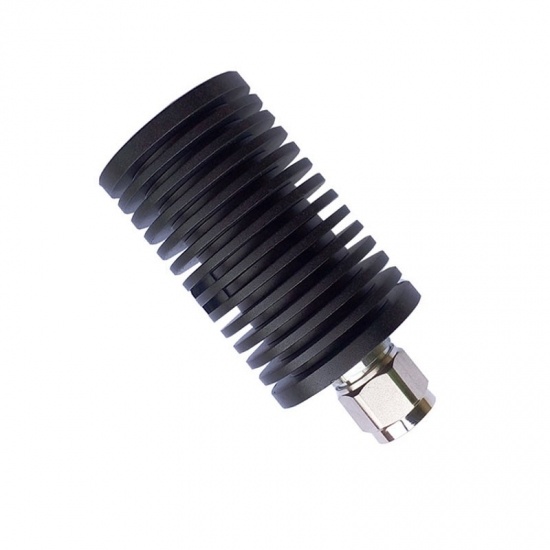

The 50W N dummy load (also known as 50W N termination or 50W N RF load) has a type N connector that is male. This 50W type N male load / termination is rated for a maximum frequency of 3GHz. ROHO's N type male termination load is a rf load termination with a 50ohm impedance; This type N load / coax terminator has an average maximum VSWR of 1.2:1. The 50W N type male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~3GHz |
| Connector | N Male |
| VSWR | ≤1.2 |
| Power | 50W |
| Impedance | 50Ω |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Ni |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
| Housing | Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
