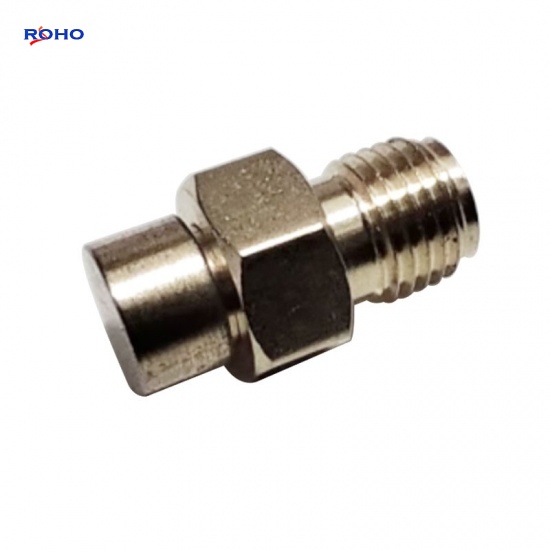

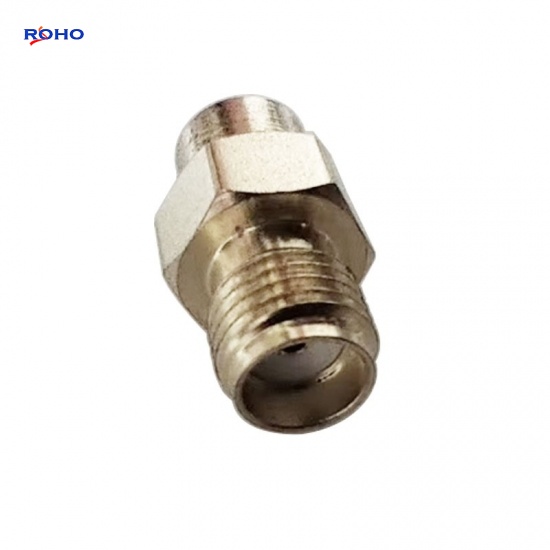

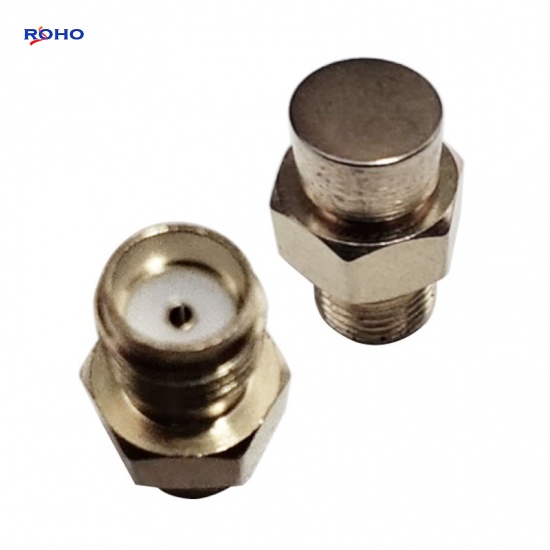

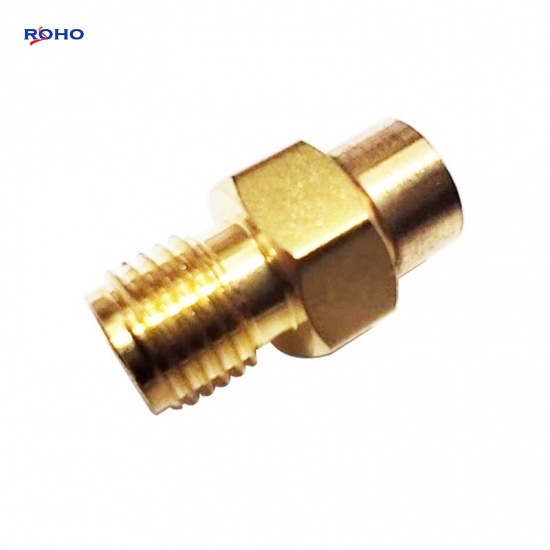

1W DC-6GHz 50ohm RF Dummy Load Termination with SMA Female Connector
The 1W SMA dummy load (also known as 1W SMA termination or 1W SMA RF load ) has a SMA connector that is female. This 1W SMA female load / termination is rated for a maximum frequency of 26.5GHz. ROHO's SMA female termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 1W SMA female load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~6GHz |
| Connector | SMA Female |
| VSWR | ≤1.2 |
| Power | 1W |
| Impedance | 50Ω |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Au |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
