2.4mm Terminators

2.4mm Male Termination Dummy Load 50ohm DC-40GHz RF Terminator

Features：

High Reliable;
Good Mechanical Performance;
Wide Frequency Range from DC to 40GHz.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

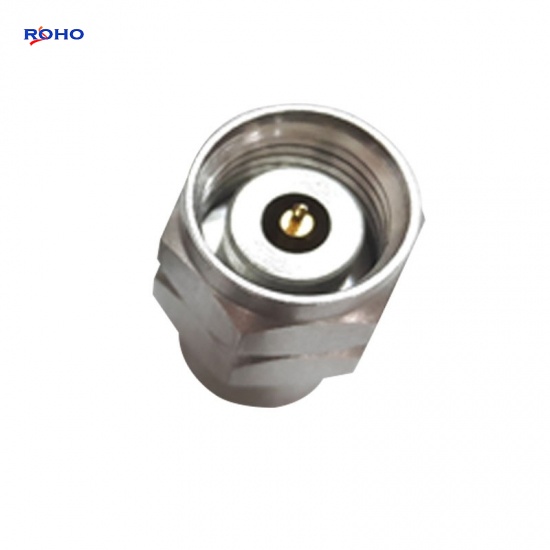

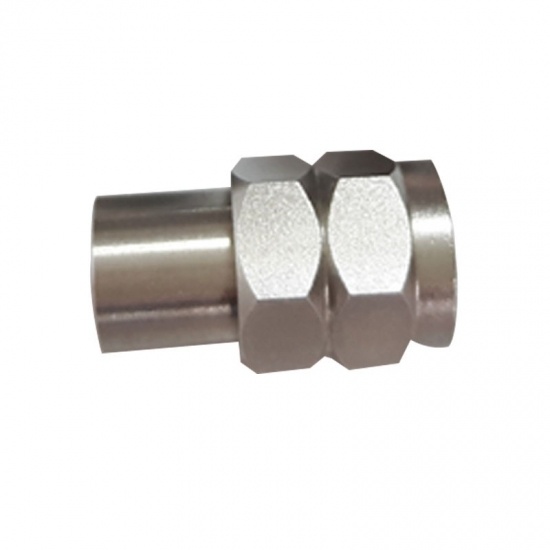

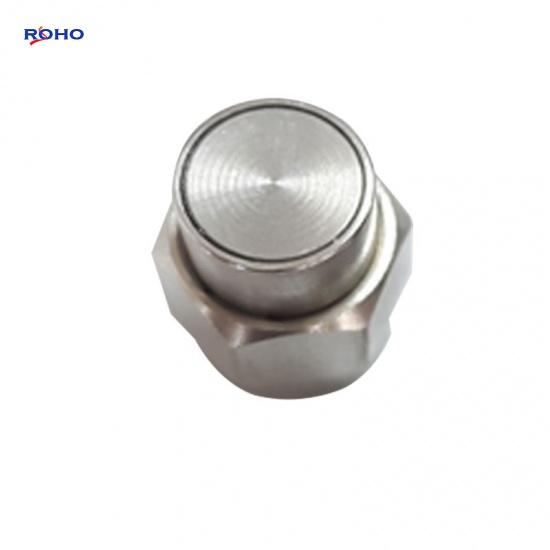

2.4mm Male Termination Dummy Load 50ohm DC-40GHz RF Terminator

The 2.4mm Male dummy load (also known as 2.4mm Male termination or 2.4mm Male RF load) has maximum frequency up to 50GHz. This ROHO Termination is a RF load rated to 2W and has a 50ohm impedance;Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.

Specifications

ELECTRICAL DATA
Frequency	DC~40GHz
Connector	2.4mm Male
VSWR	≤1.2
Power	1W
Impedance	50Ω
Temperature Range	-55℃～+125℃
MATERIAL DATA
Connector body	Stainless Steel,Passivate or Brass,Plating Ni
Insulator	PTFE
Inner Conductor	Phosphor Bronze ,Plating Au

Applications

Measurement systems
Multi-port microwave device
Directional couplers
Isolators
