2.4mm Terminators

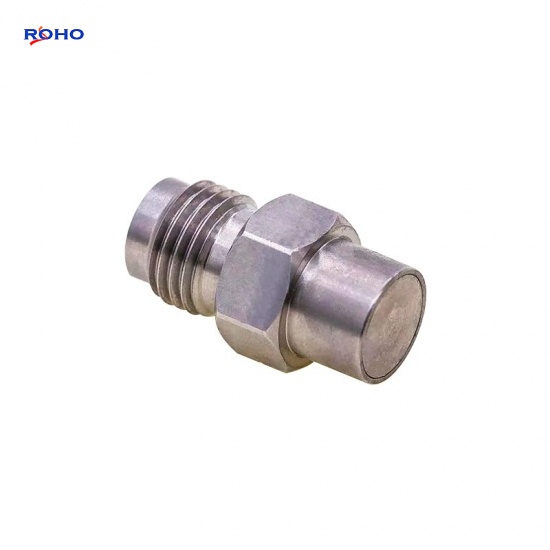

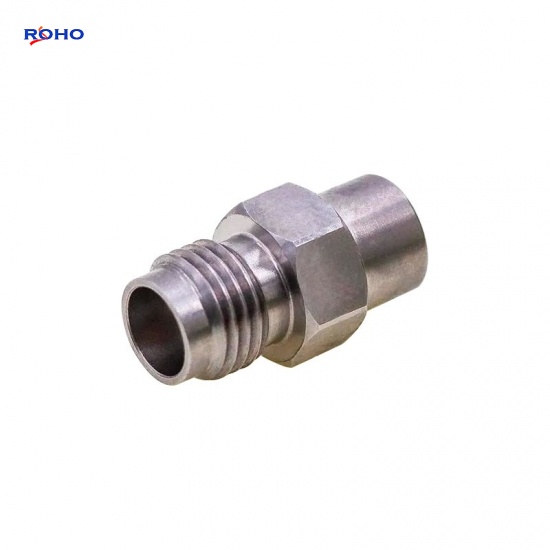

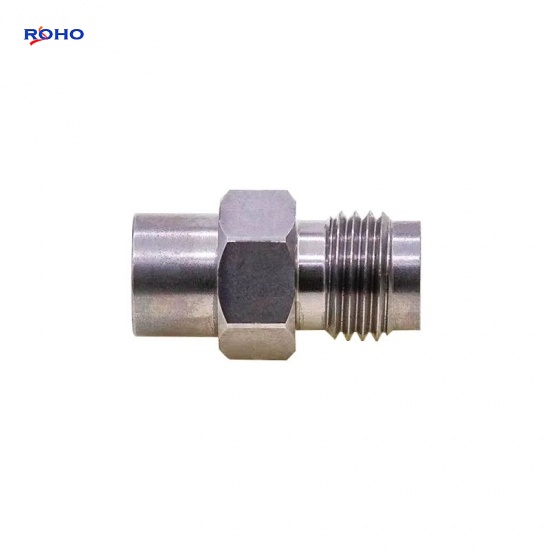

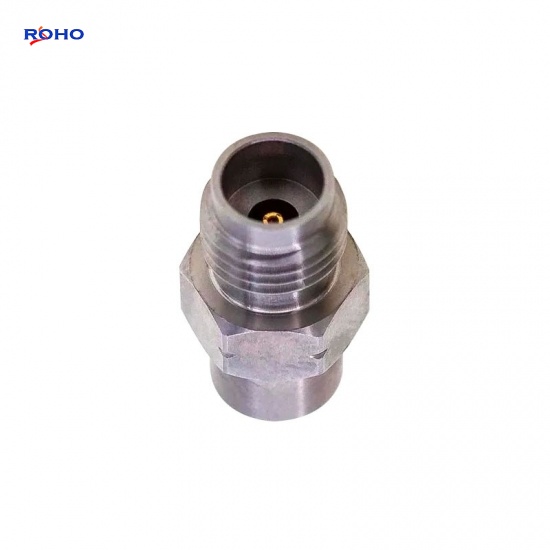

2.4mm Female 0.5W RF Terminator dummy load DC-40GHz RF Coaxial Termination

Features:

  • High Reliable;
  • Good Mechanical Performance;
  • Wide Frequency Range from DC to 40GHz.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

2.4mm Female 0.5W RF Terminator dummy load DC-40GHz RF Coaxial Termination



The 2.4mm Female dummy load (also known as 2.4mm Female termination  or 2.4mm Female RF load) has maximum frequency up to 50GHz. This ROHO Termination is a RF load rated to 2W and has a 50ohm impedance;Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.



Specifications

ELECTRICAL DATA
Frequency DC~40GHz
Connector 2.4mm Female
VSWR ≤1.2
Power 0.5W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
