2.2-5 Connectors

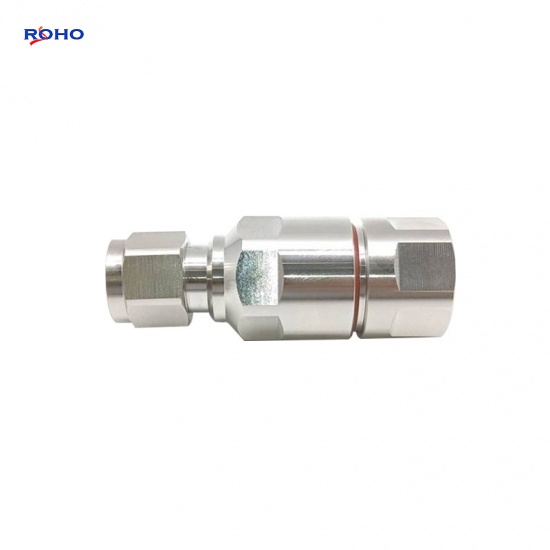

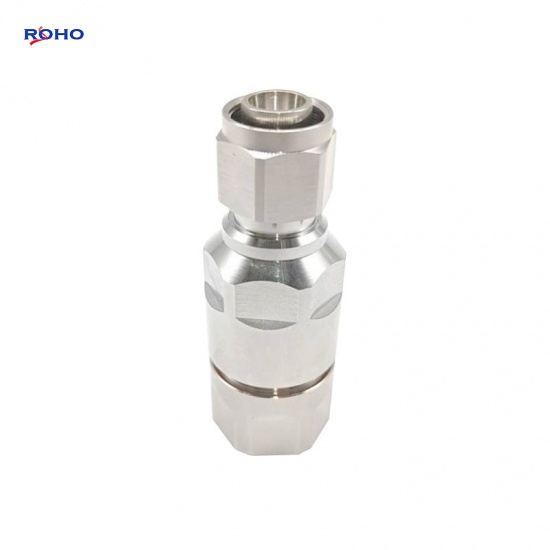

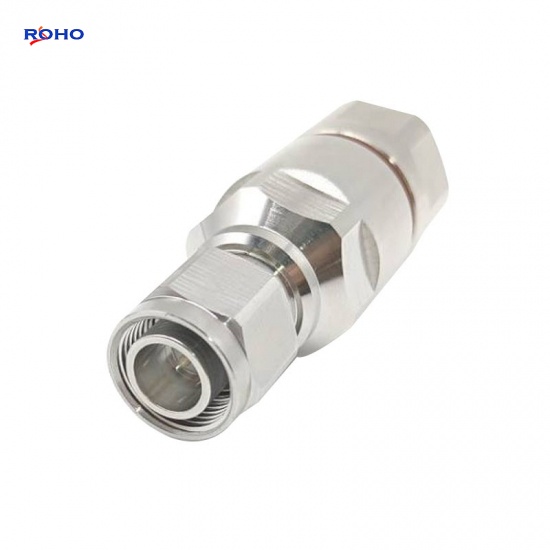

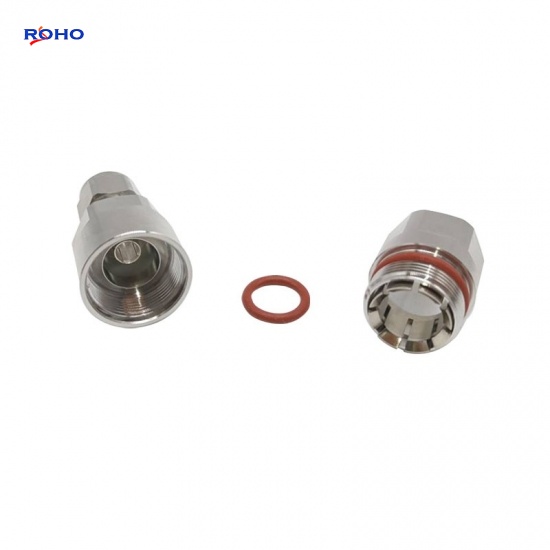

High Frequency 2.2-5 Male RF Coaxial connector for Super flexible 1/2 Cable

Features

  • 53% smaller than the 4.3-10 series;
  • Supports up to 1/2” diameter cable;
  • Push-pull and threaded coupling mechanisms available;
  • Excellent low PIM performance;
  • Can be Customized for unique material or performance requirement;
  • OEM & ODM available for special design with competitive Factory price.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

High Frequency 2.2-5 Male RF Coaxial connector for Super flexible 1/2 Cable



The 2.2-5 RF connectors are designed to meet the needs of applications which require low PIM in order to avoid interference in network quality during high speed data transmission. It offers flexibility in installation with the ability to blind mate;This RF coaxial connectors are lightweight and can accommodate various cable types. The robust design makes these connectors ideal for both indoor and outdoor applications.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range DC 3 - 20 GHz
Voltage Rating 500 Volts RMS Continuous
Dielectric Withstanding Voltage 1500 VRMS Min
Insulation Resistance  3000 MΩ Min
Center Contact Resistance 2 mΩ Max
Outer Contact Resistance 1 mΩ Max
RF Leakage -100 dB Max (DC - 3 GHz)
Insertion Loss .03 √(f(GHz)) dB Max
Passive Intermodulation (PIM) -166 dBc
Power Handling 250 W
ENVIRONMENTAL DATA
Temperature Range -40⁰C to +85⁰C
MATERIAL DATA
Bodies Brass--ternary alloy plating
Pin contacts Brass--Au/Ag plating
Socket contacts Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules Copper--ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Small Cells
  • Mobile Networks
  • Distributed Antenna Systems (DAS)
  • Low Power Base Stations
