2.2-5 Connectors

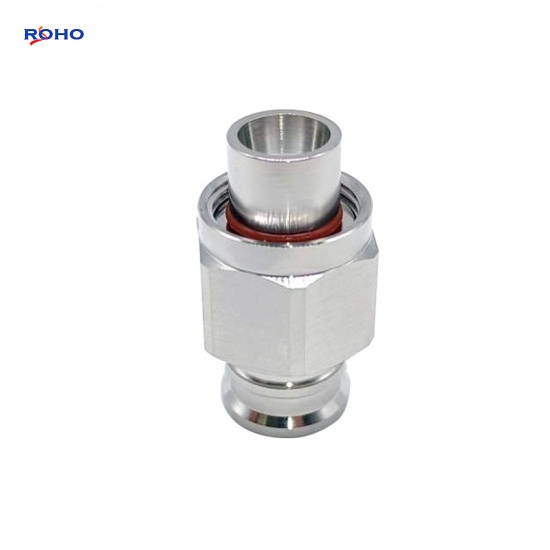

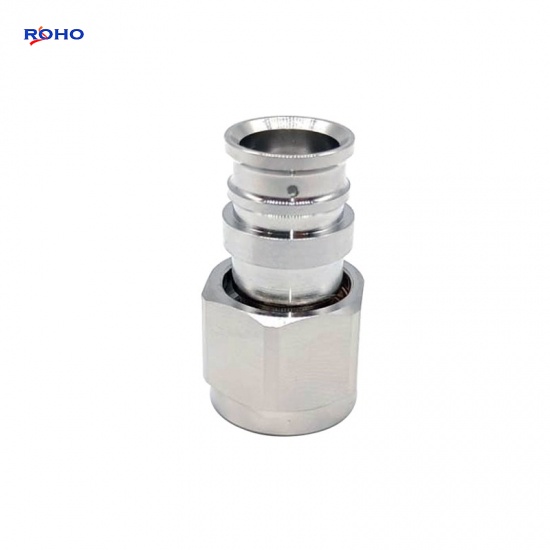

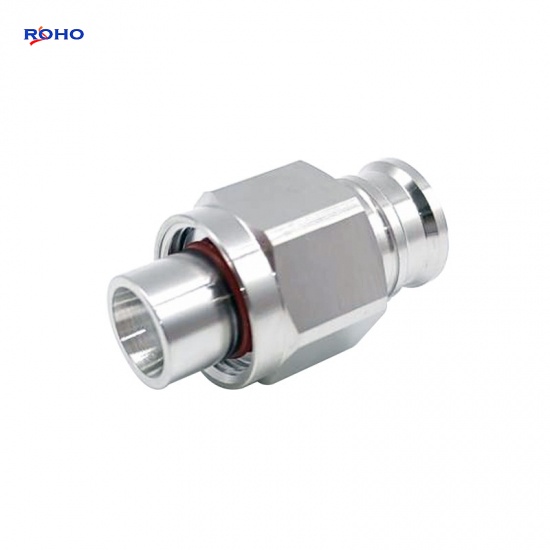

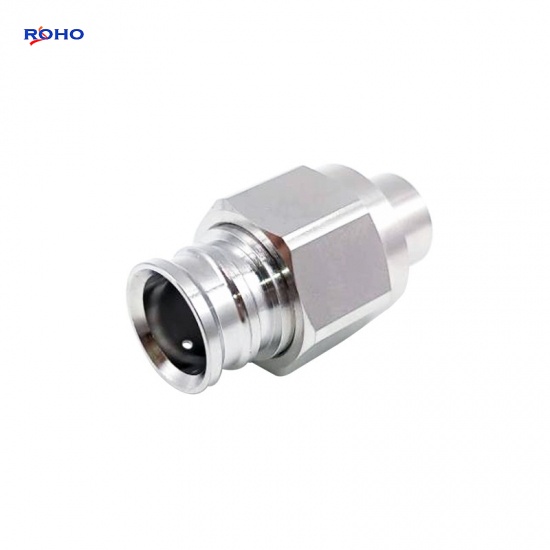

Factory Price 2.2-5 Male Low PIM Connector Solder Attachment for .250" RG401 Cable

2.2-5 features

  • Can terminate to coaxial;
  • Can be male or female gender in standard polarity, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead or mount-less;
  • Attachment methods include clamp/solder or solder/solder.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Factory Price 2.2-5 Male Low PIM Connector Solder Attachment for .250" RG401 Cable



The 2.2-5 RF connectors are designed to meet the needs of applications which require low PIM in order to avoid interference in network quality during high speed data transmission. It offers flexibility in installation with the ability to blind mate;  and frequency max up to 6GHz; this 2.2-5 male connector has an interface type of .250" RG401 Cable and a 50ohm impedance, attachment method uses shield/contact solder/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range 6GHz
Voltage Rating 500 Volts RMS Continuous
Dielectric Withstanding Voltage 1500 VRMS Min
Insulation Resistance  3000 MΩ Min
Center Contact Resistance 2 mΩ Max
Outer Contact Resistance 1 mΩ Max
RF Leakage -100 dB Max (DC - 3 GHz)
Insertion Loss .03 √(f(GHz)) dB Max
Passive Intermodulation (PIM) -166 dBc
Power Handling 250 W
ENVIRONMENTAL DATA
Temperature Range -40⁰C to +85⁰C
MATERIAL DATA
Bodies Brass--ternary alloy plating
Pin contacts Brass--Au/Ag plating
Socket contacts Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules Copper--ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Small Cells
  • Mobile Networks
  • Distributed Antenna Systems (DAS)
  • Low Power Base Stations
