N Type Terminators

2W N Type Male Connector Termination DC-3GHz/6GHz 50ohm RF Coaxial Fixed Terminator Dummy Load

Features:

  • High Peak Power;
  • Low VSWR;
  • Multiple IP Degree Conditions;
  • Powers 2W to 500W;
  • Low PIM Performance;
  • N,DIN, 4.3-10 Connectors;
  • Low Cost Design, Design to Cost.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

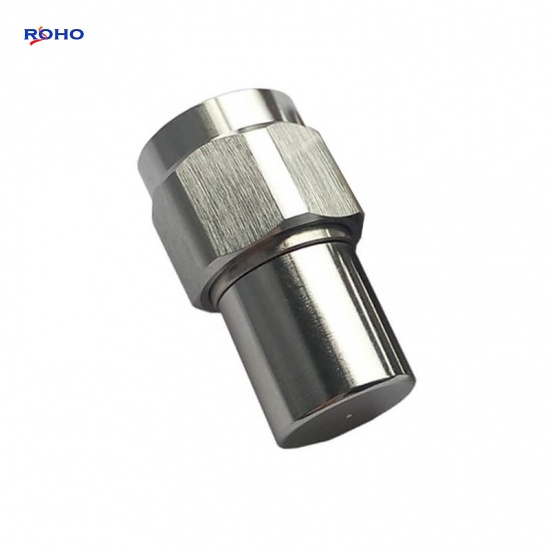

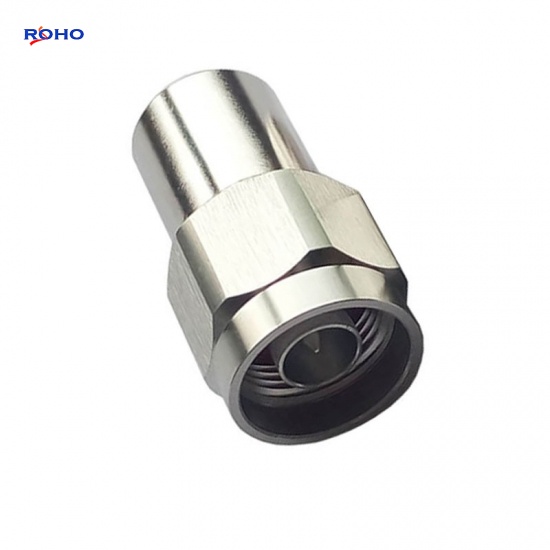

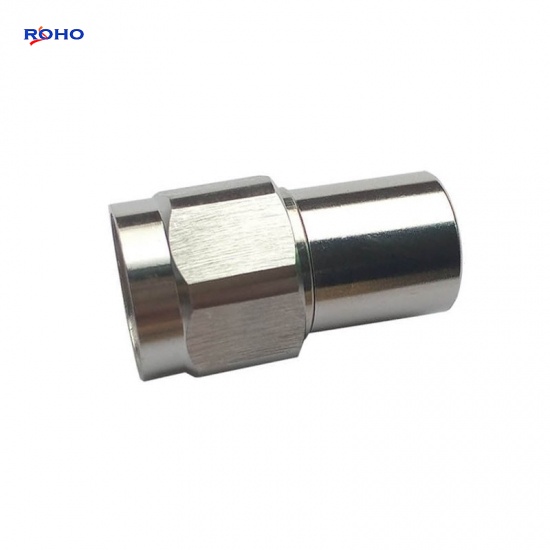

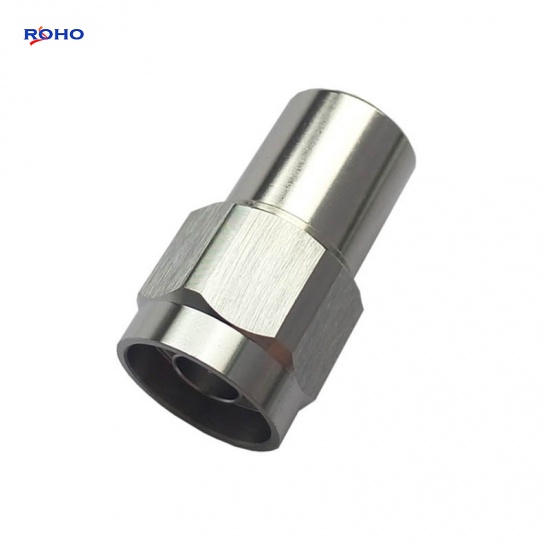

2W N Type Male Connector Termination DC-3GHz/6GHz 50ohm RF Coaxial Fixed Terminator Dummy Load



The 2W N dummy load (also known as 2W N termination or 2W N RF load) has a type N connector that is male. This 2W type N male load / termination is rated for a maximum frequency of 6GHz. ROHO's N type male termination load is a rf load termination with a 50ohm impedance; This type N load / coax terminator has an average maximum VSWR of 1.2:1. The 2W N type male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/6GHz
Connector N Male
VSWR ≤1.2
Power 2W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate or Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
