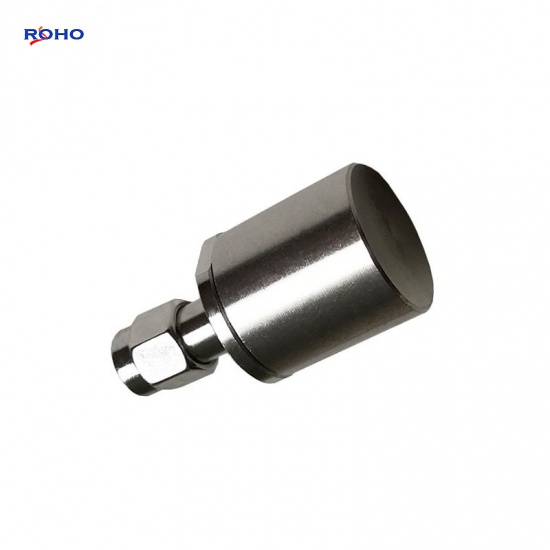

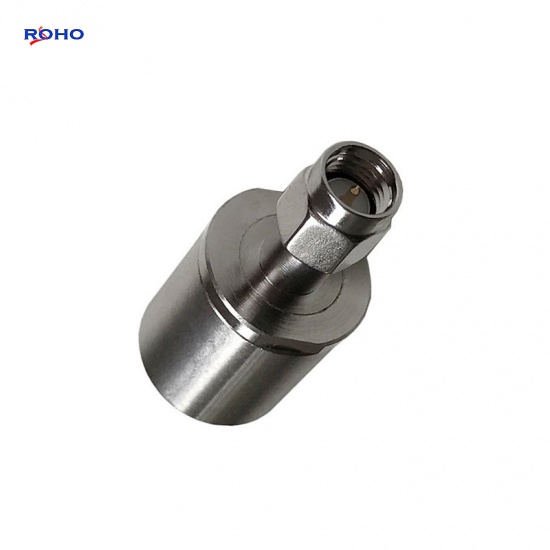

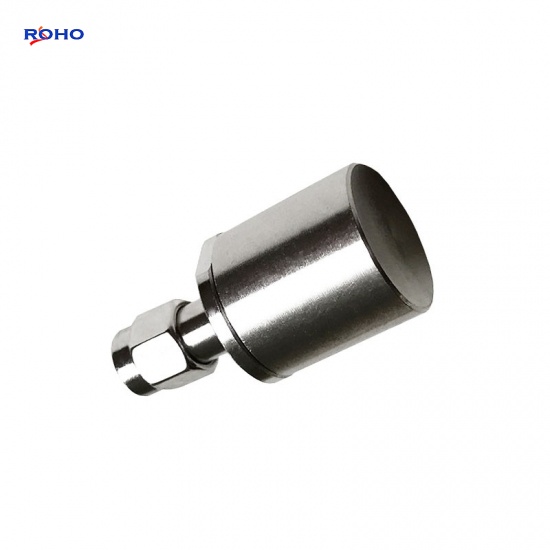

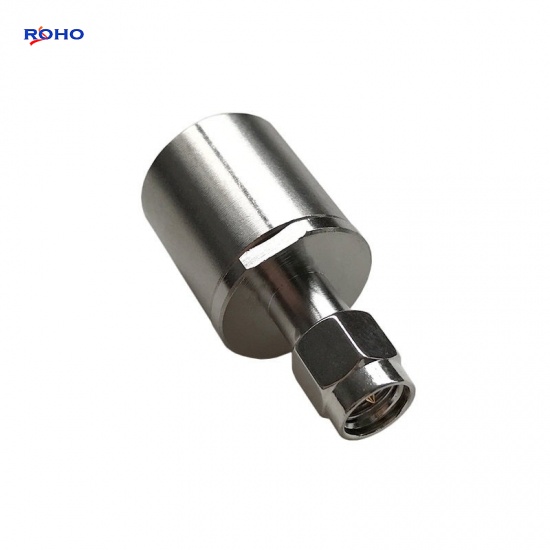

2W SMA Male Connector Termination Dummy Load 50ohm DC-3GHz/6GHz Terminator
The 2W SMA dummy load (also known as 2W SMA termination or 2W SMA RF load ) has a SMA connector that is male. This 2W SMA male load / termination is rated for a maximum frequency of 6GHz. ROHO's SMA male termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 2W SMA male load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
ELECTRICAL DATA | |
Frequency | DC~3GHz/6GHz |
Connector | SMA Male |
VSWR | ≤1.2 |
Power | 2W |
Impedance | 50Ω |
Temperature Range | -55℃~+125℃ |
MATERIAL DATA | |
Connector body | Stainless Steel,Passivate or Brass,Plating Ni |
Insulator | PTFE |
Inner Conductor | Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
