2.92mm/3.5mm Connectors

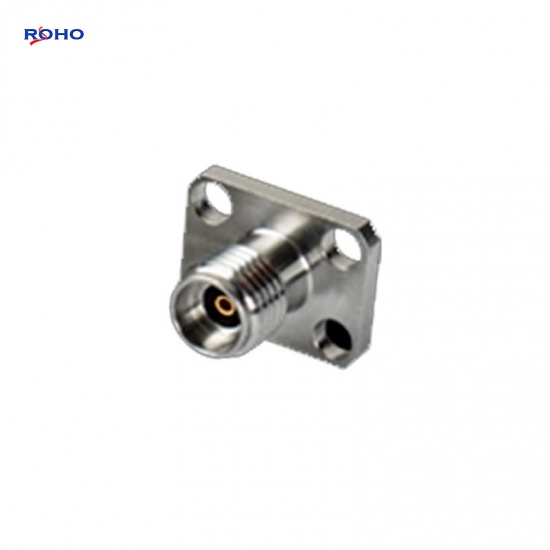

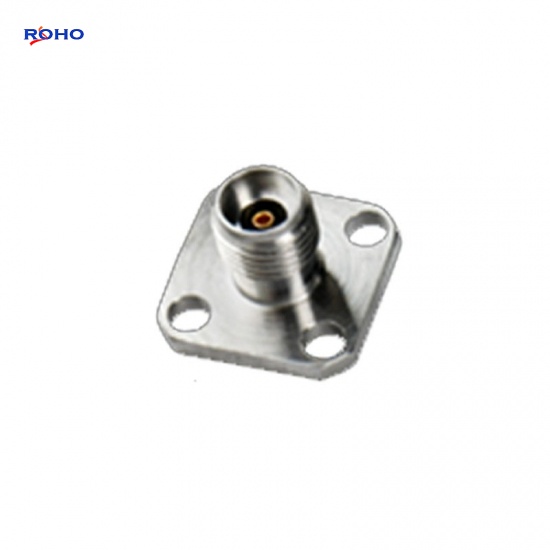

3.5mm Precision Female Connector Panel jack-accepts pin 4 holes

Features:

  • Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations;
  • 40 GHz 3.5mm adapter maximum frequency is provided;
  • Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N or SSMA connectors;
  • Can be Customized for unique material or performance requirement;
  • Includes bulkhead, 4 hole panel or mountless configurations;
  • OEM & ODM available for special design with competitive Factory price.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

3.5mm Precision  Female Connector Panel jack-accepts pin 4 holes



The 3.5mm RF Coaxial adapters(also known as 3.5mm, K connector, K Type, SMK adapter) have 3.5mm female, male or sexless (jack, plug or genderless) adapters (sometimes called a 3.5mm cable coupler or gender changer when same genders) are available. These female, male or sexless (jack, plug or genderless) 3.5mm adapter coaxial interconnects are between series or in-series. Our high quality 3.5mm adapter products include 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N, SMA, SMP or SSMA side 2 interfaces.



Specifications

ELECTRICAL DATA
Impedance 50 ohms
Frequency Range DC to 40 GHz
DC to 40 GHz
VSWR Straight:1.3 max
Voltage Rating (at sea level, in V rms,50Hz) 500 max
Dielectric Withstanding Voltage  (at sea level, in V rms,50Hz) 1500 max
Insulation Resistance 5000 M min
Insertion Loss 0.03 x SQRT F(GHz) max
Contact Resistance Center Contact2.0 m max
Out contanct0.4 m max
MECHANICAL DATA
Mating Threaded Connection
Durability 500 matings max
Coupling Nut Torque 8 – 10 in-lbs
Coupling Nut Retention Force 60 lbs max
Contact Captivation 6 lbs max
Cable Retention .085, SFT-316
ENVIRONMENTAL DATA
Temperature Range -55℃ to +125℃
Thermal Shock US MIL- STD 202, Meth. 107, Cond. B
Vibration US MIL- STD 202, Meth. 204, Cond. D
Corrosion MIL-STD-202,Method 101,Condition B
Temperature Cycling MIL-STD-202F, Method 213B, Condition A
MATERIAL DATA
Connector Body Steel, CRES Alloy Type 303Passivated Plating
Center Contact--Male Beryllium Copper per QQ-C-530Gold Plating
Center Contact--Female Beryllium Copper per QQ-C-530Gold Plating
Insulator PEEK



Applications

  • 5G Wireless Communication
  • high-frequncy products
  • test sets
  • instrumentation cables
