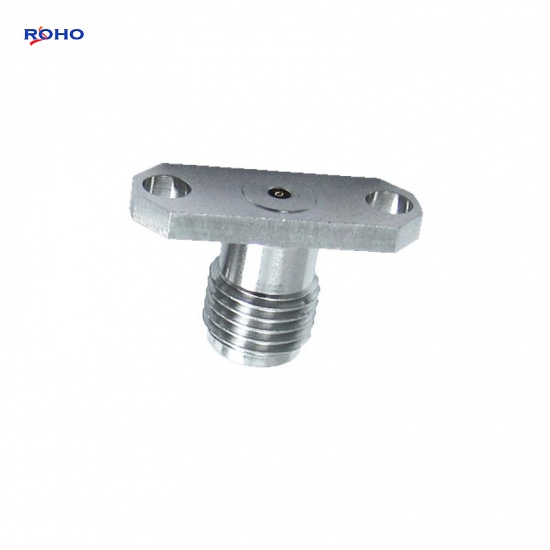

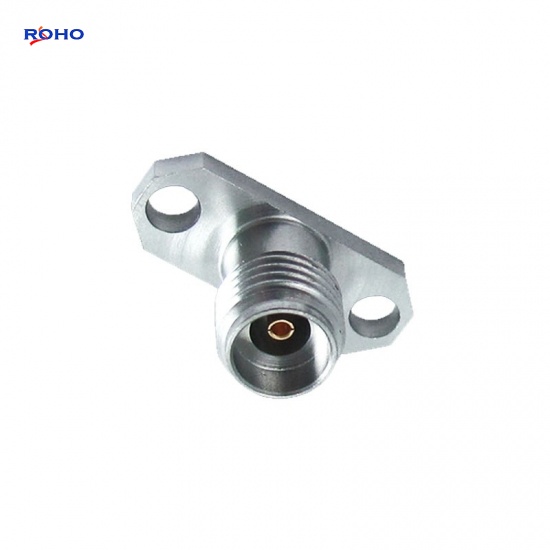

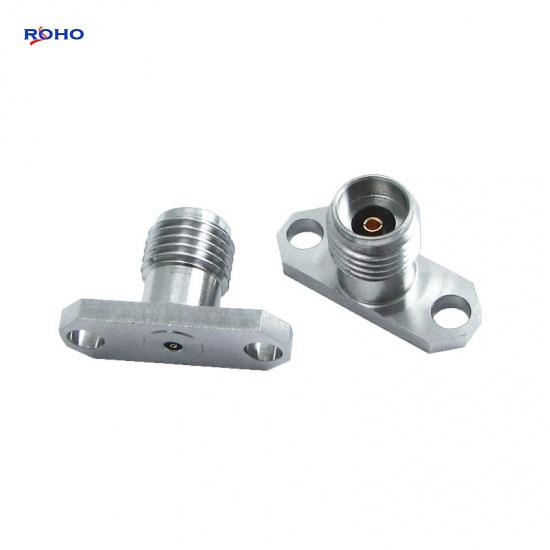

Precision 2.92mm Female RF Connector with Panel Jack-accepts Pin 2 Holes
The 2.92mm RF Coaxial adapters(also known as 2.92mm, K connector, K Type, SMK adapter) have 2.92mm female, male or sexless (jack, plug or genderless) adapters (sometimes called a 2.92mm cable coupler or gender changer when same genders) are available. These female, male or sexless (jack, plug or genderless) 2.92mm adapter coaxial interconnects are between series or in-series. Our high quality 2.92mm adapter products include 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N, SMA, SMP or SSMA side 2 interfaces.
Specifications
| ELECTRICAL DATA | |
| Impedance | 50 ohms |
| Frequency Range | DC to 40 GHz |
| VSWR | Straight：1.3 max |
| Voltage Rating (at sea level, in V rms,50Hz) | 500 max |
| Dielectric Withstanding Voltage (at sea level, in V rms,50Hz) | 1500 max |
| Insulation Resistance | 5000 M min |
| Insertion Loss | 0.03 x SQRT F(GHz) max |
| Contact Resistance | Center Contact：2.0 m max |
| Out contanct：0.4 m max | |
| MECHANICAL DATA | |
| Mating | Threaded Connection |
| Durability | 500 matings max |
| Coupling Nut Torque | 8 – 10 in-lbs |
| Coupling Nut Retention Force | 60 lbs max |
| Contact Captivation | 6 lbs max |
| Cable Retention | .085, SFT-316 |
| ENVIRONMENTAL DATA | |
| Temperature Range | -55℃ to +125℃ |
| Thermal Shock | US MIL- STD 202, Meth. 107, Cond. B |
| Vibration | US MIL- STD 202, Meth. 204, Cond. D |
| Corrosion | MIL-STD-202，Method 101,Condition B |
| Temperature Cycling | MIL-STD-202F, Method 213B, Condition A |
| MATERIAL DATA | |
| Connector Body | Steel, CRES Alloy Type 303，Passivated Plating |
| Center Contact--Male | Beryllium Copper per QQ-C-530，Gold Plating |
| Center Contact--Female | Beryllium Copper per QQ-C-530，Gold Plating |
| Insulator | PEEK |
Applications
- 5G Wireless Communication
- test sets
- instrumentation cables
- high-frequncy products
