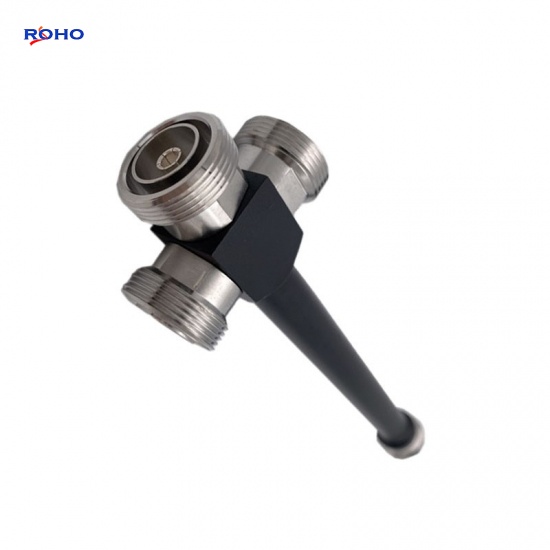

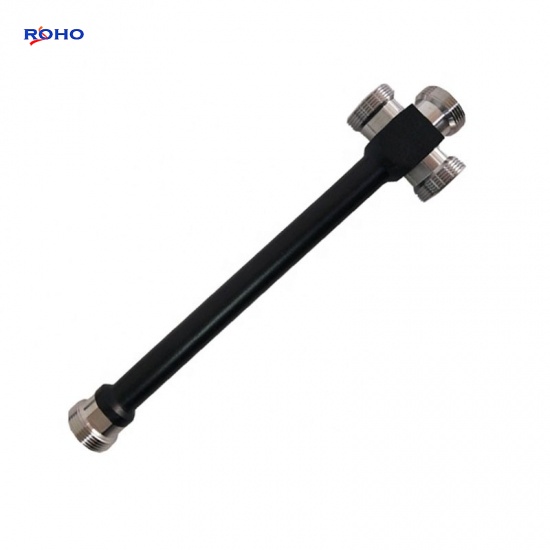

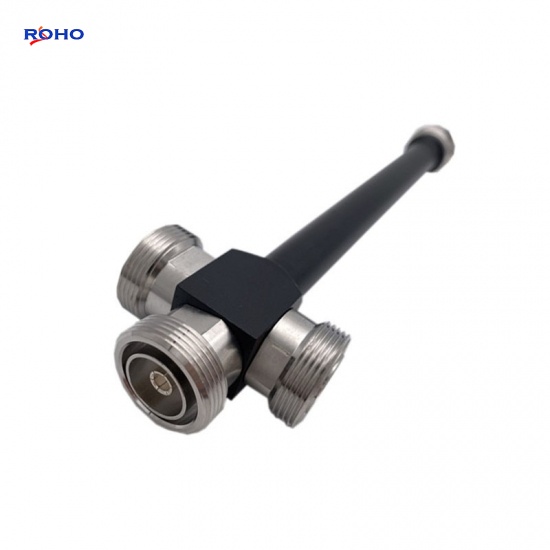

3 Way Base Station Round Cavity Power Splitter Divider 698-4000MHz PIM3 160dBc DIN 7-16 Female Connectors
The 3 way 7-16 DIN coaxial power splitter (also known as 7-16 DIN power divider) is rated for a minimum frequency of 698MHz and a maximum frequency of 4GHz. This 3 port 7-16 DIN power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 300 Watts. ROHO's 7-16 DIN coaxial RF splitter / divider has a female 7-16 DIN input and 3 female 7-16 DIN output ports;This 3 way 7-16 DIN RF power divider is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this 7-16 DIN reactive splitter / divider is 1.25:1 and the minimum isolation is 0 dB. The 3 port 7-16 DIN power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.
Specifications
| Electrical Specifications | |
| Frequency Range(MHz) | 698-4000 |
| Type | 3 Way |
| Impedance(Ω) | 50 |
| Average Power(W) | 300W |
| VSWR | ≤1.25 |
| Split Loss(dB) | ≤4.8 |
| Insertion Loss(dB) | ≤0.4 |
| PIM (dBc) | ≤-150dBc@2*43dBm;≤-160dBc@2*43dBm;Or specify |
| RF Connector Interface | DIN 7-16 Female |
| Environmental Specifications | |
| IP Grade | IP65 |
| Operating Temperature(℃) | -35~ +65 |
| Relative Humidity | 5%-95% |
| Application | Indoor or Outdoor |
Applications
- In-building Distribution System and Mobile Communication Network Optimization;
- Split the one Input signal into 2,3 or more paths in telecommunication applications;
- Radar, electronic navigation and electric confrontation;
- Aerospace equipment systems;
- Cluster communication, satellite communication, shortwave communication and hopping radio.
