CATV Splitters

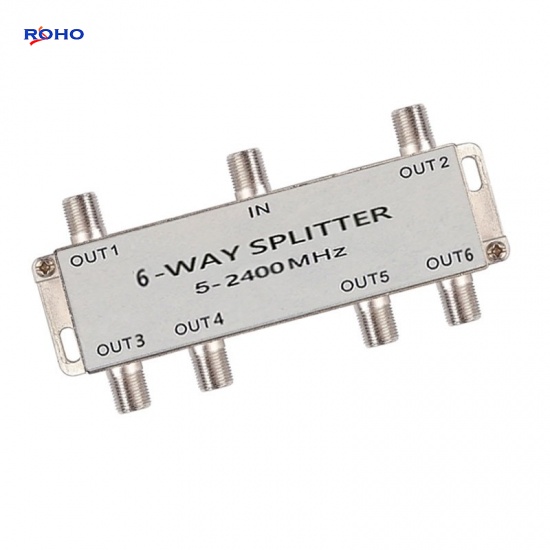

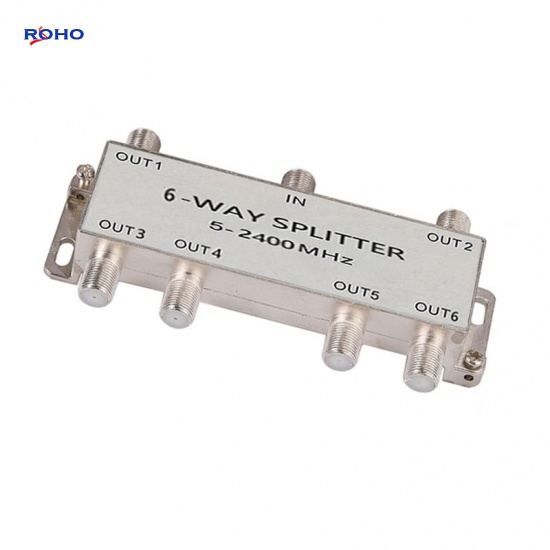

6 way 5-2400MHz splitter CATV TV Satellite Antenna signal splitter For TV Satellite Receiver

Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Easy installation with two edge hole sites
  • Low insertion loss, high isolation, perfect performance index
  • Designed for SATV/CATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75Ohm
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

6 way 5-2400MHz splitter CATV TV Satellite Antenna signal splitter For TV Satellite Receiver



The CATV Splitters manage connections between one input and multiple outputs. They are very useful for systems where a signal from one device can be shared with multiple devices. Using these splitters, you can enjoy high-fidelity and stunningly realistic audio/video that only superior splitters can deliver;ROHO Manufacturing 1 in 6 out 5-2400MHZ RF Splitter will allow you to transfer data up to 6 output sources from 1 input video source without compromising the strength of the signal. With the F-type connector, the splitter fastens the coaxial cables securely, ensuring that the transmission of information will be continuous. By using our splitter, you will be able to enjoy high-fidelity and stunningly realistic high-definition audio and video through devices throughout the premises.



Specifications

Frequency Range 5~2400MHz
Inputs 1 SAT(F connector)
Outputs 6 Receiver(F connector)
Insertion Loss[dB] 5~47MHz ≦ 9.3
48~750MHz ≦ 9.5
751~1218MHz ≦ 10.6
1218~2150MHz ≦ 10.6
2151~2400MHz ≦ 12.1
Return Loss(IN-OUT)[dB] 5~47MHz ≥ 18
48~750MHz ≥ 20
751~1218MHz ≥ 20
1218~2150MHz ≥ 17
2151~2400MHz ≥ 17
Isolation(OUT-OUT)[dB] 5~47MHz ≥ 18
48~750MHz ≥ 20
751~1218MHz ≥ 20
1218~2150MHz ≥ 19
2151~2400MHz ≥ 19
Female to Female 75
F Connector Type Female to Female



Applications

  • Used for splits a single digital signal to up to 2 /3/4 devices.
  • Designed for use with HD TV signals, satellite TV, and high speed INTERNET modems as well as cable TV, amplified Antennas, amplifiers, and other coaxial devices.
  • Compatible with RG59 and RG6 coax cable.
