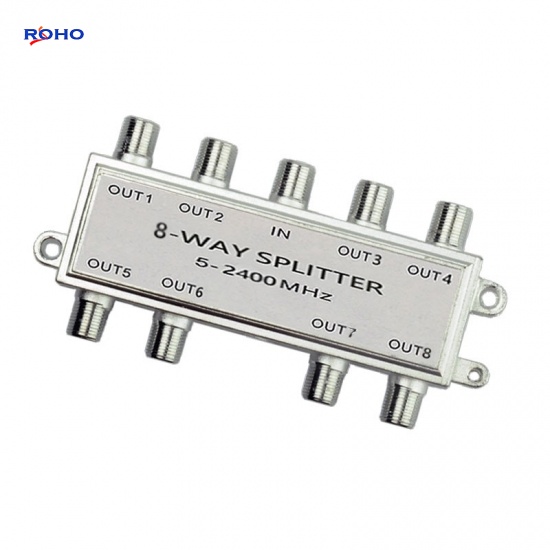

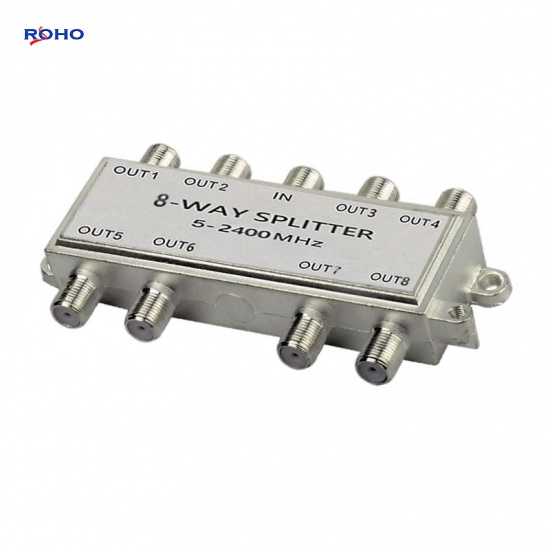

8 Way Antenna TV Wide Band Satellite Catv Splitters 5-2400MHz Satellite Splitter
The CATV Splitters manage connections between one input and multiple outputs. They are very useful for systems where a signal from one device can be shared with multiple devices. Using these splitters, you can enjoy high-fidelity and stunningly realistic audio/video that only superior splitters can deliver;ROHO Manufacturing 1 in 8 out 5-2400MHZ RF Splitter will allow you to transfer data up to 8 output sources from 1 input video source without compromising the strength of the signal. With the F-type connector, the splitter fastens the coaxial cables securely, ensuring that the transmission of information will be continuous. By using our splitter, you will be able to enjoy high-fidelity and stunningly realistic high-definition audio and video through devices throughout the premises.
Specifications
Frequency Range | 5~2400MHz | |
Inputs | 1 SAT(F connector) | |
Outputs | 8 Receiver(F connector) | |
Insertion Loss[dB] | 5~47MHz | ≦ 10.8 |
48~750MHz | ≦ 11.0 | |
751~1218MHz | ≦ 12.2 | |
1218~2150MHz | ≦ 12.6 | |
2151~2400MHz | ≦ 13.6 | |
Return Loss(IN-OUT)[dB] | 5~47MHz | ≥ 18 |
48~750MHz | ≥ 21 | |
751~1218MHz | ≥ 21 | |
1218~2150MHz | ≥ 18 | |
2151~2400MHz | ≥ 18 | |
Isolation(OUT-OUT)[dB] | 5~47MHz | ≥ 19 |
48~750MHz | ≥ 20 | |
751~1218MHz | ≥ 20 | |
1218~2150MHz | ≥ 19 | |
2151~2400MHz | ≥ 19 | |
Female to Female | 75 | |
F Connector Type | Female to Female |
Applications
- Used for splits a single digital signal to up to 2 /3/4 devices.
- Designed for use with HD TV signals, satellite TV, and high speed INTERNET modems as well as cable TV, amplified Antennas, amplifiers, and other coaxial devices.
- Compatible with RG59 and RG6 coax cable.
