F Type Connectors

Hot Sale F Male Plug Connector Crimp Solder Attachment Connector for RG6 Coaxial Cable

F type features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be male or female gender, with 50 or 75 Ohm impedance;
  • Body can be straight or right angle;
  • Mount method can be bulkhead, 4 hole panel or or mount-less;
  • Attachment methods include compression, crimp/solder, solder or twist;
  • Body is brass, zinc alloy or stainless steel.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

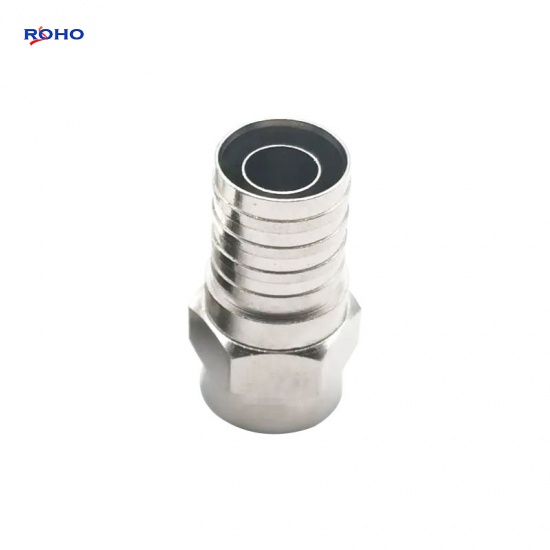

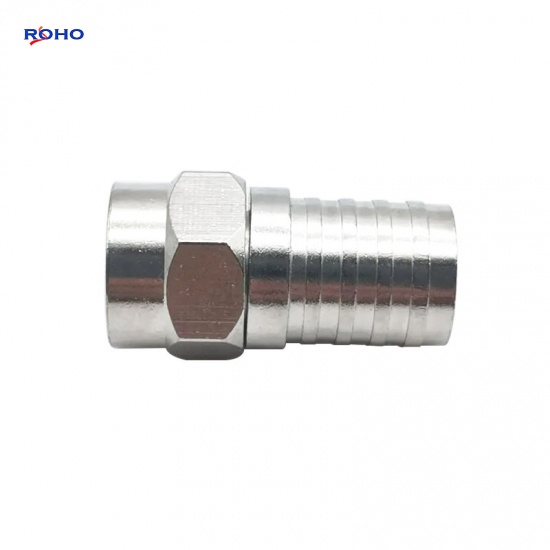

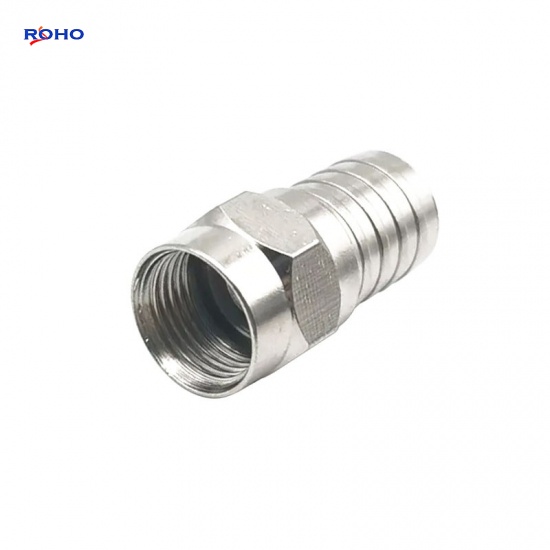

Hot Sale F Male Plug Connector Crimp Solder Attachment Connector for RG6 Coaxial Cable



The F type connector is 50 ohm- 75 ohm product designed for a wide range of coaxial cable. F-Type connector is a threaded alternative to the slide-on G-Type connector;The F Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems. frequency max up to 2GHz; this F type male coaxial connector has an interface type of RG6 and a 75ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                        75Ω
Frequency Range 1GHz
Working Voltage 170V max
Withstand Voltage 500V rms
Contact Resistance Inner conductor: 10mΩ
Outer conductor: 5mΩ
Insulation Resistance 1000mΩ
VSWR straight 1.2
right angle 1.3
MECHANICAL DATA
Durability     500 cycles
Vibration 100m/s2(10-500Hz)
ENVIRONMENTAL DATA
Temperature Range -40°C  to +60°C
MATERIAL DATA
Shell Brass--Ni plated
Pin contactor Brass--Au / Ag plated
Elastic contact Beryllium / Tin brass--Au / Ag plated
Crimping suite Copper alloy--Ni / Au plated
O-ring sealing Silastic
Insulator PTFE



Applications

  • Set Top Boxes
  • Head End Equipment
  • CATV
  • High Speed Cable Modems
  • Hybrid Fiber Coax Networks
  • CIMs
