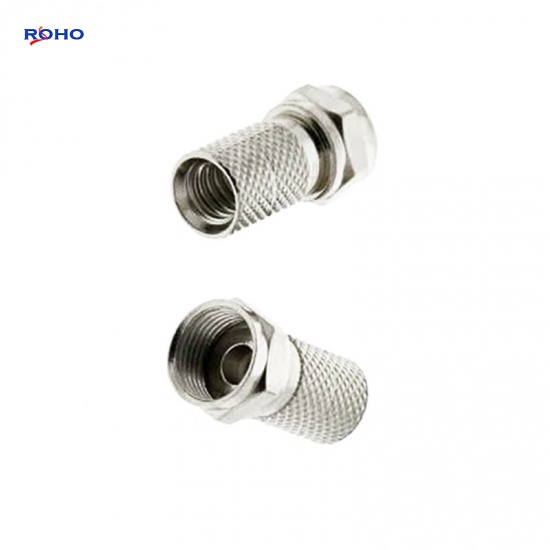

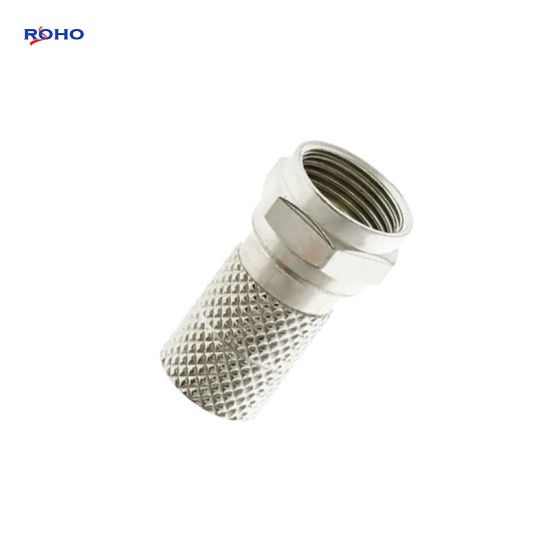

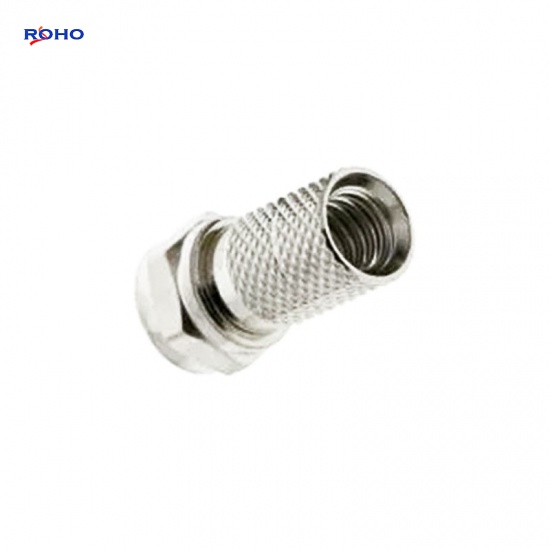

Straight RF Coaxial Plug Male F Connector for RG59 RG62 RG71 Cable
The F Type connector is 50 ohm- 75 ohm product designed for a wide range of coaxial cable. F-Type connector is a threaded alternative to the slide-on G-Type connector;The F Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
Specifications
Mechanical Characteristics | |
Temperature Range | -40°C to +60°C |
Vibration | 100m/s2(10-500Hz) |
Impedance | 75Ω |
Frequency Range | DC - 1 GHz (DC - 3 GHz on Extended Range Designs) |
Working Voltage | 170V max |
Withstand Voltage | 500V rms |
Contact Resistance | Inner conductor: ≤10mΩ |
Outer conductor: ≤5mΩ | |
Insulation Resistance | ≥1000mΩ |
VSWR | straight ≤1.2 |
right angle ≤1.3 | |
Durability | ≥500 cycles |
Material | |
Shell | Brass--Ni plated |
Pin contactor | Brass--Au / Ag plated |
Elastic contact | Beryllium / Tin brass--Au / Ag plated |
Crimping suite | Copper alloy--Ni / Au plated |
O-ring sealing | Silastic |
Insulator | PTFE |
Applications
- Set Top Boxes
- Head End Equipment
- CATV
- High Speed Cable Modems
- Hybrid Fiber Coax Networks
- CIMs
