7-16 DIN Female to 7-16 DIN Jack Connector Adapter

7-16 DIN adapters Features:

  • Allow to interface 7-16 DIN connectors with 7-16 DIN, 4.3-10, N, SMA or TNC connectors;
  • Very robust, extremely stable and waterproof;
  • Has straight or right angle versions;
  • Offers standard, low PIM or high performance options.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

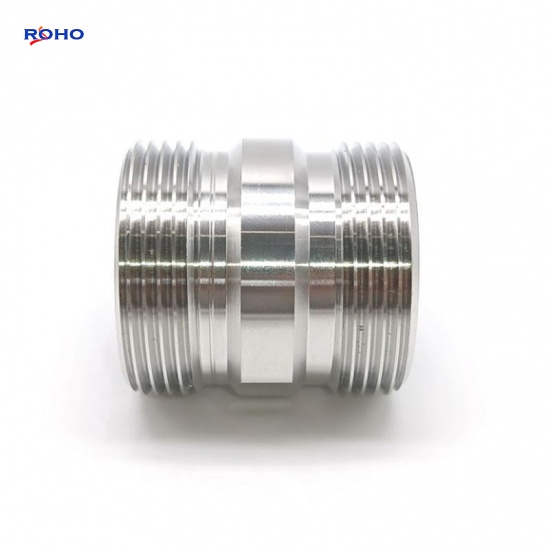

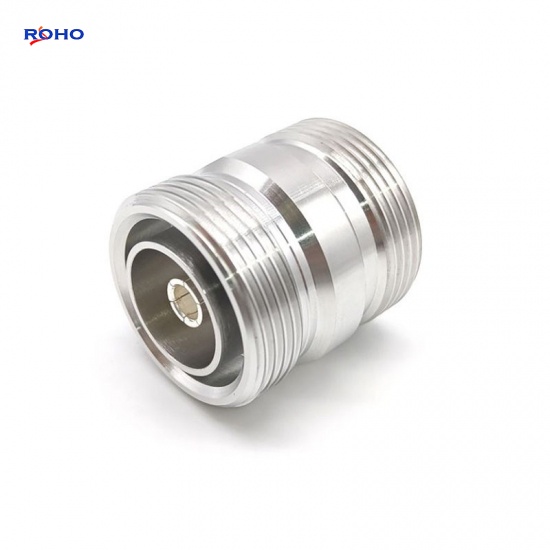

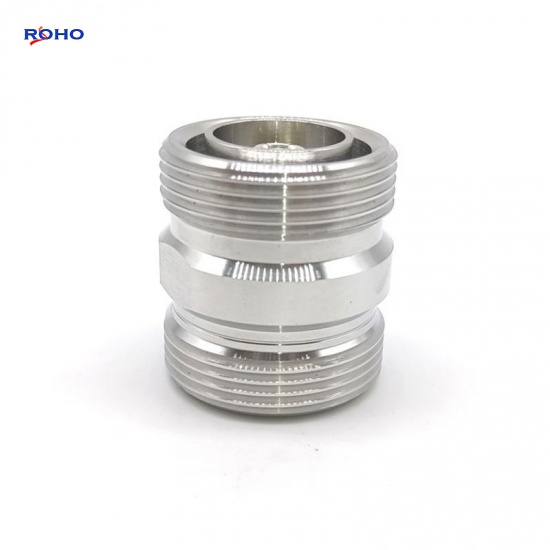

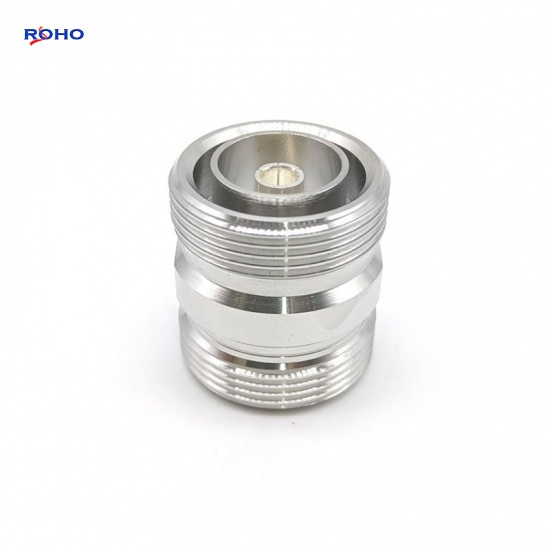

7-16 DIN Female to 7-16 DIN Jack Connector Adapter



The 7-16 DIN Adapter has different 7-16 DIN to 7-16 DIN adapter gender.The 7-16 DIN to 7-16 DIN adapters has female to female, male to female or male to male gender.  it has straight or right angle shape, and you can select bulkhead or mountless configurations. ROHO offers 7-16 DIN to 7-16 DIN adapters in standard or low PIM designs. This 7-16 DIN female to 7-16 DIN female adapter has a maximum frequency of 8GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 7-16 DIN
Adapter Side 1 Style Female/Jack
Adapter Side 2 Series 7-16 DIN
Adapter Side 2 Style Female
Frequency (Max GHz) 8
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Wireless LAN
  • Broadcast systems
  • Outdoor antennas
  • Radar equipment
  • Microwave Radio
  • Base stations
  • Satellite systems
