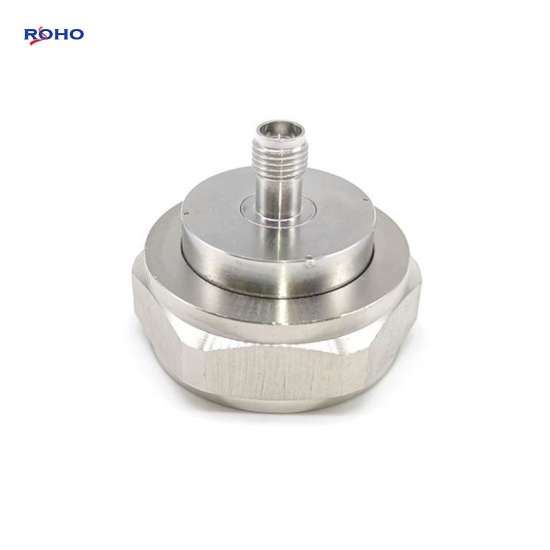

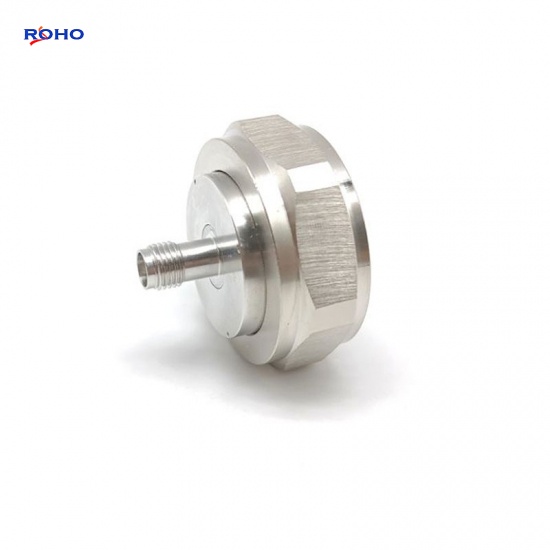

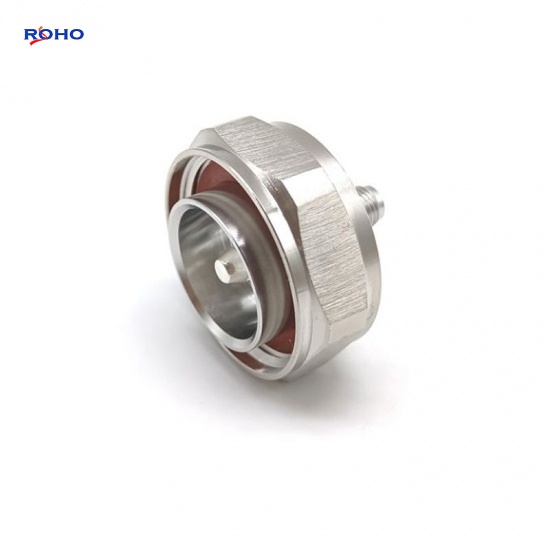

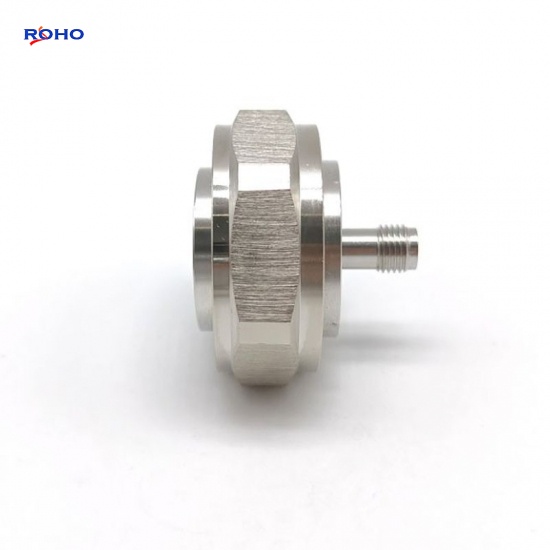

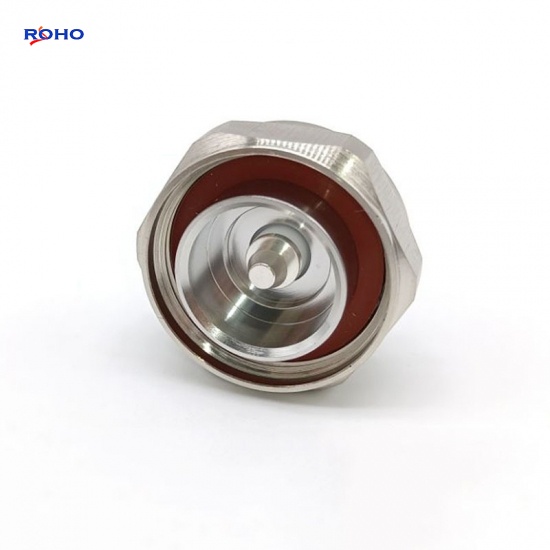

7-16 DIN Male to SMA Female RF Connector Adapter
The 7-16 DIN Adapter has different 7-16 DIN to SMA adapter gender. The 7-16 DIN to SMA adapters has female to female, female to male, male to female or male to male gender. ROHO offers 7-16 DIN to N adapters in standard or low PIM designs. This 7-16 DIN male to SMA female adapter has a maximum frequency of 8GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | 7-16 DIN |
Adapter Side 1 Style | Male |
Adapter Side 2 Series | SMA |
Adapter Side 2 Style | Female |
Frequency (Max GHz) | 8 |
Impedance (Ohms) | 50 |
Low PIM | NO |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- Wireless LAN
- Broadcast systems
- Outdoor antennas
- Radar equipment
- Microwave Radio
- Base stations
- Satellite systems
