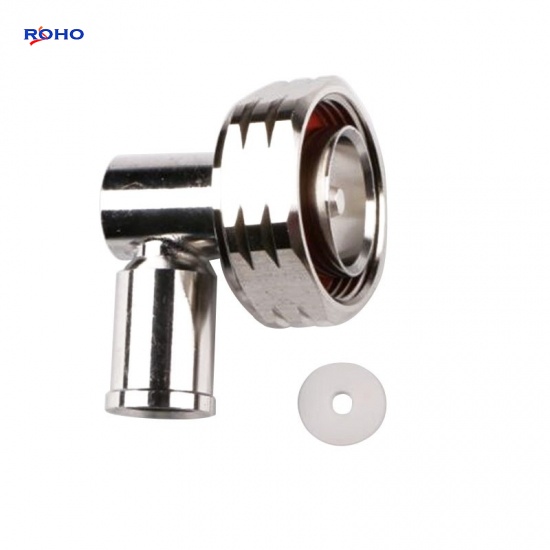

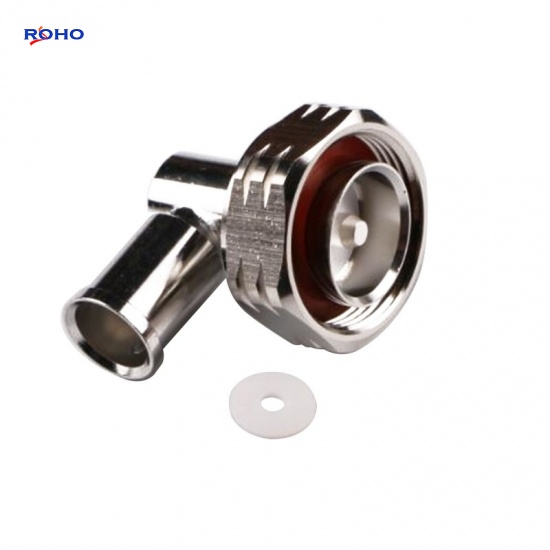

7-16 DIN Male Right Angle Low PIM Connector Solder Attachment for 1/4" Superflexible
The 7-16 DIN connector are from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact; These RF coaxial connectors are very robust, extremely stable and waterproof, frequency max up to 7.5GHz; this 7-16 DIN male coaxial connector has an interface type of 1/4" superflexible cable and a 50ohm impedance, attachment method uses shield/contact clamp/non-solder contact, its straight body is brass with ternary alloy plating.
Specifications
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 6GHz |
| Dielectric withstanding voltage (at sea level) | 4000 V rms,50Hz |
| Working voltage (at sea level) | 2500 V rms,50Hz |
| Insulation resistance | ≥ 100000 mΩ |
| Contact resistance | Inner conductor: ≤0.4mΩ |
| Outer conductor: ≤1.5mΩ | |
| RF leakage (at 1 GHz) | ≥128dB |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
| Proof torque: 35 Ncm / 310 in.lbs | |
| Coupling nut retention force | ≥1000N / 225.0 lbs |
| Contact captivation | ≥200N / 45.0 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--ternary alloy plating |
| Pin contacts | Brass--Au/Ag plating |
| Socket contacts | Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules | Copper--ternary alloy plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
Applications
- Wireless Infrastructure
- Base Stations
- Lightning Protection
- Satellite Communications
- Antenna Systems
