RF connector connection may be known to many people, such as snap-on, threaded, blind-plug, etc., but the connection method of the back-end may not be known. This is also a very important piece of knowledge of the RF connector. Will have a certain impact on the product.

    There are three types of backend connections for RF connectors:

    One is the connecting panel, which can be divided into two types of connection, which are locked by screws or nut washers.

    1, panel perforation

    2, the veneer

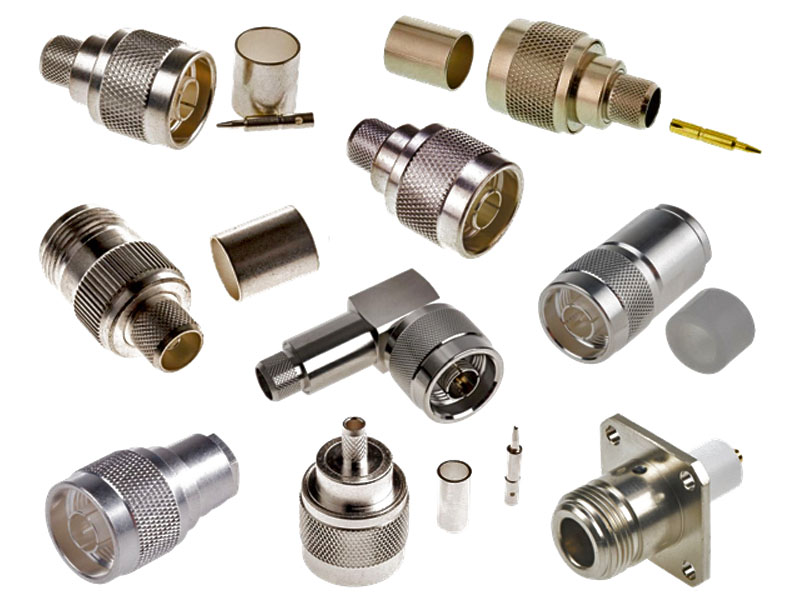

    The second is to connect cables, which can be divided into the following five wiring methods.

    1, the inner and outer conductors are crimped

    2, the inner conductor is crimped, and the outer conductor is welded

    3, the inner conductor is welded, and the outer conductor is crimped

    4, the inner conductor is welded, and the outer conductor is screwed

    5, the inner conductor is crimped, and the outer conductor is screwed

    The third is to connect the PCB, which can be divided into four connection methods:

    1, piercing welding

    2, card board welding

    3, shrapnel crimp

    4, plate weldin
