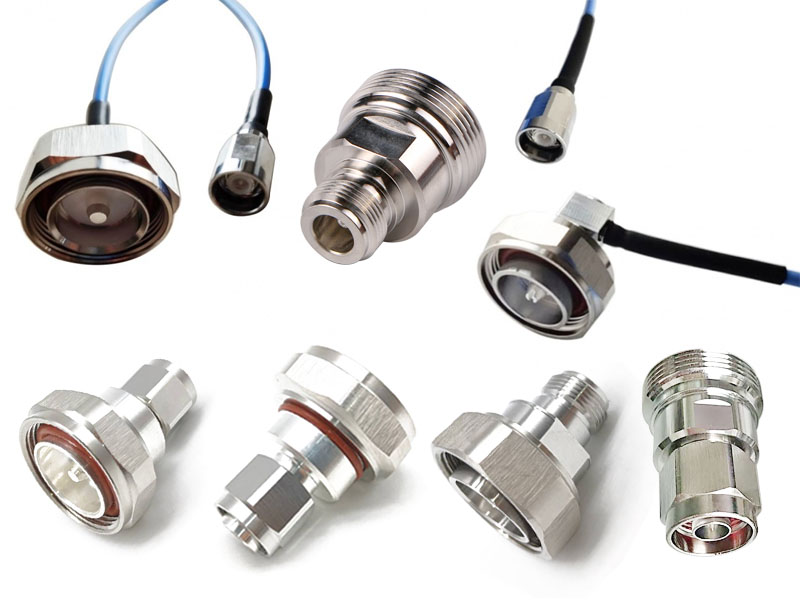

In the realm of high-power RF (Radio Frequency) applications, having a robust and efficient connector is essential for seamless signal transmission. One such connector that excels in both performance and reliability is the DIN 7-16 connector. In this blog, we will delve into the key features and applications of the DIN 7-16 connector.

    The DIN 7-16 connector is specifically designed for high-power RF applications and offers several outstanding features. Let's explore its key characteristics:

1. High Power Handling Capacity: The DIN 7-16 connector is renowned for its ability to handle high power levels, making it suitable for applications that require significant RF power transmission. It reliably supports power levels up to several kilowatts while ensuring minimal signal loss.

2. Low Intermodulation Distortion: One of the notable features of the DIN 7-16 connector is its low intermodulation distortion (IMD) performance. This characteristic ensures superior signal purity by minimizing unwanted signal mixing and distortion, particularly in multi-carrier RF systems.

3. Excellent Electrical Performance: The DIN 7-16 connector delivers exceptional electrical performance parameters such as low insertion loss, excellent VSWR (Voltage Standing Wave Ratio), and high isolation. These attributes contribute to efficient signal transmission and reception while maintaining signal integrity.

4. Robust and Reliable Build: The connector's rugged construction and enhanced mechanical stability allow it to withstand harsh environmental conditions. It offers excellent resistance to vibration, moisture, and temperature variations, ensuring consistent and reliable performance over an extended period.

    The DIN 7-16 connector finds wide-ranging applications across multiple industries requiring high-power RF connections. Here are a few notable application areas:

1. Mobile Communication Networks: The DIN 7-16 connector is commonly deployed in cellular communication networks, particularly in base stations and antenna systems. Its high power handling capability and low IMD performance make it crucial for maintaining reliable communication in cellular networks.

2. Broadcast Systems: Broadcasting applications, such as television and radio transmission, heavily rely on DIN 7-16 cable connectors for their superior electrical performance and power handling capacity. They ensure efficient signal transmission in broadcasting towers and studio equipment.

3. Wireless Infrastructure: The connector's ability to handle high RF power and withstand challenging outdoor conditions makes it a preferred choice in wireless infrastructure installations. It is commonly used in Wi-Fi access points, distributed antenna systems (DAS), and wireless backhaul equipment.

4. Test and Measurement: The DIN 7-16 connector is extensively employed in RF testing and measurement setups. Its low IMD performance and excellent electrical parameters make it ideal for precise measurements in network analyzers, spectrum analyzers, and signal generators.

    The DIN 7-16 connector emerges as a reliable and high-performance solution for high-power RF applications. Its characteristics, including high power handling capacity, low intermodulation distortion, excellent electrical performance, and robust build, make it an optimal choice for mobile communication networks, broadcast systems, wireless infrastructure, and test and measurement applications. With the DIN 7-16 adaptor, engineers and technicians can ensure efficient and reliable signal transmission in their high-power RF setups.
