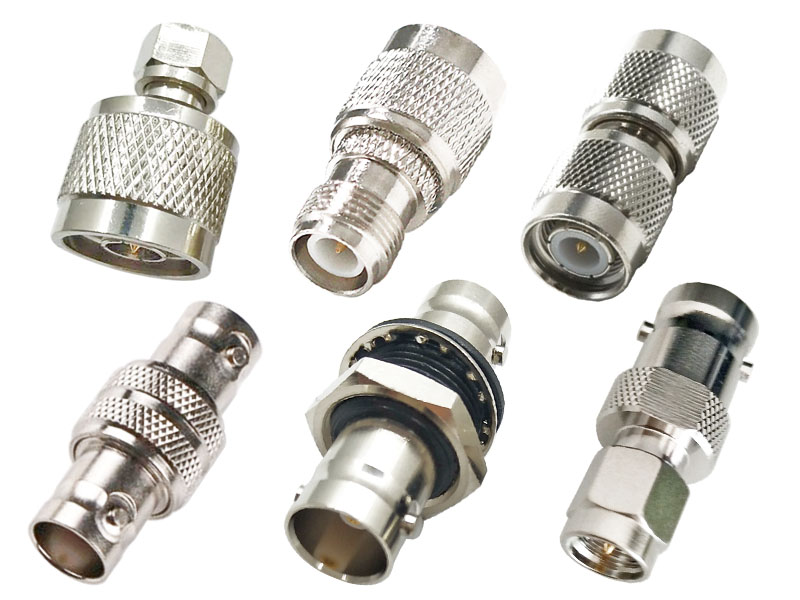

An RF connector, also known as an RF connector, is generally considered to be an element attached to a cable or mounted on an instrument as an electrical connection or separate component of the transmission line. The RF connector is a mechatronic product that serves primarily as a bridge. The following is a description of the RF connector code .
N connectors: Threaded RF coaxial connector with an outer conductor of 7 mm (0.276 in.) and a characteristic impedance of 50 Ω (75 Ω). (IEC169-16).
BNC connectors: bayonet-locked RF coaxial connector with an outer conductor of 6.5 mm (0.256 in.) and a characteristic impedance of 50 Ω. (IEC169-8).
TNC connectors: Threaded RF coaxial connector with an outer conductor inner diameter of 6.5 mm (0.256 inch) and a characteristic impedance of 50 Ω. (IEC169-17).
SMA connectors: Threaded RF coaxial connector with outer conductor inner diameter of 4.13mm (0.163 inch) and characteristic impedance of 50Ω. (IEC169-15).
SMB connectors: push-in locking RF coaxial connector with outer conductor inner diameter of 3mm (0.12 inch) and characteristic impedance of 50Ω. (IEC169-10).
SMC connectors: Threaded RF coaxial connector with outer conductor inner diameter of 3mm (0.12 inch) and characteristic impedance of 50Ω. (IEC169-9).
SSMA connectors: Threaded RF coaxial connector with outer conductor inner diameter of 2.79mm (0.11 inch) and characteristic impedance of 50Ω. (IEC169-18).
SSMB connectors: push-in locking RF coaxial connector with outer conductor inner diameter of 2.08mm (0.082 inch) and characteristic impedance of 50Ω. (IEC169-19).
SSMC connectors: a threaded RF coaxial connector with an outer conductor inner diameter of 2.08 mm (0.082 inch) and a characteristic impedance of 50 Ω. (IEC169-20).
connectors SC (SC-A and SC-B connectors): Threaded connectors with outer diameter of 9.5 mm (0.374 inch) and characteristic impedance of 50 Ω (two connectorss of different connectorss of connt-size.
APC7 connectors: Precision medium-sized RF coaxial connector with an outer conductor of 7mm (0.276 inches) and a characteristic impedance of 50Ω. (IEC457-2).
APC3.5 connectors: Threaded RF coaxial connector with outer conductor inner diameter of 3.5mm (0.138 inch) and characteristic impedance of 50Ω. (IEC169-23).
connectors K: Threaded RF coaxial connector with an outer conductor inner diameter of 2.92 mm (0.115 inch) and a characteristic impedance of 50 Ω.
OS-50 connectors: Threaded RF coaxial connector with an outer conductor inner diameter of 2.4 mm (0.095 inch) and a characteristic impedance of 50 Ω.
connectors F: Threaded RF coaxial connector used in cable distribution systems with a characteristic impedance of 75 Ω. (IEC169-24)
connectors E: Threaded RF coaxial connector used in cable distribution systems with a characteristic impedance of 75 Ω. (IEC169-27)
L-connectors: metric threaded RF coaxial connector, threaded connection size is indicated by Arabic numerals after "L".
