BNC Female to Test Antenna Coaxial Adapter

BNC Female to Mx Thread Test Antenna Adapter for Motorola Walkie Talkie HT600 P200 SP10 GP2000 GP68

BNC adapters Features：

Allow to interface BNC connectors with BNC, F, MCX, MMCX, N, RCA, SMA, SMB, TNC or UHF connectors;
Has female to female, female to jack, female to male, female to plug, female to sexless, male to female, male to jack, male to male, male to plug or male to sexless gender combinations;
Has straight or right angle versions;
Has bulkhead, 4 hole panel or mountless configurations;
Has 50ohm or 75ohm impedance;
BNC adaptors are miniature, lightweight and reliable;
Has standard or high performance designs.

Brand:
ROHO
Product Origin:
China
Shipping Port:
Shenzhen
Lead Time:
7-17days

Inquiry Now

Product Detail

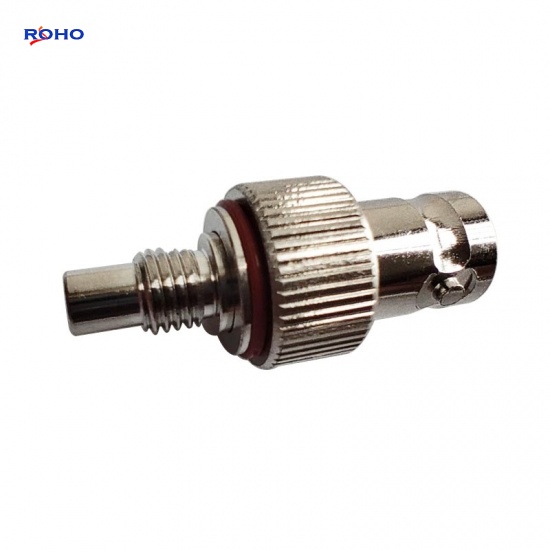

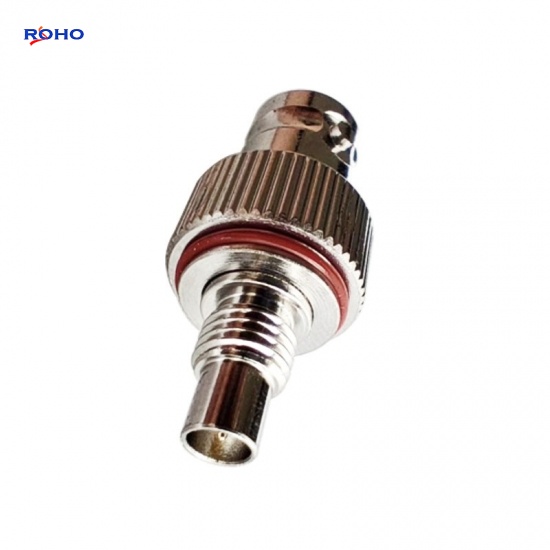

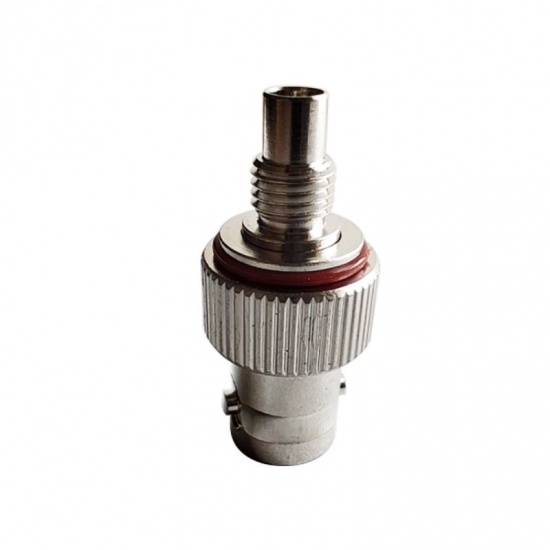

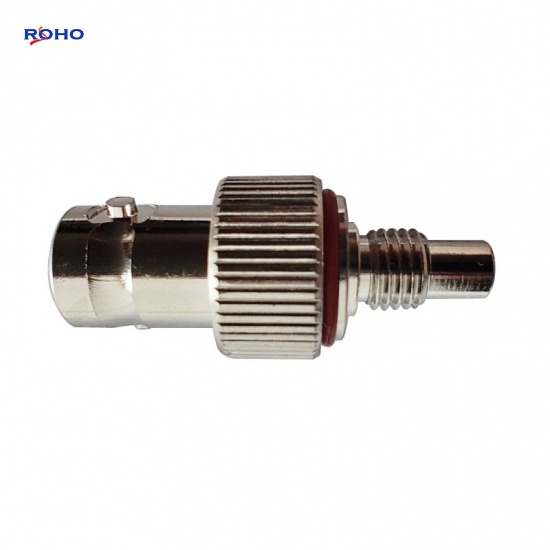

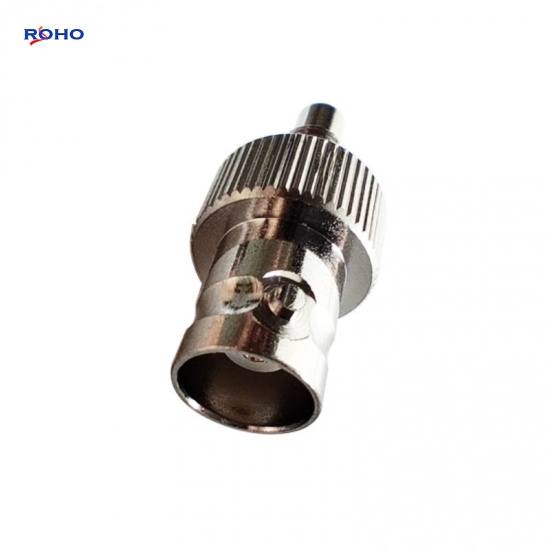

BNC Female to Mx Thread Test Antenna Adapter for Motorola Walkie Talkie HT600 P200 SP10 GP2000 GP68

The BNC Adapter has different BNC to screw-in antenna adapter, Screw-in antenna adapter for Motorola P50, P110, GP300, GP340, GP350, HT750, HT1250, HT1550, EX500, and EX600 radios. Needed to use car mount antennas with listed radios. Motorola part number 5885705M02. BNC output mates with car antenna coax. This BNC female to Mx thread test antenna adapter has a maximum frequency of 300MHz, and is a straight body adapter.

Specifications

ELECTRICAL DATA
Adapter Side 1 Series	BNC
Adapter Side 1 Style	Female
Adapter Side 2 Series	Mx Thread Test Antenna
Adapter Side 2 Style	Plug
Frequency (Max MHz)	300
Impedance (Ohms)	50
Low PIM	No
Orientation	Straight
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
ELECTRICAL DATA
Body Material	Brass
Body Finish	Nickel/Ternary alloy
Contact Material	Phosphor Bronze/Beryllium Copper
Contact Finish	Gold/Silver
Insulator Material	PTFE

Applications

Suitable for Antennas
Broadcast, Radios
Wi-Fi, Telecom,LMR
Wireless LAN Devices, CCTV
Microwave Applications and Digital Communication System
