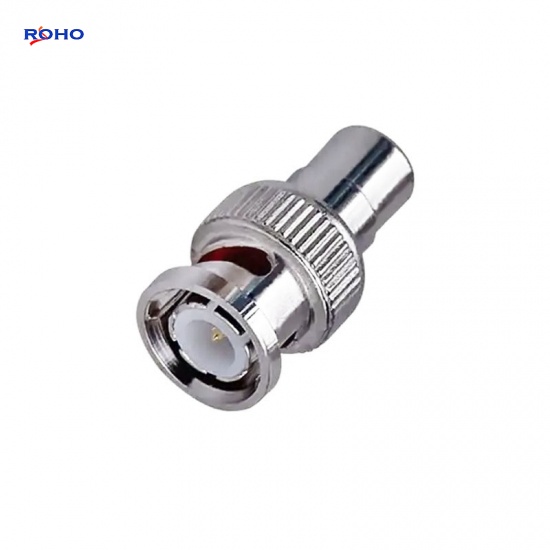

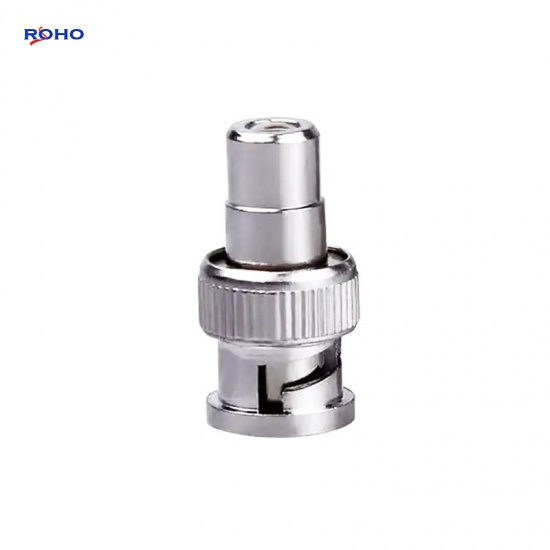

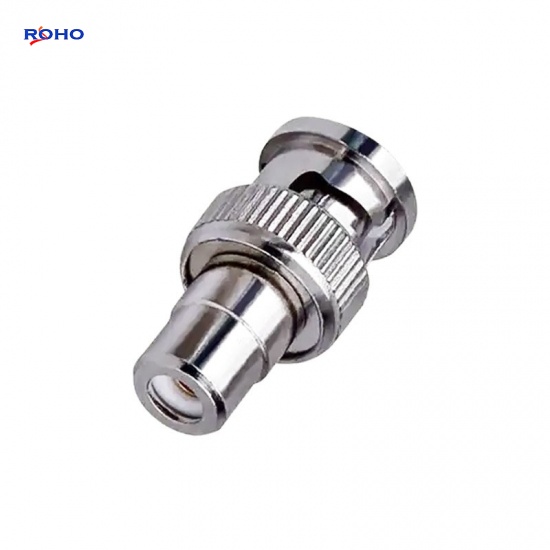

BNC Male PL259 to RCA Jack Female Straight Push-On Adapter for CCTV Surveillance Camera
The BNC Adapter has different BNC to RCA adapter gender, is a between series coaxial adapter. The BNC to RCA adapters has female to jack, female to plug, male to jack or male to plug gender designs. it has straight body. ROHO's BNC to RCA adapters offers standard or high performance designs. This BNC male to RCA jack adapter has a maximum frequency of 250MHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | BNC |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | RCA |
| Adapter Side 2 Style | Jack |
| Frequency (Max MHz) | 250 |
| Impedance (Ohms) | 75 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| ELECTRICAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Suitable for Antennas
- Broadcast, Radios
- Wi-Fi, Telecom,LMR
- Wireless LAN Devices, CCTV
- Microwave Applications and Digital Communication System
