MCX Cable Assemblies

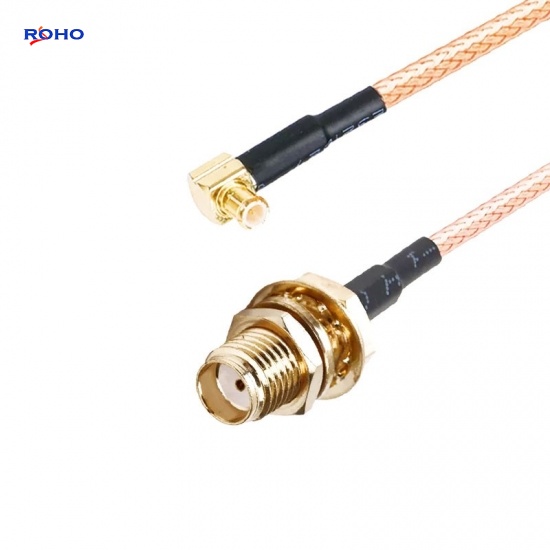

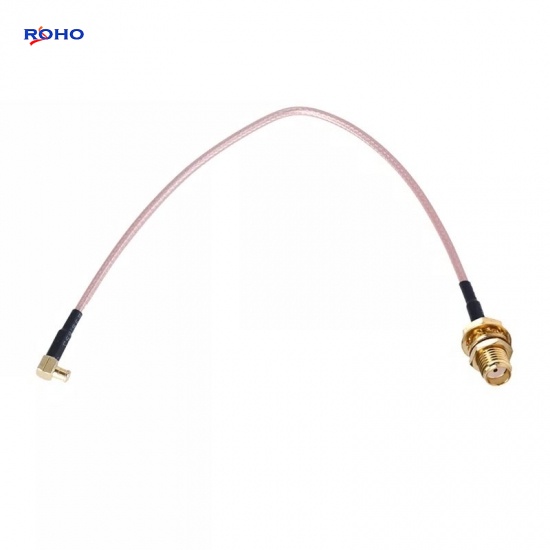

Cable Assemblies Manufacturer MCX Plug Right Angle to SMA Female Bulkhead Connector Assembly with RG316 Cable

MCX Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, N, SMA, TNC or U.FL connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible or formable cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Cable Assemblies Manufacturer MCX Plug Right Angle to SMA Female Bulkhead Connector Assembly with RG316 Cable



The MCX cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as RG174, RG178, RG188, RG196, RG316 or RG400 cable; the body of  MCX to SMA cable assembly is right angle or straight connectors which is plug to male, jack to male, jack to female or plug to female gender. This MCX plug to SMA female assembly uses a 50ohm right angle MCX for connector 1 and a 50ohm straight SMA for connector 2, Cable is 50ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series MCX
Connector 1 Style RA Plug
Cable Type RG316
Connector 2 Series SMA
Connector 2 Style Str Female
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Aerospace,Defense
  • Telecom,Broadcast
  • Industrial,Medical
  • Instrumentation
