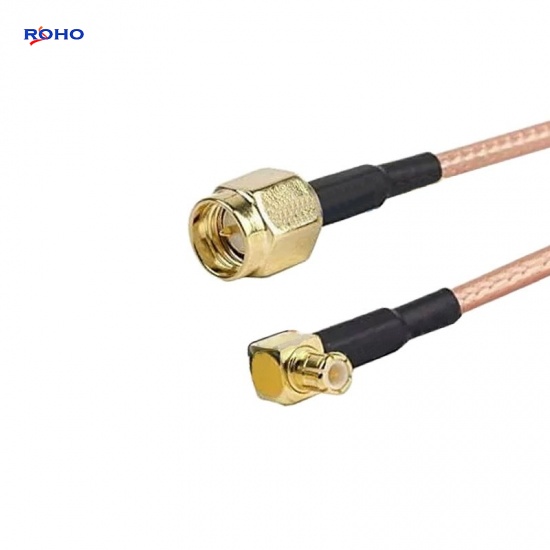

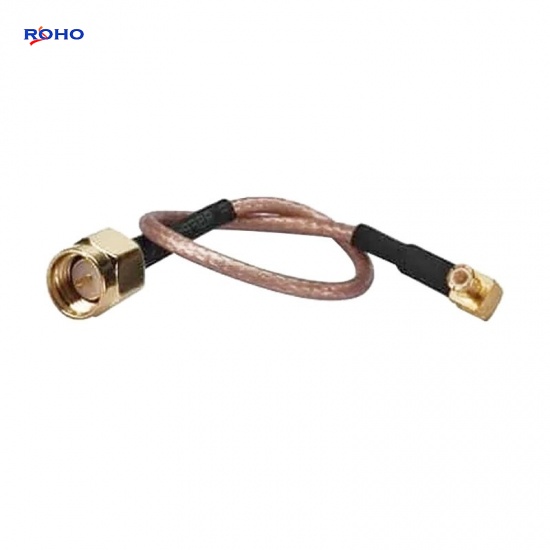

RF Cable Assembly MCX Male Plug Right Angle to SMA Male Connector Cable Assembly with RG316 Pigtail Cable
The MCX cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as RG174, RG178, RG188, RG196, RG316 or RG400 cable; the body of MCX to SMA cable assembly is right angle or straight connectors which is plug to male, jack to male, jack to female or plug to female gender. This MCX plug to SMA male assembly uses a 50ohm right angle MCX for connector 1 and a 50ohm straight SMA for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | MCX |
Connector 1 Style | RA Plug |
Cable Type | RG316 |
Connector 2 Series | SMA |
Connector 2 Style | Str Male |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | No |
Max Frequency | 6GHz |
Working Temperature | -65°C to +165°C |
ELECTRICAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy/Gold |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- Aerospace,Defense
- Telecom,Broadcast
- Industrial,Medical
- Instrumentation
