FAKRA Connectors

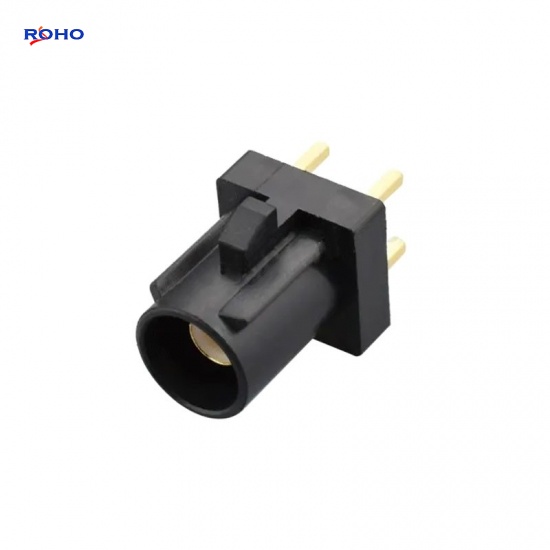

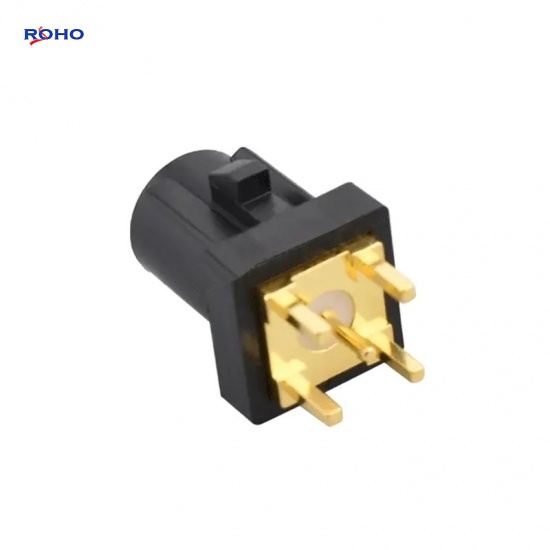

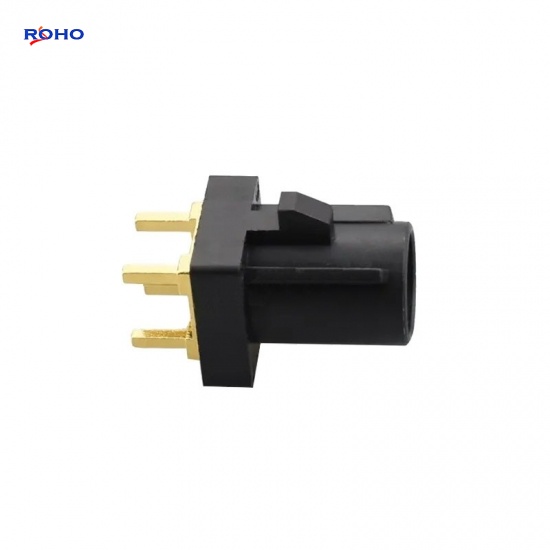

China Supplier Black FAKRA A Plug Male Short Straight Solder Connector for PCB

Fakra features

  • Can terminate to coax or PCB (printed circuit board);
  • Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be crimp/solder or solder;
  • Attachment methods include crimp/solder or solder;
  • Body is plastic.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

China Supplier Black FAKRA A Plug Male Short Straight Solder Connector for PCB

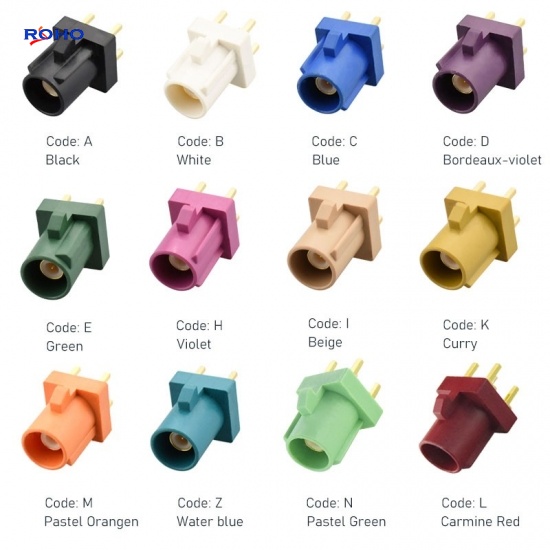

Fakra connector is one of the auto parts. That is widely used in GPS, Remoto control, car phone, car TV. hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked ,fool-proofing assembly with color and the structure. (fourteen code).The connector is be protected by the cap. Easy to assembly. Many difference bettween the connector and the cap, frequency max up to 4GHz; this FAKRA A plug coaxial connector has an interface type of PCB and a 50ohm impedance, attachment method uses solder, its straight body is plastic.



Specifications

ELECTRICAL DATA
Insertion Loss 0.25dB
Characteristic  impedancd 50Ω
 Frequency range 0~4GHz
Working voltage 335V
VSWR 1.3
Insulation Resistance 1000MΩ
Dielectric Withstanding voltage 1000V
Contact resistance  20mΩ
MECHANICAL DATA
Plastic housing retention force 100N
Cable retention force 120N
Temperature Range −40°C to +105°C
Solder version to 200℃/60s
Solder version SND to 260℃/60s
Material And Plating
Plastic housing P.A
Female center contacts Bronze
female and male body &center contact Brass or Zinc Alloy
Insulators PTFE



Applications

  • Global Positioning Satellite
  • Automotive
  • Satellite Radio
  • Bluetooth
  • Remote Vehicle Diagnostic
  • Infotainment Systems
