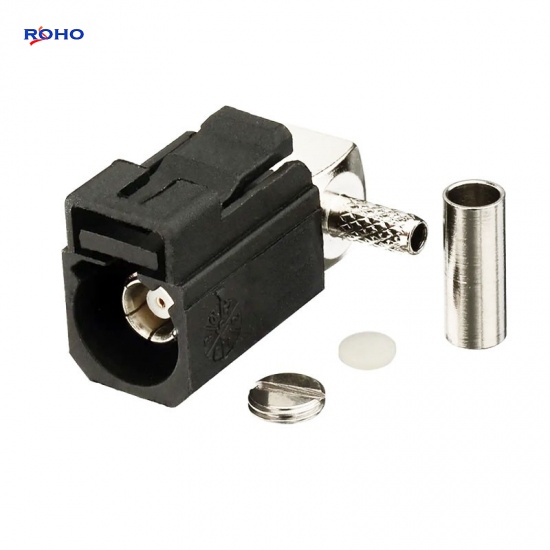

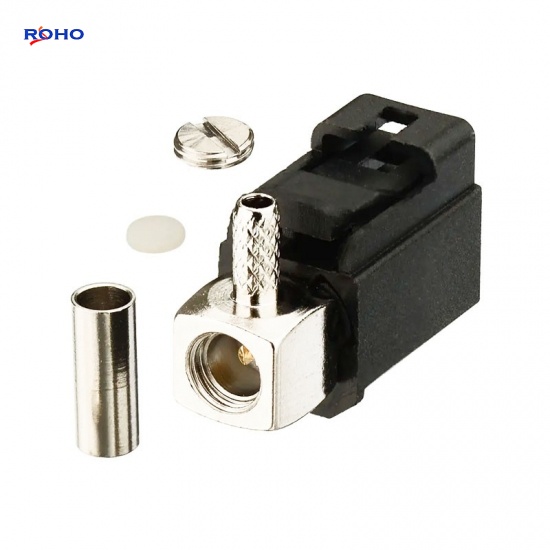

China Supplier FAKRA A Jack Female Right Angle Connector Crimp Solder Attachment for RG174 Cable
Fakra connector is one of the auto parts. That is widely used in GPS, Remoto control, car phone, car TV. hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked ,fool-proofing assembly with color and the structure. (fourteen code).The connector is be protected by the cap. Easy to assembly. Many difference bettween the connector and the cap, frequency max up to 4GHz; this FAKRA A jack right angle coaxial connector has an interface type of RG174 and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is plastic.
Specifications
| ELECTRICAL DATA | |
| Insertion Loss | ≤0.25dB |
| Characteristic impedancd | 50Ω |
| Frequency range | 0~4GHz |
| Working voltage | ≤335V |
| VSWR | ≤1.3 |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding voltage | ≥1000V |
| Contact resistance | ≤20mΩ |
| MECHANICAL DATA | |
| Plastic housing retention force | ≥100N |
| Cable retention force | ≥120N |
| Temperature Range | −40°C to +105°C |
| Solder version | to 200℃/60s |
| Solder version SND | to 260℃/60s |
| Material And Plating | |
| Plastic housing | P.A |
| Female center contacts | Bronze |
| female and male body ¢er contact | Brass |
| Insulators | PTFE |
Applications
- Global Positioning Satellite
- Automotive
- Satellite Radio
- Bluetooth
- Remote Vehicle Diagnostic
- Infotainment Systems
